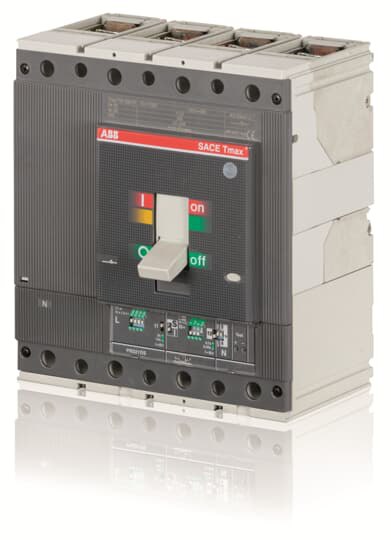

ABB 1SDA054400R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T5N 630 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 630T5N 630 PR221DS-LS/I In=630 4p F F
ABB 1SDA054400R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 5000 cycle60 cycles per hour
- Mechanical Durability
- 20000 cycle120 cycles per hour
- Number of Poles
- 4
- Power Loss
- at Rated Operating Conditions per Pole 41 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 630 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA
- Rated Uninterrupted Current (Iu)
- 630 A
- Release
- PR221DS-LS/I
- Release Type
- EL
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- T5
- Suitable For
- T5
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Test Voltage at Industrial Frequency for 1 Minute
- 3500 V
- Test Voltage Max (Utest)
- 3500 V
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 103.5 mm
- Product Net Height
- 205 mm
- Product Net Weight
- 6.052 kg
- Product Net Width
- 186 mm
Environmental
- Environmental Information
- 9AKK10103A1056 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 1ef62038-466e-4d5e-b297-673d2e08d94f Italy (IT)
- Simplified SCIP
- 1ca37dcb-611e-484a-a73d-b137838d1c36 Poland (PL)dbc2b372-a6a7-4903-9002-f9c44728f0a2 Norway (NO)d531713f-186b-435b-84bd-2af829758494 Denmark (DK)42bfcc89-144e-41c6-a511-e3cde4acd778 Netherlands (NL)7b42b3a4-1727-45f6-a014-61531e263a8b Germany (DE)5409184a-6d2b-4b76-b33f-60a8dd823c94 Germany (DE)449a9922-30c3-48f2-b72a-ac7c96c21e62 Croatia (HR)2db76d3b-a45e-4e49-880d-70800bd35a5b Czech Republic (CZ)b187ca6f-00b7-4de0-a87d-4d33a9703e42 Poland (PL)c8ff1953-228b-4329-94dc-4f8dcdef97ed Netherlands (NL)4d3ce60b-f2f2-4b1b-ba7e-c376436120e7 Netherlands (NL)2efb4ef8-9ba0-40ca-8067-c9eede81c47d Estonia (EE)731d6b4d-e257-428f-9232-6b4701f470ae Greece (GR)3a26f9ba-25f3-45a8-952c-602bbbfff1dc Portugal (PT)a950f9d9-2214-4375-86cf-96801050a0c5 Bulgaria (BG)454df9a4-676d-4e0a-a7d3-40d58da0b2f8 Sweden (SE)0f09f243-7e90-4dbd-b923-b8147efab4a4 Poland (PL)154a4345-cd14-4ed2-97b9-58ac5f37512c France (FR)cde03c5b-6921-42d6-be32-3f4ac825164b Sweden (SE)bb580d1b-d0c3-4ff0-84c2-206eca2cfe18 Germany (DE)807cbaee-bb31-4be8-a198-5b7603ecb764 Germany (DE)79759be1-6421-4b60-8692-28b16b58b5f5 France (FR)59290b0b-c293-40bd-8925-c5103ea8b5b1 Netherlands (NL)128ffab2-733d-4c61-ad74-9487f38c905e Spain (ES)fec609bd-f976-4cfb-8abf-61d483fbfcfa Netherlands (NL)f9a25847-74fb-4872-b41b-a6131ac55e06 Finland (FI)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3655338
- E-Number (Sweden)
- 3180378
- Minimum Order Quantity
- 1 piece
