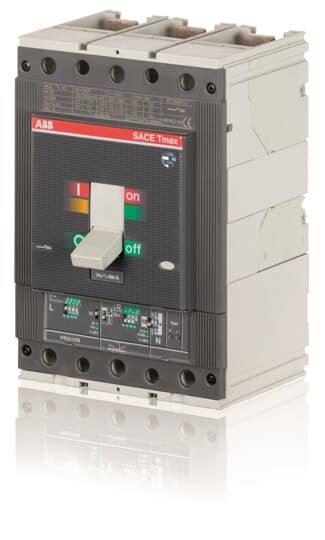

ABB 1SDA054333R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T5S 400 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 400T5S 400 PR221DS-LS/I In=400 3p F F
ABB 1SDA054333R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 7000 cycle60 cycles per hour
- Mechanical Durability
- 20000 cycle120 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 16.5 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 400 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 40 kA(500 V AC) 30 kA(690 V AC) 25 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 5 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 40 kA(500 V AC) 30 kA(690 V AC) 25 kA
- Rated Uninterrupted Current (Iu)
- 400 A
- Release
- PR221DS-LS/I
- Release Type
- EL
- Short-Circuit Performance Level
- S
- Standards
- IEC
- Sub-type
- T5
- Suitable For
- T5
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Test Voltage at Industrial Frequency for 1 Minute
- 3500 V
- Test Voltage Max (Utest)
- 3500 V
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 103.5 mm
- Product Net Height
- 205 mm
- Product Net Weight
- 4.824 kg
- Product Net Width
- 140 mm
Environmental
- Environmental Information
- 9AKK10103A1056 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 7c045d10-8e03-4414-ab79-e3009f84044c Italy (IT)
- Simplified SCIP
- bf9eb4d7-8d78-41a5-9b42-5c869a3b2b2f Germany (DE)6b9a629b-831b-4a76-b046-e32092a6ba55 Sweden (SE)24979efa-4a7a-4dcd-bdce-79e83b48cdff France (FR)d554ba54-8a94-419c-97cd-87633359d5a2 Netherlands (NL)6dc853a3-90fa-4e71-b439-dde23255e4c9 Netherlands (NL)cbe692d1-84d0-4afd-b2b6-5ac4f07c0f59 Spain (ES)5506b7d9-b9ba-40e8-90fb-8a51e35b5e41 Poland (PL)e1cf3b32-eaf0-49f5-bb9d-8fafa46bbfa2 Netherlands (NL)00c8d4f7-59b2-4d5a-b465-bd5be1879ecc Finland (FI)45aa3f50-e72f-4a0c-9241-c8aab0df4b3d Sweden (SE)662643ca-3b5d-4a24-9e3b-d00650a70c01 Poland (PL)200c67fb-e5fd-466a-90c3-f3ee38219b01 France (FR)4b0d553e-ef9c-42a4-9b04-0ba7f1ffb6f2 Germany (DE)d9bdee1c-3401-4c23-bc59-a45f09634719 Germany (DE)49384911-ce92-4f7c-ab9d-7ac1083782c5 Czech Republic (CZ)4684ad20-2b1a-4c56-a476-9c392081da6e Croatia (HR)beaa7d3e-9efe-485b-a564-57c7ebe30740 Denmark (DK)38caad91-a665-41fc-ad0c-23274740da0e Germany (DE)9b04c1b0-ef7a-444c-a765-0666e7b3daf7 Netherlands (NL)6f1fcc90-eb80-4bc3-9bbb-8f9ed686f97f Netherlands (NL)1d5c9988-eec6-44ae-91b6-9f1d11a19d02 Poland (PL)1bff3709-0730-499c-898a-1edd97dbfc6b Greece (GR)dd171885-866a-40b7-848f-ba253ddb6e54 Estonia (EE)3a381d9c-8d4f-4c34-a0cf-74b5d57938ff Bulgaria (BG)5a092fab-039b-4c71-b4e2-c7f181b31a42 Portugal (PT)0a83005f-2261-4808-94bd-5a678d5dacab Norway (NO)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3655325
- E-Number (Sweden)
- 3180383
- Minimum Order Quantity
- 1 piece
