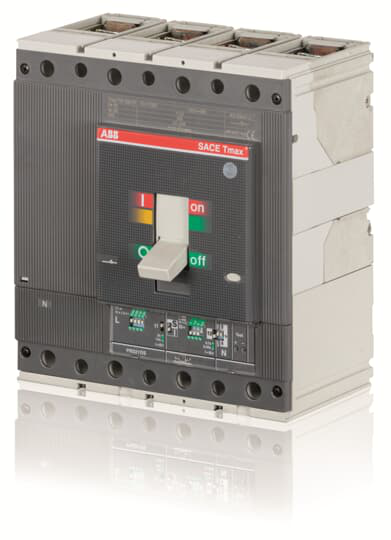

ABB 1SDA054325R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T5N 400 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 400T5N 400 PR221DS-LS/I In=400 4p F F
ABB 1SDA054325R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 7000 cycle60 cycles per hour
- Mechanical Durability
- 20000 cycle120 cycles per hour
- Number of Poles
- 4
- Power Loss
- at Rated Operating Conditions per Pole 16.5 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 400 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 5 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA
- Rated Uninterrupted Current (Iu)
- 400 A
- Release
- PR221DS-LS/I
- Release Type
- EL
- RoHS Date
- null
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- T5
- Suitable For
- T5
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Test Voltage at Industrial Frequency for 1 Minute
- 3500 V
- Test Voltage Max (Utest)
- 3500 V
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 103.5 mm
- Product Net Height
- 205 mm
- Product Net Weight
- 6.071 kg
- Product Net Width
- 186 mm
Environmental
- Environmental Information
- 9AKK10103A1056 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 2935b078-1f80-4367-b5a2-a1b9f8cba550 Italy (IT)
- Simplified SCIP
- fc0e6e41-de01-49d5-9d31-6286f7347665 Bulgaria (BG)c48f653d-cda6-4b24-8ec2-803d7db7a693 Sweden (SE)d718fe9a-8963-456d-a784-19aba4bad579 Poland (PL)f91da64b-d2cf-47c7-b5ef-fa8a07436ef8 France (FR)1bf2e421-6108-430c-a3cb-9bc71d5634eb Sweden (SE)213a51e0-ed59-405c-8df0-03913368c86c Germany (DE)0d251d5f-f929-4437-b109-3de4f17e65f3 Netherlands (NL)a6c86426-0807-47d2-8f31-33da5cb4b0a2 Spain (ES)a958aeb5-841b-40ce-b0a8-c1dc5af1900a Netherlands (NL)a3e357fd-0c01-4491-bd84-86bc58af3712 Germany (DE)e0a9c434-216a-490a-be2a-28a6db152f4b France (FR)523b062e-92b2-4d16-9b63-88a1917bc274 Germany (DE)412bb1f8-b6da-4300-b24a-c3e493e1bebc Denmark (DK)e1b53a48-8a68-4707-8e0d-5a1a063901f5 Germany (DE)c5a4d480-967b-4bec-88d6-9e90073d2ed6 Croatia (HR)af2f56eb-e845-4aa2-a4ea-c7890f01c0ca Czech Republic (CZ)ad272606-3546-4498-8127-932d3d4f70e4 Poland (PL)e2e5cc3d-60cd-46a6-b5ae-8ac5ba8ffca7 Netherlands (NL)ca36c3d4-53c3-41fe-a310-2b54e2fdf02a Netherlands (NL)3f4131a8-68bf-4fff-b1bb-96155cce16bf Estonia (EE)0be78355-1640-4e85-a949-46734a79232a Greece (GR)6fdc8665-8d81-4b8a-a929-65fa3acfa677 Portugal (PT)d536e7ee-7731-42e8-bfbb-f1a0158a8218 Finland (FI)ba3f5112-b4fa-40d9-8421-62a8c2e2caf2 Netherlands (NL)bd12f981-1220-46ec-bdbf-ba4be40878ba Poland (PL)260906e1-ec8e-460f-b420-b33416132d92 Norway (NO)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3655337
- E-Number (Sweden)
- 3180377
- Minimum Order Quantity
- 1 piece
