ABB 1SDA054324R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

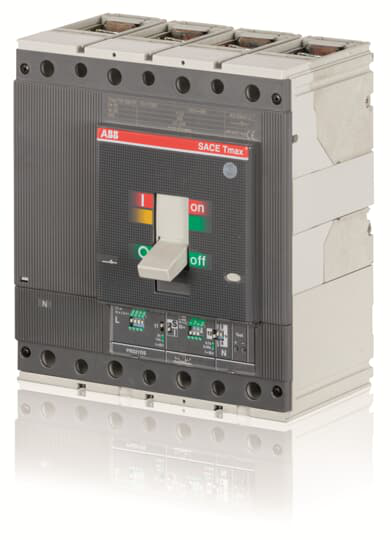

C.BREAKER TMAX T5N 400 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 320T5N 400 PR221DS-LS/I In=320 4p F F
ABB 1SDA054324R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 7000 cycle60 cycles per hour
- Mechanical Durability
- 20000 cycle120 cycles per hour
- Number of Poles
- 4
- Power Loss
- at Rated Operating Conditions per Pole 10.6 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 320 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 5 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA
- Rated Uninterrupted Current (Iu)
- 400 A
- Release
- PR221DS-LS/I
- Release Type
- EL
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- T5
- Suitable For
- T5
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Test Voltage at Industrial Frequency for 1 Minute
- 3500 V
- Test Voltage Max (Utest)
- 3500 V
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 103.5 mm
- Product Net Height
- 205 mm
- Product Net Weight
- 6.2 kg
- Product Net Width
- 186 mm
Environmental
- Environmental Information
- 9AKK10103A1056 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 942c8f6e-c737-4c71-9ec0-53435540f4f1 Italy (IT)
- Simplified SCIP
- 2621458a-7cb1-4e44-9339-2889444af8e5 Norway (NO)663b45cc-d6b6-494f-aa53-852b5ab8bee8 Netherlands (NL)0e82c4d6-53b6-4f85-8f08-831b6d8d7580 Poland (PL)7c3e289e-19e2-402e-9c27-325c9c15ffdc Germany (DE)147b30d4-fb18-4045-a452-de4d4226e06b Germany (DE)65b3af10-ca94-476e-9e5b-656d9fb5a0db France (FR)81a9bbdd-4753-49a0-a17d-6c34be453c19 Denmark (DK)1d3cef6c-3280-4f74-b426-cfa8e674dc3a Germany (DE)606b6189-8d2b-4f64-be9e-2b58259b70f2 Czech Republic (CZ)7a8c5233-f1ed-4179-8182-1db49a671569 Croatia (HR)27c5f998-7f5b-48d0-8355-29c2dbeb2b7d Poland (PL)0ec071be-1c8e-43bd-9f8d-b6ee3093b5d9 Netherlands (NL)9750309c-9fcd-46d5-8524-7b0f231c3f7b Netherlands (NL)b2295b08-9ea8-492e-97a0-1976d8368156 Estonia (EE)0ad37cc0-18f4-4b90-89e5-d9b587df21e8 Greece (GR)7d83de72-f497-4743-bbfd-745dab36ba91 Portugal (PT)3b286cf6-3b68-493e-b94e-d08a84c3dc1a Bulgaria (BG)f273b749-2c92-4476-9e9e-8d8cf84437fb Sweden (SE)fc23117f-8a3d-41f5-813c-72681e4bcbbc Poland (PL)6d30586d-c7d5-4c8e-837b-748631db0155 Netherlands (NL)bf05e7bf-ba44-422a-bddd-c8192af105ed Spain (ES)c15d8ef4-d215-4bf1-bfcb-9569947fc511 Netherlands (NL)1544995c-c991-45c8-96a4-69d0e33b49a8 Finland (FI)33f805fc-5af4-4408-a13b-42424a136c21 France (FR)3afa97f1-a3c5-4254-9218-08a4a46d497b Sweden (SE)74e9aa82-664a-4aa3-b2c2-f08c94f74f5d Germany (DE)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3655336
- E-Number (Sweden)
- 3180376
- Minimum Order Quantity
- 1 piece
