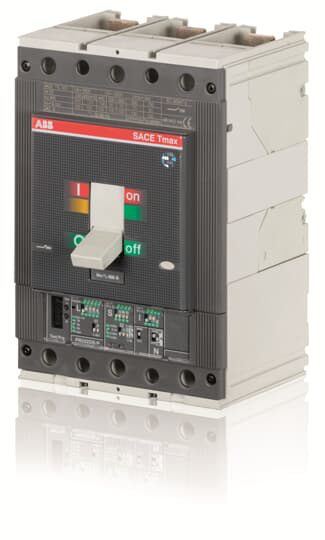

ABB 1SDA054321R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T5N 400 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR222DS/P-LSI R 400T5N 400 PR222DS/P-LSI In=400 3p F F
ABB 1SDA054321R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 7000 cycle60 cycles per hour
- Mechanical Durability
- 20000 cycle120 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 16.5 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 400 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 5 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA
- Rated Uninterrupted Current (Iu)
- 400 A
- Release
- PR222DS/P-LSI
- Release Type
- EL
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- T5
- Suitable For
- T5
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Test Voltage at Industrial Frequency for 1 Minute
- 3500 V
- Test Voltage Max (Utest)
- 3500 V
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 103.5 mm
- Product Net Height
- 205 mm
- Product Net Weight
- 4.837 kg
- Product Net Width
- 140 mm
Environmental
- Environmental Information
- 9AKK10103A1056 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- af88f8b5-79fa-4480-b8a9-6b853f53ae11 Italy (IT)
- Simplified SCIP
- bf785422-47d3-4086-b249-8c5e21e30a13 France (FR)e5b6ffb5-8398-454c-819c-8028820bb864 Germany (DE)7ed76dba-95ab-4999-bcf6-78176e270940 Portugal (PT)b9442fe2-45ac-4b94-9c8a-b25b4abc5ecf Greece (GR)c1fa56ee-535b-4a6e-afdc-5f5f03621666 Netherlands (NL)5a3fea8f-ab6d-4492-8dfc-1e3e9c188cef Estonia (EE)771e36d5-b98c-44f8-b92f-d83f39757b33 Poland (PL)7e3ded72-7b22-466d-ab2f-baa0dd22d8e5 Netherlands (NL)1a653170-dd5f-45ef-a49e-d3a1a88c0018 Croatia (HR)134e0c6c-177b-4409-8452-d92e090b0e92 Czech Republic (CZ)c0a85d76-d797-4c92-bb48-b149b2a56250 Denmark (DK)abcb0f79-af49-4e23-a6da-c195da9cbfef Germany (DE)73b85ab6-a2fe-4e46-8da8-1f880758eb97 Sweden (SE)73cb868c-e38d-436c-97ae-f5d64b5d8868 Poland (PL)3e149121-01bf-4c6c-a710-89b57ce77383 France (FR)6ef3672d-2a25-446f-8ba4-aa377cfcd8f2 Bulgaria (BG)96b28ac4-73f9-4d0e-a93c-2a193c179cc3 Norway (NO)5c18e38f-04d4-415a-8762-f9f8d53da86d Netherlands (NL)2fe6b203-0532-4b54-aee4-4610d09d8624 Poland (PL)72be55eb-9622-41e1-97d3-b918802b4412 Netherlands (NL)23e219aa-c665-451f-9208-3948e0c4bbf7 Spain (ES)a7a21357-3b3f-4892-a06f-5f88ea419b3f Sweden (SE)59a35d06-bde3-4412-a5f2-608329975056 Germany (DE)eb2a9ae4-4c9a-48e7-8437-d713d9946e9e Netherlands (NL)fe043ad5-ab7b-43bc-8983-01700dbc0abf Germany (DE)2f509fc6-e1a7-42db-85ed-b55c50d33f20 Finland (FI)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3655352
- Minimum Order Quantity
- 1 piece
