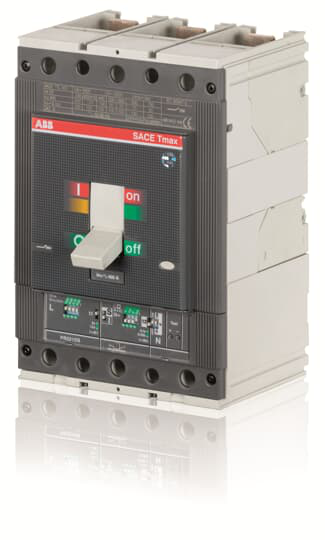

ABB 1SDA054317R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T5N 400 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 400T5N 400 PR221DS-LS/I In=400 3p F F
ABB 1SDA054317R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 7000 cycle60 cycles per hour
- Mechanical Durability
- 20000 cycle120 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 16.5 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 400 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 5 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA
- Rated Uninterrupted Current (Iu)
- 400 A
- Release
- PR221DS-LS/I
- Release Type
- EL
- RoHS Date
- null
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- T5
- Suitable For
- T5
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Test Voltage Max (Utest)
- 3500 V
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 103.5 mm
- Product Net Height
- 205 mm
- Product Net Weight
- 4.841 kg
- Product Net Width
- 140 mm
Environmental
- Environmental Information
- 9AKK10103A1056 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- ffcff8e1-1e15-4045-b110-029e430df21c Italy (IT)
- Simplified SCIP
- 96ff4660-b874-4868-a11a-d96a7025b90f Poland (PL)bb4a903a-50dd-47e5-af58-5ae679840f52 Norway (NO)a6bef035-b65b-4cfa-ba51-170d19ce2de8 Finland (FI)10aa297b-7b60-4f9f-92df-7cb2b3cb20ce Netherlands (NL)adf4165e-1a2e-43bb-9de3-ae05fac8d3a0 Germany (DE)48002a16-3784-481e-8dd0-c9fe4c0c231d Denmark (DK)5819564d-a2c9-4689-a2fd-59815b7d7fb7 Germany (DE)f5485f2d-5b1a-46b2-8398-8e2814299128 Croatia (HR)88cecd91-7856-4f87-bdaf-36b0a02d4cf8 Czech Republic (CZ)ffd4b3e9-98ab-4357-a700-3b47caa89be1 Poland (PL)9b3abc6c-ff8a-4e0a-9182-cd5e080d022d Netherlands (NL)af120bb3-6de7-40bb-a3d6-2f0b9dd7e86b Netherlands (NL)a87f2e6e-e9fa-403e-a203-4542c7d1007c Estonia (EE)4dbbfe52-dee3-48b9-9cc6-ffda126592d0 Greece (GR)00d23e9d-d0a0-4e57-a017-6b46c3f858a0 Portugal (PT)25b79952-ccfb-4262-904e-11cb0b1fb7d3 Bulgaria (BG)08bef078-5447-458e-bb82-9387561de0db Sweden (SE)9d41c0e3-bc2c-4c02-8cbc-465366ba6c95 Poland (PL)f7762064-324e-478f-a895-20aa9e0a2e9a France (FR)729c8f2d-09a2-45a2-ba8e-753b04e86a51 Sweden (SE)91632a54-2b31-46b5-8cd0-1d7c42a23379 Germany (DE)b6ceeb76-a7e8-4ef6-b9ca-adb4a9ec937f Germany (DE)49861b2b-16cf-4ad5-a815-586f51823b2e France (FR)fdda8ad4-fcda-4cfd-8a88-419bdb982a22 Netherlands (NL)5e57bf17-2af6-495c-8ec6-5f75f0b91d14 Spain (ES)90381331-9a08-4cef-8e5c-850e9dc9038d Netherlands (NL)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3655322
- E-Number (Sweden)
- 3180373
- Minimum Order Quantity
- 1 piece
