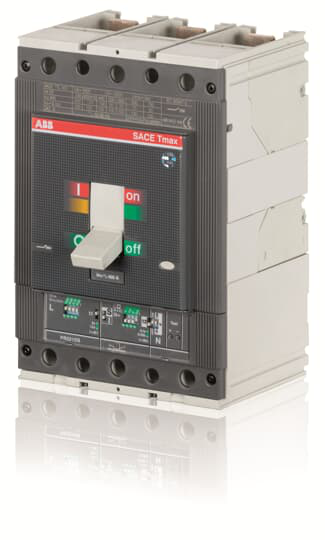

ABB 1SDA054316R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T5N 400 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 320T5N 400 PR221DS-LS/I In=320 3p F F
ABB 1SDA054316R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 7000 cycle60 cycles per hour
- Mechanical Durability
- 20000 cycle120 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 10.6 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 320 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 5 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA
- Rated Uninterrupted Current (Iu)
- 400 A
- Release
- PR221DS-LS/I
- Release Type
- EL
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- T5
- Suitable For
- T5
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Test Voltage at Industrial Frequency for 1 Minute
- 3500 V
- Test Voltage Max (Utest)
- 3500 V
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 103.5 mm
- Product Net Height
- 205 mm
- Product Net Weight
- 4.849 kg
- Product Net Width
- 140 mm
Environmental
- Environmental Information
- 9AKK10103A1056 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- b5040a8e-11bf-4959-8f69-1cc18a74d4af Italy (IT)
- Simplified SCIP
- f42fb22c-d9f1-4e0f-bd3d-5a6353b18f93 Finland (FI)1c12fb89-a4a1-4316-8555-066b78073c90 Netherlands (NL)37efdf1a-5a34-41b2-9ebf-521666f49301 Norway (NO)4e1816c9-8807-4a55-8308-150907ccb6b9 Poland (PL)9f788c3f-620b-462b-a7f6-8dd62af6466b Bulgaria (BG)ce4d2727-260c-45b8-9a8d-856b8e736351 Sweden (SE)9a90d430-a99d-490a-b4ad-765ccb9f2cbc Poland (PL)ad1e7d85-518d-4cab-a666-b6e6c8d96f16 France (FR)949b5e35-294e-484f-8120-26909467804f Sweden (SE)b03e65c2-4054-43a8-af1b-bdee7e65b012 Germany (DE)855246ee-eca9-467a-bd8e-193396cd3ff1 Netherlands (NL)1583b4f7-0b77-4ec1-87ef-4329399842b6 France (FR)8d84c911-02d1-4994-b68a-da3984d10dbf Germany (DE)29569852-82a4-4521-ab51-2a575645d8f8 Denmark (DK)d8c15d73-3e04-45ad-a630-8e3b9a093202 Germany (DE)ba64458d-be8a-4415-bf2e-53a6f5a506e5 Croatia (HR)0b5d7f3d-a064-45cd-ae10-519ea917a0b8 Czech Republic (CZ)04a6bde6-1c2e-4464-ada9-e3b43750be76 Poland (PL)c6999f81-8785-4432-9bc9-7d5f0249c9c6 Netherlands (NL)7236dc59-b45f-4fad-a41d-29e12d5c5e72 Netherlands (NL)4e85622e-fece-4a0d-94c4-59dd08c64abe Estonia (EE)83237862-f020-4401-909c-6c04a8af144e Greece (GR)a38b14c1-047c-4603-ad8a-cd8ee5fbd751 Portugal (PT)4b1739b6-3b14-459d-8b23-3936d5869c4a Spain (ES)cc55fd44-c0dc-4457-add2-1bf920cf0fe0 Netherlands (NL)f1fb38f6-683a-4c10-b21b-e2538d819f5a Germany (DE)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3655321
- E-Number (Sweden)
- 3180372
- Minimum Order Quantity
- 1 piece
