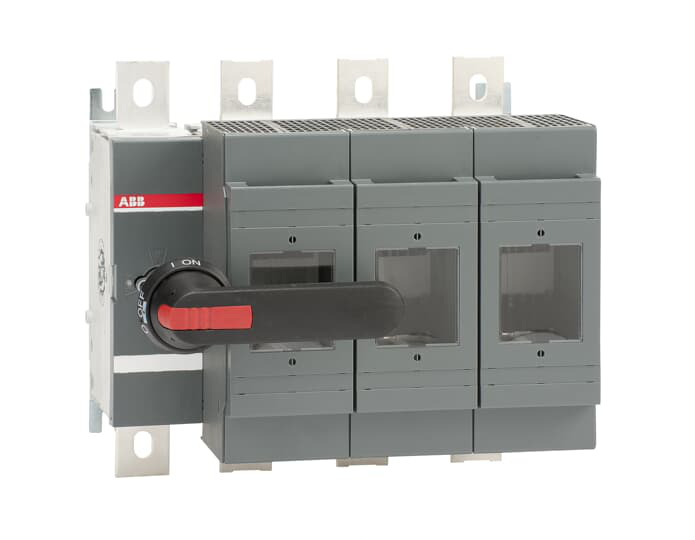

ABB 1SCA100858R1001
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Switch Fuses,Front Operated,4-pole,03 (Left Side),DIN,3,Handle and shaft included,Detachable Neutral Link Integrated Into the MechanismOS630D03N3P SWITCH FUSE
ABB 1SCA100858R1001 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- REACH Declaration
- 1SCC011021D0201
- RoHS Information
- 1SCC011020D0201
Classifications
- eClass
- V11.1 : 27371401
- ETIM 9
- EC001040 - Fuse switch disconnector
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 233 mm
- Product Net Height
- 306 mm
- Product Net Weight
- 15.046 kg33.17 lb
- Product Net Width
- 343 mm
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
- Country of Origin
- Finland (FI)
- Customs Tariff Number
- 85365080
- Minimum Order Quantity
- 1 piece
Technical
- Conventional Free-air Thermal Current (Ith)
- Θ = 40 °C 630 A
- Conventional Thermal Current (Ithe)
- Fully Enclosed 570 A
- Fourth Pole Type
- Detachable Neutral Link Integrated Into the Mechanism
- Fuse Size
- NH3
- Fuse System
- DIN
- Handle Type
- Pistol handle and shaft included
- Mounting Type
- Base mounting
- Number of Poles
- 3
- Operating Mode
- Front Operated
- Pollution Degree
- 3
- Position of Line Terminals
- Top In - Bottom Out, Bottom In - Top Out
- Power Loss
- at Rated Operating Conditions per Pole 60 W
- Rated Conditional Short-Circuit Current (Inc)
- (690 V) 80 kA
- Rated Current (In)
- Main Circuit 630 A
- Rated Impulse Withstand Voltage (Uimp)
- 12 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Current AC-21A (Ie)
- (500 V) 630 A(690 V) 630 A
- Rated Operational Current AC-22A (Ie)
- (380 ... 415 V) 630 A(500 V) 630 A(690 V) 630 A
- Rated Operational Current AC-23A (Ie)
- (380 ... 415 V) 630 A(500 V) 630 A(690 V) 630 A
- Rated Operational Power AC-23A (Pe)
- (220 ... 240 V) 200 kW(400 V) 355 kW(415 V) 355 kW(500 V) 450 kW(690 V) 630 kW
- Rated Operational Voltage
- Main Circuit 690 V AC
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 18 kiloampere rms
- Special Functions
- Detachable Neutral
- Standards
- IEC 60947-3
- Switches Operating Mechanism
- 03 (Left Side)
- Terminal Type
- Lug terminals
- Terminal Width
- 39 mm
- Tightening Torque
- 50 ... 75 N·m
Technical UL/CSA
- Tightening Torque
- 50 ... 75 N·m
