ABB 1SCA022871R6090
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

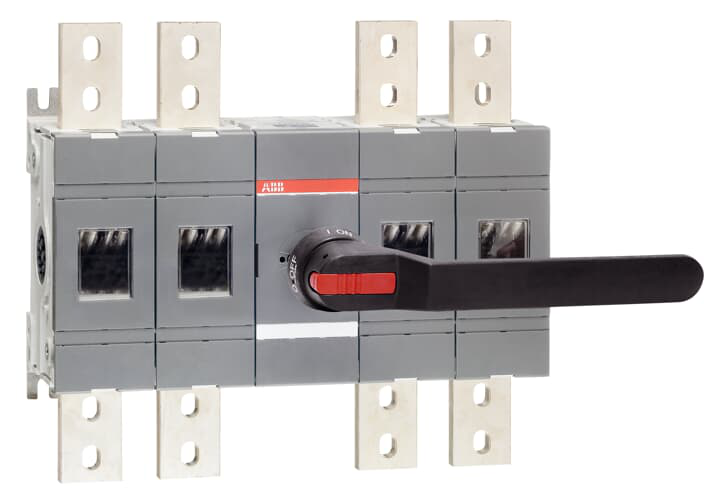

4-pole, front operated, base mounted switch-diconnector with black IP65 handle and shaft, terminal bolt kit includedOT1600E22P SWITCH-DISCONNECTOR
ABB 1SCA022871R6090 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Environmental Information
- 1SCC301233D0201
- REACH Declaration
- 1SCC011021D0201
- RoHS Information
- 1SCC011020D0201
Classifications
- eClass
- V11.1 : 27371403
- E-Number (Finland)
- 3661778
- ETIM 9
- EC000216 - Switch disconnector (low voltage)
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 167 mm
- Product Net Height
- 372 mm
- Product Net Weight
- 22.3 kg
- Product Net Width
- 414.5 mm
Environmental
- Environmental Information
- 1SCC301233D0201
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
- Country of Origin
- Finland (FI)
- Customs Tariff Number
- 85365080
- Minimum Order Quantity
- 1 piece
Technical
- Conventional Free-air Thermal Current (Ith)
- Θ = 40 °C 1600 A
- Conventional Thermal Current (Ithe)
- Fully Enclosed 1600 A
- Degree of Protection
- Front IP00
- Distance Between Phases
- Standard
- Fourth Pole Position
- Right Side
- Fourth Pole Type
- Switched - Simultaneous Function
- Handle Color
- Black
- Handle Type
- Handle and shaft included
- Lock Type
- Yes
- Mechanical Durability
- 6000
- Mounting Type
- Base mounting
- Number of Poles
- 4
- Operating Mode
- Front operated
- Pollution Degree
- 3
- Position of Line Terminals
- Top In - Bottom OutBottom In - Top Out
- Power Loss
- at Rated Operating Conditions per Pole 48 W
- Rated Conditional Short-Circuit Current (Inc)
- (1250 A fuse, 415 V) 80 kA(1250 A fuse, 500 V) 100 kA
- Rated Impulse Withstand Voltage (Uimp)
- 12 kV
- Rated Insulation Voltage (Ui)
- acc. to IEC/EN 60664-1 1000 V
- Rated Operational Current AC-21A (Ie)
- (380 ... 415 V) 1600 A(500 V) 1600 A(690 V) 1600 A(1000 V) 1600 A
- Rated Operational Current AC-22A (Ie)
- (380 ... 415 V) 1600 A(500 V) 1600 A(690 V) 1600 A
- Rated Operational Current AC-23A (Ie)
- (380 ... 415 V) 1250 A(500 V) 1250 A(690 V) 1250 A
- Rated Operational Power AC-23A (Pe)
- (400 ... 415 V) 710 kW(500 V) 900 kW(690 V) 1200 kW
- Rated Operational Voltage
- Main Circuit 1000 V
- Rated Short-Circuit Making Capacity (Icm)
- (690 V) 92 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 50 kA
- Special Functions
- No
- Standards
- IEC 60947-3
- Switches Operating Mechanism
- Mechanism Between the Poles22 (Between the Poles)
- Terminal Type
- Lug terminals
- Terminal Width
- 50 mm
- Tightening Torque
- acc. IEC 60947-1 50 … 75 N·m
Technical UL/CSA
- Tightening Torque
- acc. IEC 60947-1 50 … 75 N·m
