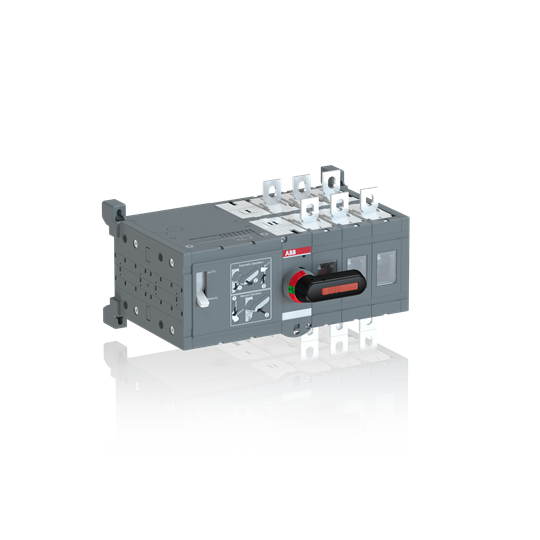

ABB 1SCA022845R8370
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Including a handle for manual operation, bolt kit with nut and washers for all terminals and male connectors for control circuits. Include a storage clip for the handle and spare fuses.OTM250E3CM24D MOTORIZED C/O SWITCH
ABB 1SCA022845R8370 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Environmental Information
- 1SCC303036D0202
- REACH Declaration
- 1SCC011021D0201
- RoHS Information
- 1SCC011020D0201
Classifications
- eClass
- V11.1 : 27371403
- E-Number (Finland)
- 3641731
- ETIM 9
- EC000216 - Switch disconnector (low voltage)
- IDEA Granular Category Code (IGCC)
- 5214 >> Rotary switch
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 197 mm
- Product Net Height
- 150 mm
- Product Net Weight
- 5.6 kg
- Product Net Width
- 273 mm
Environmental
- Environmental Information
- 1SCC303036D0202
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
- Country of Origin
- Finland (FI)
- Customs Tariff Number
- 85365080
- Minimum Order Quantity
- 1 piece
Technical
- Conventional Free-air Thermal Current (Ith)
- Θ = 40 °C 250 A
- Conventional Thermal Current (Ithe)
- Fully Enclosed 250 A
- Degree of Protection
- Front IP20
- Distance Between Phases
- Standard
- Handle Color
- Black
- Handle Type
- Direct mounted handle
- Motor Operational Voltage
- 24 V DC
- Mounting Type
- Base mounting
- Number of Poles
- 3
- Operating Mode
- Front operated
- Pollution Degree
- 3
- Position of Line Terminals
- Top In - Bottom Out, Bottom In - Top Out
- Power Loss
- 6.5 W
- Rated Impulse Withstand Voltage (Uimp)
- 12 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Current AC-21A (Ie)
- (380 ... 415 V) 250 A(500 V) 250 A(690 V) 250 A
- Rated Operational Current AC-22A (Ie)
- (380 ... 415 V) 250 A(500 V) 250 A(690 V) 250 A
- Rated Operational Current AC-23A (Ie)
- (380 ... 415 V) 250 A(500 V) 250 A(690 V) 250 A
- Rated Operational Current AC-31B (Ie)
- (380 ... 415 V) 250 A
- Rated Operational Current AC-33B (Ie)
- (380 ... 415 V) 250 A
- Rated Operational Power AC-23A (Pe)
- (380 ... 415 V) 140 kW(500 V) 170 kW(690 V) 250 kW
- Rated Operational Voltage
- 1000 V
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 8 kiloampere rms
- Switches Operating Mechanism
- Mechanism at the End of the Switch
- Transition Type
- Open
