ABB 1SBN010110T1001
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

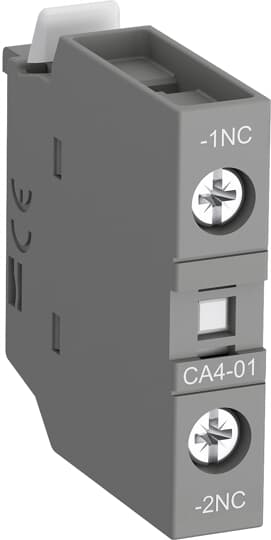

CA4-01-T is a 1-pole front mounted auxiliary contact block equipped with screw terminals and can be fitted on AF(C)09(Z)(B)...96 contactors and NF(C)(Z)(B) contactor relays. CA4-01-T is available with 1 N.C. instantaneous contacts for standard industrial environments. CA4-01-T is packaged by 10 pieces.CA4-01-T Auxiliary Contact Block
ABB 1SBN010110T1001 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27371302
- E-Number (Finland)
- 3706503
- E-Number (Sweden)
- 3211411
- ETIM 9
- EC000041 - Auxiliary contact block
- IDEA Granular Category Code (IGCC)
- 4743 >> Auxiliary contact block
- Object Classification Code
- K
Dimensions
- Product Net Depth / Length
- 39.5 mm
- Product Net Height
- 43 mm
- Product Net Weight
- 0.014 kg
- Product Net Width
- 9.9 mm
Environmental
- Conventional Free-air Thermal Current (Ith)
- acc. to IEC 60947-5-1, Θ = 40 °C 16 A
- Degree of Protection
- acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
- RoHS Information
- 2CMT2021-006277
- WEEE B2C / B2B
- Business To Business
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Ordering
- Customs Tariff Number
- 85389099
- Minimum Order Quantity
- 10 piece
- Product Main Type
- Accessories for Block Contactors
Technical
- Connecting Capacity Auxiliary Circuit
- Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Rigid Solid 1/2x 1 ... 2.5 mm²Rigid Stranded 1/2x 1 ... 2.5 mm²
- Maximum Electrical Switching Frequency
- (AC-15) 1200 cycles per hour(DC-13) 900 cycles per hour
- Maximum Mechanical Switching Frequency
- 3600 cycles per hour
- Mounted Auxiliary Contacts
- 0 NO, 1 NC
- Mounting Type
- Front mounting
- Number of Auxiliary Contacts NC
- 1
- Number of Auxiliary Contacts NO
- 0
- Number of Poles
- 1
- Rated Frequency (f)
- Auxiliary Circuit 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 6 kV
- Rated Insulation Voltage (Ui)
- acc. to IEC 60947-5-1 690 Vacc. to UL/CSA 600 V
- Rated Operational Current AC-15 (Ie)
- (500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(400 / 440 V) 3 A
- Rated Operational Current DC-13 (Ie)
- (24 V) 6 A / 144 W(48 V) 2.8 A / 134 W(72 V) 1 A / 72 W(110 V) 0.55 A / 60 W(125 V) 0.55 A / 69 W(220 V) 0.27 A / 60 W(250 V) 0.27 A / 68 W(400 V) 0.15 A / 60 W(500 V) 0.13 A / 65 W(600 V) 0.1 A / 60 W
- Rated Operational Voltage
- Auxiliary Circuit 690 V
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 0.1 s 140 Afor 1 s 100 A
- Standards
- IEC/EN 60947-5-1, UL 60947-5-1, CSA C22.2 No. 60947-5-1-14
- Suitable For
- AF09AF09ZAF12AF12ZAF16AF16ZAF26AF26ZAF30AF30ZAF38AF38ZAF40AF52AF65AF80AF96AFC09AFC12AFC16AFC26AFC30AFC38AFC40AFC52AFC65AFC80AFC96AF09BAF09ZBAF12BAF12ZBAF16BAF16ZBAF26BAF26ZBAF30BAF30ZBAF38BAF38ZBAF40BAF52BAF65BAF80BAF96BNF22ENFZ22ENF31ENFZ31ENF40ENFZ40ENFC22ENFC31ENFC40ENFZB22ENFB22ENFZB31ENFB31ENFZB40ENFB40E
- Terminal Type
- Screw Terminals
- Tightening Torque
- Auxiliary Circuit 1.2 N·m
- Wire Stripping Length
- Auxiliary Circuit 10 mm
Technical UL/CSA
- Connecting Capacity Auxiliary Circuit UL/CSA
- Rigid Solid 1/2x 18-14 AWGRigid Stranded 1/2x 18-14 AWG
- Pilot Duty UL/CSA
- A600Q600
- Tightening Torque UL/CSA
- Auxiliary Circuit 11 in·lb
