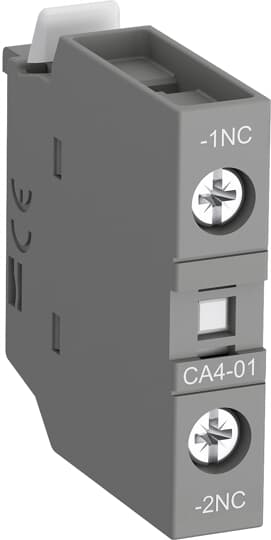

ABB 1SBN010110R1001
Estimated Delivery between and with free shipping.
Overnight shipping is also available.





Description
ABB 1SBN010110R1001 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27371302
- E-Number (Finland)
- 3706502
- E-Number (Sweden)
- 3211410
- ETIM 9
- EC000041 - Auxiliary contact block
- IDEA Granular Category Code (IGCC)
- 4743 >> Auxiliary contact block
- Object Classification Code
- K
Dimensions
- Product Net Depth / Length
- 39.5 mm
- Product Net Height
- 43 mm
- Product Net Weight
- 0.014 kg
- Product Net Width
- 9.9 mm
Environmental
- Conventional Free-air Thermal Current (Ith)
- acc. to IEC 60947-5-1, Θ = 40 °C 16 A
- Degree of Protection
- acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
- RoHS Information
- 2CMT2021-006277
- WEEE B2C / B2B
- Business To Business
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Ordering
- Customs Tariff Number
- 85389099
- Minimum Order Quantity
- 1 piece
- Product Main Type
- Accessories for Block Contactors
Technical
- Connecting Capacity Auxiliary Circuit
- Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Rigid Solid 1/2x 1 ... 2.5 mm²Rigid Stranded 1/2x 1 ... 2.5 mm²
- Maximum Electrical Switching Frequency
- (AC-15) 1200 cycles per hour(DC-13) 900 cycles per hour
- Maximum Mechanical Switching Frequency
- 3600 cycles per hour
- Mounted Auxiliary Contacts
- 0 NO, 1 NC
- Mounting Type
- Front mounting
- Number of Auxiliary Contacts NC
- 1
- Number of Auxiliary Contacts NO
- 0
- Number of Poles
- 1
- Rated Frequency (f)
- Auxiliary Circuit 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 6 kV
- Rated Insulation Voltage (Ui)
- acc. to IEC 60947-5-1 690 Vacc. to UL/CSA 600 V
- Rated Operational Current AC-15 (Ie)
- (500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(400 / 440 V) 3 A
- Rated Operational Current DC-13 (Ie)
- (24 V) 6 A / 144 W(48 V) 2.8 A / 134 W(72 V) 1 A / 72 W(110 V) 0.55 A / 60 W(125 V) 0.55 A / 69 W(220 V) 0.27 A / 60 W(250 V) 0.27 A / 68 W(400 V) 0.15 A / 60 W(500 V) 0.13 A / 65 W(600 V) 0.1 A / 60 W
- Rated Operational Voltage
- Auxiliary Circuit 690 V
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 0.1 s 140 Afor 1 s 100 A
- Standards
- IEC/EN 60947-5-1, UL 60947-5-1, CSA C22.2 No. 60947-5-1-14
- Suitable For
- AF09AF09ZAF12AF12ZAF16AF16ZAF26AF26ZAF30AF30ZAF38AF38ZAF40AF52AF65AF80AF96AFC09AFC12AFC16AFC26AFC30AFC38AFC40AFC52AFC65AFC80AFC96AF09BAF09ZBAF12BAF12ZBAF16BAF16ZBAF26BAF26ZBAF30BAF30ZBAF38BAF38ZBAF40BAF52BAF65BAF80BAF96BNF22ENFZ22ENF31ENFZ31ENF40ENFZ40ENFC22ENFC31ENFC40ENFZB22ENFB22ENFZB31ENFB31ENFZB40ENFB40E
- Terminal Type
- Screw Terminals
- Tightening Torque
- Auxiliary Circuit 1.2 N·m
- Wire Stripping Length
- Auxiliary Circuit 10 mm
Technical UL/CSA
- Connecting Capacity Auxiliary Circuit UL/CSA
- Rigid Solid 1/2x 18-14 AWGRigid Stranded 1/2x 18-14 AWG
- Pilot Duty UL/CSA
- A600Q600
- Tightening Torque UL/CSA
- Auxiliary Circuit 11 in·lb
