ABB 1SBL419025R8700
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

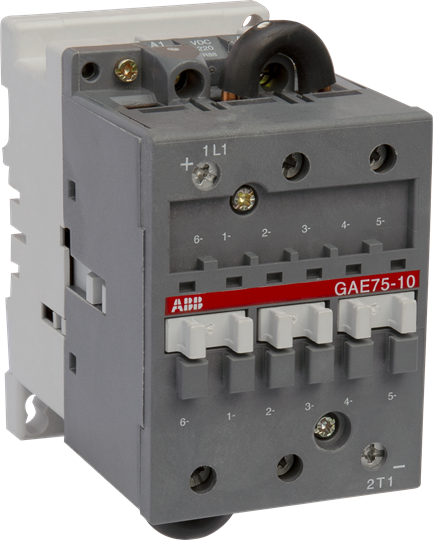

GAE75 contactors are designed for DC circuit switching. Arc suppression is more difficult in DC than in AC. To choose a contactor, it is necessary to know the current and voltage to be broken as well as the L/R time constant of the power circuit to be controlled. GAE 75 contactors are of the block type design. - Main poles: the contactors are fitted with arc chutes with permanent magnets specially designed for DC breaking. The three contactor paths are arranged in series via two supplied and fitted insulated connections (25 mm²). The GAE75 are "single-pole" devices for which the connection polarities indicated next to the connection terminals must be respected. Furthermore, they are marked 1L1 for the positive terminal and 2T1 for the negative terminal. - Control circuit: DC operated with standard double-winding DC coils (with add-on factory-mounted lagging contact for insertion of the"holding" winding) - Accessories: a wide range of accessories is availableGAE75-10-00 125V DC Contactor
ABB 1SBL419025R8700 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27371018
- ETIM 4
- EC002552 - Power contactor, DC switching
- ETIM 5
- EC002552 - Power contactor, DC switching
- IDEA Granular Category Code (IGCC)
- 4763 >> Power contactor, DC switching
- Object Classification Code
- Q
Dimensions
- Product Net Depth / Length
- 108 mm
- Product Net Height
- 132 mm
- Product Net Weight
- 1.26 kg
- Product Net Width
- 82 mm
Environmental
- Ambient Air Temperature
- Close to Contactor for Storage -60 ... +80 °CNear Contactor for Operation in Free Air (0.85 ... 1.1 Uc) -40 ... +55 °CNear Contactor for Operation in Free Air (Uc) -40 ... 70 °C
- Climatic Withstand
- acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II
- Maximum Operating Altitude Permissible
- Without Derating 3000 m
- RoHS Status
- Following EU Directive 2011/65/EU
Ordering
- Customs Tariff Number
- 85364900
- Minimum Order Quantity
- 1 piece
Technical
- Coil Consumption
- Average Holding Value, from Warm State 4 WAverage Pull-in Value, from Cold State 200 WHolding at Max. Rated Control Circuit Voltage 50 Hz 4 WHolding at Max. Rated Control Circuit Voltage DC 4 WPull-in at Max. Rated Control Circuit Voltage DC 200 V·A
- Connecting Capacity Auxiliary Circuit
- Flexible with Cable End 0.75 ... 2.5 mm²Rigid Cable 1 ... 4 mm²
- Connecting Capacity Main Circuit
- Flexible with Cable End 6 ... 16 mm²Rigid Cable 6 ... 25 mm²
- Connecting Terminals (delivered in open position) Main Poles
- M 6 (+,-) pozidriv 2 screws with 1x (13 x 10 mm) connector
- Conventional Free-air Thermal Current (Ith)
- acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 125 A
- Degree of Protection
- acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
- Maximum Electrical Switching Frequency
- 300 cycles per hour
- Maximum Mechanical Switching Frequency
- 3600 cycles per hour
- Mechanical Durability
- 5 million
- Mounting by Screws (not supplied)
- 2 x M6 screws placed diagonally
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH75-25 (75 x 25 mm Mounting Rail) acc. to IEC 60715
- Number of Auxiliary Contacts NC
- 0
- Number of Auxiliary Contacts NO
- 0
- Number of Main Contacts NC
- 0
- Number of Main Contacts NO
- 3
- Operate Time
- Between Coil De-energization and NO Contact Opening 5 ... 15 msBetween Coil Energization and NO Contact Closing 30 ... 30 ms
- Rated Control Circuit Voltage (Uc)
- DC Operation 125 V
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- acc. to IEC 60947-4-1 1000 Vacc. to UL/CSA 600 V
- Rated Operational Current DC-1 (Ie)
- (1000 V) 1-Pole, 40 °C 35 A(1000 V) 1-Pole, 55 °C 35 A(1000 V) 1 Pole, 70 °C 35 A(110 V) 1-Pole, 40 °C 120 A(110 V) 1-Pole, 55 °C 100 A(110 V) 1-Pole, 70 °C 85 A(220 V) 1-Pole, 40 °C 120 A(220 V) 1-Pole, 55 °C 100 A(220 V) 1-Pole, 70 °C 85 A(440 V) 1-Pole, 40 °C 100 A(440 V) 1-Pole, 55 °C 100 A(440 V) 1-Pole, 70 °C 85 A(600 V) 1-Pole, 40 °C 75 A(600 V) 1-Pole, 55 °C 75 A(600 V) 1-Pole, 70 °C 75 A(72 V) 1-Pole, 40 °C 120 A(72 V) 1-Pole, 55 °C 100 A(72 V) 1-Pole, 70 °C 85 A
- Rated Operational Current DC-3 (Ie)
- (110 V) 1-Pole, 40 °C 120 A(110 V) 1-Pole, 55 °C 100 A(220 V) 1-Pole, 40 °C 100 A(220 V) 1-Pole, 55 °C 100 A(440 V) 1-Pole, 40 °C 85 A(440 V) 1-Pole, 55 °C 85 A(72 V) 1-Pole, 40 °C 120 A(72 V) 1-Pole, 55 °C 100 A
- Rated Operational Current DC-5 (Ie)
- (110 V) 1-Pole, 40 °C 85 A(110 V) 1-Pole, 55 °C 85 A(220 V) 1-Pole, 40 °C 85 A(220 V) 1-Pole, 55 °C 85 A(440 V) 1-Pole, 40 °C 35 A(440 V) 1-Pole, 55 °C 35 A(72 V) 1-Pole, 40 °C 85 A(72 V) 1-Pole, 55 °C 85 A
- Rated Operational Voltage
- Main Circuit 1000 V DC
- Short-Circuit Protective Devices
- gG Type Fuses 160 A
- Terminal Type
- Screw Terminals
Technical UL/CSA
- General Use Rating UL/CSA
- (1000 V DC) 35 A(440 V DC) 100 A(600 V DC) 75 A
- Maximum Operating Voltage UL/CSA
- Main Circuit 1000 V DC
