ABB 1SAZ421201R1002
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

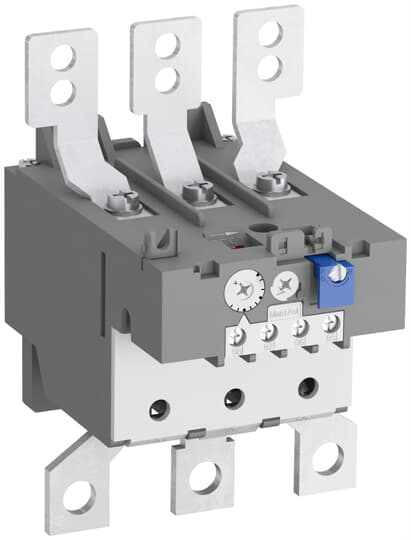

The TA200DU-110 thermal overload relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10A. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. The overload relays are connected directly to the block contactors. Single mounting kits are available as accessory.TA200DU-110 Thermal Overload Relay 80 ... 110 A
ABB 1SAZ421201R1002 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27371501
- E-Number (Finland)
- 3709358
- E-Number (Sweden)
- 3228702
- ETIM 4
- EC000106 - Thermal overload relay
- ETIM 5
- EC000106 - Thermal overload relay
- IDEA Granular Category Code (IGCC)
- 5366 >> Thermal overload relay
- Object Classification Code
- F
Dimensions
- Product Net Depth / Length
- 126 mm
- Product Net Height
- 151 mm
- Product Net Weight
- 0.76 kg
- Product Net Width
- 104 mm
Environmental
- Ambient Air Temperature
- Operation -25 ... +55 °COperation Compensated -25 ... +55 °CStorage -40 ... +70 °C
- Ambient Air Temperature Compensation
- Yes
- Maximum Operating Altitude Permissible
- 2000 m
- Resistance to Shock acc. to IEC 60068-2-27
- 11 ms Pulse 12g
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
- Customs Tariff Number
- 85364900
- Minimum Order Quantity
- 1 piece
Technical
- Connecting Capacity Auxiliary Circuit
- Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible 1/2x 0.75 ... 2.5 mm²Rigid 1/2x 0.75 ... 4 mm²
- Connecting Capacity Main Circuit
- Hole Diameter > 10 mm²Rigid or Flexible with Cable Lug 1x 25 ... 120 mm²
- Conventional Free-air Thermal Current (Ith)
- Auxiliary Circuit NC 5 AAuxiliary Circuit NO 5 A
- Degree of Protection
- Housing IP20Main Circuit Terminals IP00
- Mounting Position
- 1 ... 6
- Number of Auxiliary Contacts NC
- 1
- Number of Auxiliary Contacts NO
- 1
- Number of Poles
- 3
- Number of Protected Poles
- 3
- Pollution Degree
- 3
- Power Loss
- at Rated Operating Conditions per Pole 2.5 ... 4.7 W
- Rated Frequency (f)
- Auxiliary Circuit 50 HzAuxiliary Circuit 60 HzAuxiliary Circuit DCMain Circuit 60 HzMain Circuit 50 HzMain Circuit DC
- Rated Impulse Withstand Voltage (Uimp)
- Auxiliary Circuit 6 kVMain Circuit 6 kV
- Rated Insulation Voltage (Ui)
- 690 V
- Rated Operational Current AC-15 (Ie)
- (120 V) NC 3 A(120 V) NO 1.5 A(240 V) NC 3 A(240 V) NO 1.5 A(400 V) NC 1.9 A(400 V) NO 1 A(440 V) NC 1 A(440 V) NO 1 A(500 V) NC 1 A(500 V) NO 1 A
- Rated Operational Current DC-13 (Ie)
- (125 V) NC 0.25 A(125 V) NO 0.25 A(24 V) NC 1.25 A(24 V) NO 1.25 A(250 V) NC 0.12 A(250 V) NO 0.04 A(60 V) NC 0.25 A(60 V) NO 0.25 A
- Rated Operational Current (Ie)
- 110 A
- Rated Operational Voltage
- Auxiliary Circuit 440 V DCAuxiliary Circuit 500 V ACMain Circuit 690 V ACMain Circuit 440 V DC
- Recommended Screw Driver
- Auxiliary Circuit Pozidriv 1Main Circuit Open Bars
- Setting Range
- 80 ... 110 A
- Standards
- IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1
- Suitable For
- A145A185AF145AF185AF190AF205
- Tightening Torque
- Auxiliary Circuit 1 ... 1.3 N·mMain Circuit 25 N·m
- Wire Stripping Length
- Auxiliary Circuit 9 mm
Technical UL/CSA
- Connecting Capacity Auxiliary Circuit UL/CSA
- Flexible 1/2x 18-14 AWGStranded 1/2x 18-14 AWG
- Connecting Capacity Main Circuit UL/CSA
- Flexible 1x 4-0000 AWGStranded 1x 4-0000 AWG
- Contact Rating UL/CSA
- (NC:) B600(NO:) C600
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V AC
- Tightening Torque UL/CSA
- Auxiliary Circuit 12 in·lbMain Circuit 220 in·lb
