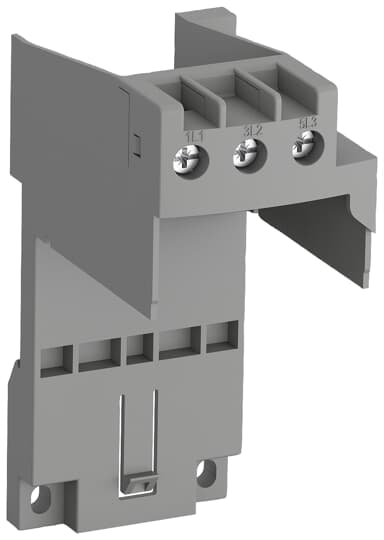

ABB 1SAX101910R1001
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The DB19EF single mounting kit allows the installation of EF19 electronic overload relays without a contactor on a DIN rail or mounting plate.DB19EF Single Mounting Kit
ABB 1SAX101910R1001 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27371392
- E-Number (Finland)
- 3800373
- E-Number (Sweden)
- 3210277
- ETIM 4
- EC002498 - Accessories for low-voltage switch technology
- ETIM 5
- EC002498 - Accessories for low-voltage switch technology
- IDEA Granular Category Code (IGCC)
- 2988 >> Mounting kits
- Object Classification Code
- F
Dimensions
- Product Net Depth / Length
- 67.3 mm
- Product Net Height
- 103.5 mm
- Product Net Weight
- 0.046 kg
- Product Net Width
- 45 mm
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
- Customs Tariff Number
- 85389099
- Minimum Order Quantity
- 1 piece
Technical
- Connecting Capacity Main Circuit
- Flexible with Ferrule 1x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible 1x 0.75 ... 2.5 mm²Rigid 1x 1 ... 4 mm²
- Number of Poles
- 3
- Number of Protected Poles
- 3
- Pollution Degree
- 3
- Rated Frequency (f)
- Main Circuit 50 HzMain Circuit 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- Main Circuit 6 kV
- Rated Insulation Voltage (Ui)
- 690 V
- Rated Operational Current AC-3 (Ie)
- 18.9 A
- Rated Operational Current (Ie)
- 18.9 A
- Rated Operational Voltage
- Auxiliary Circuit 600 V AC/DCMain Circuit 690 V AC
- Recommended Screw Driver
- Pozidriv 2
- Standards
- IEC/EN 60947-1IEC/EN 60947-4-1UL 60947-1UL 60947-4-1
- Suitable For
- EF19
- Tightening Torque
- Main Circuit 0.8 ... 1.5 N·m
- Wire Stripping Length
- Main Circuit 12 mm
Technical UL/CSA
- Connecting Capacity Main Circuit UL/CSA
- Flexible 1/2x 18-10 AWGStranded 1/2x 18-10 AWG
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V AC
- Tightening Torque UL/CSA
- Main Circuit 7 ... 13 in·lb
