ABB 1SAM350000R1014
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

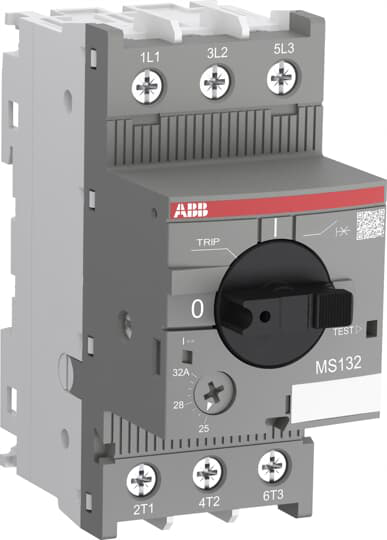

The MS132-25 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 25.0 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 50 kA at 400 VAC and trip class 10. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and terminal spacers are available as accessory.MS132-25 Manual Motor Starter 20 ... 25 A
ABB 1SAM350000R1014 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27370401
- E-Number (Finland)
- 3705998
- E-Number (Sweden)
- 3112129
- ETIM 4
- EC000074 - Motor protective circuit-breaker
- ETIM 5
- EC000074 - Motor protective circuit-breaker
- IDEA Granular Category Code (IGCC)
- 4731 >> Manual Starters
- Object Classification Code
- F
Dimensions
- Product Net Depth / Length
- 86.55 mm
- Product Net Height
- 97.8 mm
- Product Net Weight
- 0.31 kg
- Product Net Width
- 45 mm
Environmental
- Ambient Air Temperature
- Around the Enclosure 0 ... +40 °COperation -25 ... +70 °COperation Compensated -25 ... +60 °CStorage -50 ... +80 °C
- Ambient Air Temperature Compensation
- Yes
- Maximum Operating Altitude Permissible
- 2000 m
- Resistance to Shock acc. to IEC 60068-2-27
- 11 ms Pulse 25g
- Resistance to Vibrations acc. to IEC 60068-2-6
- 5g / 3 ... 150 Hz
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
- Customs Tariff Number
- 85362010
- Minimum Order Quantity
- 1 piece
Technical
- Actuator Type
- Rotary Handle
- Connecting Capacity Main Circuit
- Flexible with Ferrule 1/2x 0.75 ... 6 mm²Flexible with Insulated Ferrule 1/2x 0.75 ... 6 mm²Flexible 1/2x 1 ... 2.5 mm²Flexible 1/2x 2.5 ... 6 mm²Rigid 1/2x 1 ... 2.5 mm²Rigid 1/2x 2.5 ... 6 mm²
- Contact Position Indication
- ON / OFF / TRIP
- Conventional Free-air Thermal Current (Ith)
- Main Circuit 25 A
- Degree of Protection
- Housing IP20Main Circuit Terminals IP10
- Electrical Durability
- 50000 cycle
- Mechanical Durability
- 100000 cycle
- Minimum Mounting Distance
- Electrical Conductive Board, Horizontal - Up to 400 V 0 mmElectrical Conductive Board, Horizontal - Up to 690 V 1.5 mmElectrical Conductive Board, Vertical 75 mmOther Device Same Type, Horizontal 0 mmOther Device Same Type, Vertical 150 mm
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Mounting Position
- 1 ... 6
- Number of Poles
- 3
- Pollution Degree
- 3
- Power Loss
- at Rated Operating Conditions per Pole 1.8 ... 2.8 W
- Rated Frequency (f)
- Main Circuit 50 HzMain Circuit 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- Main Circuit 6 kV
- Rated Instantaneous Short-Circuit Current Setting (Ii)
- 375 A
- Rated Insulation Voltage (Ui)
- 690 V
- Rated Operational Current AC-3e (Ie)
- 25 A
- Rated Operational Current AC-3 (Ie)
- 25 A
- Rated Operational Current DC-5 (Ie)
- 25 A
- Rated Operational Current (Ie)
- 25 A
- Rated Operational Power AC-3e (Pe)
- (400 V) Three Phase 11 kW
- Rated Operational Power AC-3 (Pe)
- (400 V) Three Phase 11 kW
- Rated Operational Voltage
- Main Circuit 690 V ACMain Circuit 250 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (230 V AC) 50 kA(250 V DC) 3 Poles in Series 10 kA(400 V AC) 50 kA(440 V AC) 30 kA(500 V AC) 10 kA(690 V AC) 3 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (230 V AC) 50 kA(400 V AC) 50 kA(440 V AC) 30 kA(500 V AC) 10 kA(690 V AC) 3 kA
- Recommended Screw Driver
- Pozidriv 2
- Remarks
- UL508 Self-Protected Combination Motor Controller (Type E) in combination with feeder block S1-M3-xx
- Setting Range
- 20 ... 25 A
- Standards
- IEC/EN 60947-1IEC/EN 60947-2IEC/EN 60947-4-1UL 60947-1UL 60947-4-1
- Terminal Type
- Screw Terminals
- Tightening Torque
- Main Circuit 2 N·m
- Wire Stripping Length
- Main Circuit 10 mm
Technical UL/CSA
- Connecting Capacity Main Circuit UL/CSA
- Flexible 1/2x 16-8 AWGStranded 1/2x 16-8 AWG
- Full Load Amps Motor Use
- (200 V AC) Three Phase 17.5 A(208 V AC) Three Phase 24.2 A(220 ... 240 V AC) Three Phase 22 A(440 ... 480 V AC) Three Phase 21 A(550 ... 600 V AC) Three Phase 22 A
- General Use Rating UL/CSA
- (600 V AC) 25 A
- Horsepower Rating UL/CSA
- (200 V AC) Three Phase 5 Hp(208 V AC) Three Phase 7.5 Hp(220 ... 240 V AC) Three Phase 7.5 Hp(440 ... 480 V AC) Three Phase 15 Hp(550 ... 600 V AC) Three Phase 20 Hp
- Locked Rotor Amps
- (200 V AC) Three Phase 105.8 A(208 V AC) Three Phase 140 A(220 ... 240 V AC) Three Phase 127 A(440 ... 480 V AC) Three Phase 116 A(550 ... 600 V AC) Three Phase 116 A
- Maximum Operating Voltage UL/CSA
- Auxiliary Circuit 250 V AC/DCMain Circuit 600 V AC
- Short-Circuit Current Rating (SCCR)
- Manual Self-Protected Combination Controllers (Type E), (480Y / 277 V AC) 30 kAAny UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 35 kAAny UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 35 kAAny UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 30 kAAny UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 18 kAAny UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 30 kAAny UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 18 kA
- Tightening Torque UL/CSA
- Main Circuit 18 in·lb
