ABB 1SAM201916R1113
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

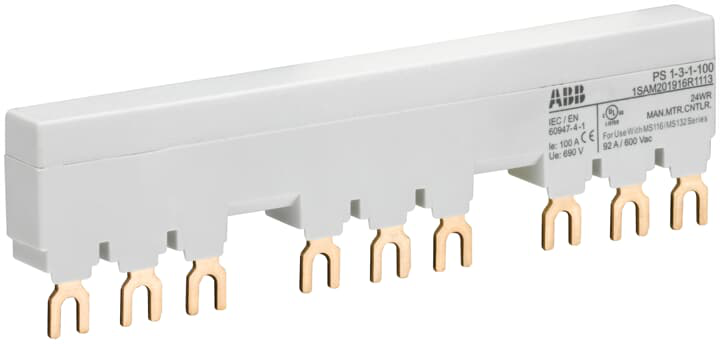

PS1-3-1-100 3-phase busbars ensure a quick and safe connection of 3 MS132 or MS116 manual motor starters with 1 lateral auxiliary contacts and are therefore a cost effective solution. The rated current is 100 A.PS1-3-1-100 Busbar
ABB 1SAM201916R1113 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27371306
- E-Number (Finland)
- 3706102
- E-Number (Sweden)
- 3112078
- ETIM 4
- EC002498 - Accessories for low-voltage switch technology
- ETIM 5
- EC000215 - Phase busbar
- IDEA Granular Category Code (IGCC)
- 4378 >> Phase busbar
- Object Classification Code
- W
Dimensions
- Product Net Depth / Length
- 13 mm
- Product Net Height
- 38.8 mm
- Product Net Weight
- 0.094 kg
- Product Net Width
- 149.5 mm
Environmental
- Ambient Air Temperature
- Operation -25 ... +70 °CStorage -50 ... +80 °C
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
- Customs Tariff Number
- 85369010
- Minimum Order Quantity
- 1 piece
Technical
- Accessory Group
- Electrical
- Accessory Type
- 3-Phase Busbar
- Connection Type
- Fork
- Degree of Protection
- IP20
- Number of Lateral Auxiliary Contacts
- 1
- Number of Mountable Devices
- 3
- Number of Phases
- 3
- Number of Poles
- 9
- Pollution Degree
- 3
- Product Name
- Busbar
- Rated Impulse Withstand Voltage (Uimp)
- 6 kV
- Rated Operational Current (Ie)
- 100 A
- Rated Operational Voltage
- 690 V AC250 V DC
- Rated Short-time Withstand Current Low Voltage (Icw)
- 100 kA
- Standards
- IEC/EN 60947-1IEC/EN 60947-4-1UL 60947-1UL 60947-4-1
- Suitable For
- MS116MS132MO132
- Suitable for Product Class
- Manual Motor Starter
Technical UL/CSA
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V AC
