Description

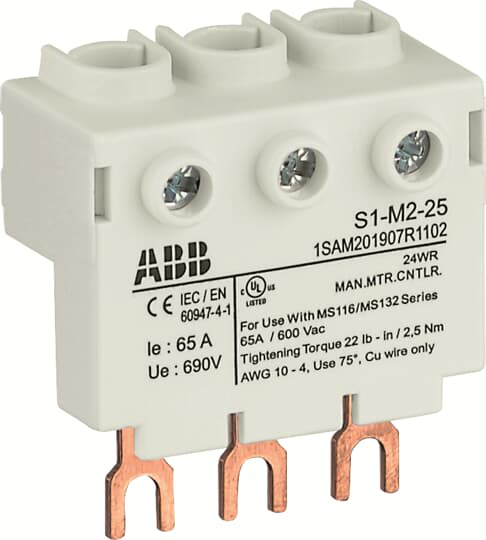

S1-M2-25 three phase feeder terminals allow the connection of bigger cable cross sections up to 25mm². They are usable with MS116 and MS132 manual motor starters and have a high mounting form. The rated current is 65 A.S1-M2-25 Power Infeed Block
ABB 1SAM201907R1102 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27400603
- E-Number (Finland)
- 3705941
- E-Number (Sweden)
- 3111688
- ETIM 4
- EC002498 - Accessories for low-voltage switch technology
- ETIM 5
- EC000275 - Rail terminal bar
- IDEA Granular Category Code (IGCC)
- 4378 >> Phase busbar
- Object Classification Code
- X
Dimensions
- Product Net Depth / Length
- 27 mm
- Product Net Height
- 53.8 mm
- Product Net Weight
- 0.051 kg
- Product Net Width
- 48 mm
Environmental
- Ambient Air Temperature
- Operation -25 ... +70 °CStorage -50 ... +80 °C
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
- Customs Tariff Number
- 85369010
- Minimum Order Quantity
- 1 piece
Technical
- Accessory Group
- Electrical
- Accessory Type
- 3-Phase Power Infeed Block
- Connecting Capacity Main Circuit
- Flexible 1x 4 ... 16 mm²Rigid 1x 4 ... 25 mm²
- Degree of Protection
- IP20
- Number of Poles
- 3
- Product Name
- Power Infeed Block
- Rated Operational Current (Ie)
- 65 A
- Rated Operational Voltage
- 690 V AC250 V DC
- Recommended Screw Driver
- M3.5Pozidriv 2
- Remarks
- High
- Standards
- IEC/EN 60947-1IEC/EN 60947-4-1UL 60947-1UL 60947-4-1
- Suitable For
- MS116MS132
- Suitable for Product Class
- Manual Motor Starter
- Terminal Type
- Screw Terminals
- Tightening Torque
- Main Circuit 2.5 N·m
- Wire Stripping Length
- Main Circuit 10 mm
Technical UL/CSA
- Connecting Capacity Main Circuit UL/CSA
- Flexible 1x 12-6 AWGStranded 1x 12-4 AWG
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V AC
- Tightening Torque UL/CSA
- Main Circuit 22 in·lb
