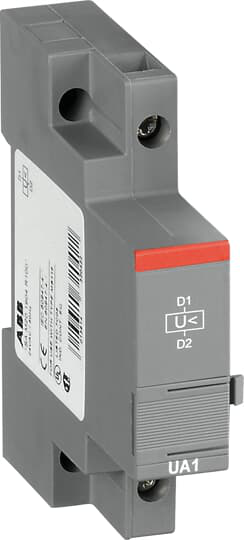

ABB 1SAM201904R1007
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Undervoltage release UA1 releases the manual motor starter or prevents it from being switched on when its voltage supply is interrupted. This can be used in emergency switching circuits or can prevent an automatic restart after voltage interruption. UA1 is attached laterally on the left side of MS116, MS132 or MS165 manual motor starters.UA1-415 Undervoltage Release
ABB 1SAM201904R1007 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27370417
- E-Number (Sweden)
- 3112033
- ETIM 4
- EC002498 - Accessories for low-voltage switch technology
- ETIM 5
- EC001022 - Under voltage coil
- IDEA Granular Category Code (IGCC)
- 4148 >> Under voltage coil
- Object Classification Code
- Q
Dimensions
- Product Net Depth / Length
- 75.5 mm
- Product Net Height
- 90 mm
- Product Net Weight
- 0.1 kg
- Product Net Width
- 18 mm
Environmental
- Ambient Air Temperature
- Operation -25 ... +60 °CStorage -50 ... +80 °C
- Resistance to Shock acc. to IEC 60068-2-27
- 11 ms Pulse 15g
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
- Customs Tariff Number
- 85365080
- Minimum Order Quantity
- 1 piece
Technical
- Accessory Group
- Electrical
- Accessory Type
- Undervoltage Release
- Connecting Capacity Auxiliary Circuit
- Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²Flexible 1/2x 0.75 ... 2.5 mm²Rigid 1/2x 1 ... 4 mm²
- Product Name
- Undervoltage Release
- Rated Control Supply Voltage (Us)
- (50 Hz) 415 V(60 Hz) 480 V
- Rated Impulse Withstand Voltage (Uimp)
- Auxiliary Circuit 6 kV
- Rated Insulation Voltage (Ui)
- 690 V
- Recommended Screw Driver
- Pozidriv 2
- Remarks
- The mechanical and electrical durability of manual motor starters in combination with UA1/AA1 is reduced. Values are provided on request.
- Standards
- CSA 22.2 No. 14IEC/EN 60947-1IEC/EN 60947-4-1UL 508UL 60947-1UL 60947-4-1
- Suitable For
- MS116MS132MO132MS165MO165
- Suitable for Product Class
- Manual Motor Starter
- Terminal Type
- Screw Terminals
- Tightening Torque
- Auxiliary Circuit 0.8 ... 1.2 N·m
- Wire Stripping Length
- Auxiliary Circuit 10 mm
Technical UL/CSA
- Connecting Capacity Auxiliary Circuit UL/CSA
- Flexible 1/2x 16-12 AWGStranded 1/2x 16-12 AWG
- Tightening Torque UL/CSA
- Auxiliary Circuit 7 in·lb
