Description

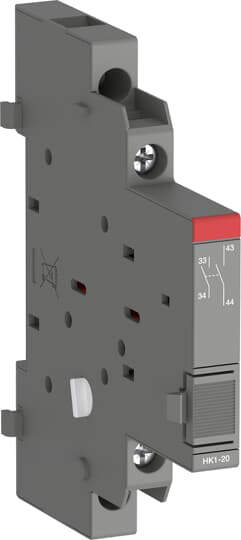

Auxiliary contacts HK1 change position with the main contacts of the manual motor starter. They are mounted laterally on the right side of manual motor starters MS116, MS132 or MS165. Auxiliary contacts HK1 are available as normally open or normally closed contacts.HK1-20 Auxiliary Contact
ABB 1SAM201902R1002 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27371302
- E-Number (Finland)
- 3706017
- E-Number (Sweden)
- 3112007
- ETIM 4
- EC002498 - Accessories for low-voltage switch technology
- ETIM 5
- EC000041 - Auxiliary contact block
- IDEA Granular Category Code (IGCC)
- 4743 >> Auxiliary contact block
- Object Classification Code
- Q
Dimensions
- Product Net Depth / Length
- 78.5 mm
- Product Net Height
- 90 mm
- Product Net Weight
- 0.035 kg
- Product Net Width
- 9 mm
Environmental
- Ambient Air Temperature
- Operation -25 ... +60 °CStorage -50 ... +80 °C
- Resistance to Shock acc. to IEC 60068-2-27
- 11 ms Pulse 25g
- Resistance to Vibrations acc. to IEC 60068-2-6
- 5g / 3 ... 150 Hz
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
- Customs Tariff Number
- 85365080
- Minimum Order Quantity
- 2 piece
Technical
- Accessory Group
- Electrical
- Accessory Type
- Auxiliary Contact
- Connecting Capacity Auxiliary Circuit
- Flexible with Ferrule 1/2x 0.75 ... 1.5 mm²Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm²Flexible 1/2x 0.75 ... 1.5 mm²Rigid 1/2x 1 ... 1.5 mm²
- Degree of Protection
- IP20
- Electrical Durability
- 100000 cycle
- Mechanical Durability
- 100000 cycle
- Number of Auxiliary Contacts CO (SPDT)
- 0
- Number of Auxiliary Contacts NC
- 0
- Number of Auxiliary Contacts NO
- 2
- Product Name
- Auxiliary Contact
- Rated Impulse Withstand Voltage (Uimp)
- Auxiliary Circuit 6 kV
- Rated Insulation Voltage (Ui)
- 690 V
- Rated Operational Current AC-15 (Ie)
- (24 V) 6 A(240 V) 4 A(690 V) 1 A(380 / 400 V) 3 A
- Rated Operational Current DC-13 (Ie)
- (24 V) 2 A(125 V) 0.55 A(250 V) 0.27 A(440 V) 0.15 A(600 V) 0.15 A
- Rated Operational Voltage
- 690 V AC600 V DCMain Circuit 690 V
- Recommended Screw Driver
- M3Pozidriv 2
- Standards
- CSA 22.2 No. 14IEC/EN 60947-1IEC/EN 60947-5-1UL 508UL 60947-1UL 60947-5-1
- Suitable For
- MS116MS132MO132MS165MO165
- Suitable for Product Class
- Manual Motor Starter
- Terminal Type
- Screw Terminals
- Tightening Torque
- Auxiliary Circuit 0.8 ... 1.2 N·m
- Wire Stripping Length
- Auxiliary Circuit 8 mm
Technical UL/CSA
- Connecting Capacity Auxiliary Circuit UL/CSA
- Flexible 1/2x 16-14 AWGStranded 1/2x 16-14 AWG
- Contact Rating UL/CSA
- B600Q600
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V AC
- Tightening Torque UL/CSA
- Auxiliary Circuit 7 in·lb
