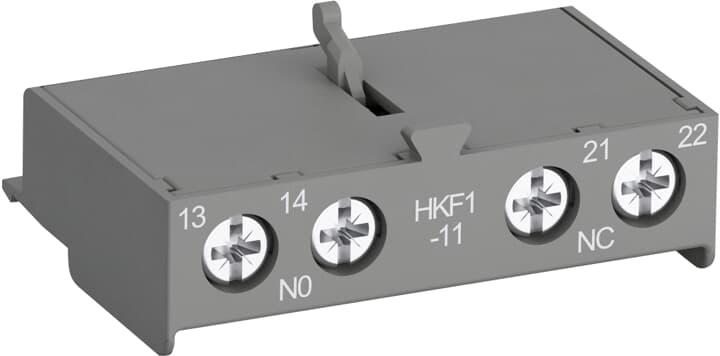

ABB 1SAM201901R1001
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Auxiliary contacts HKF1 with screw terminals change position with the main contacts of the manual motor starter. They are mounted on the front side of manual motor starters MS116, MS132 or MS165. Auxiliary contacts HKF1 are available as normally open or normally closed contacts.HKF1-11 Auxiliary Contact
ABB 1SAM201901R1001 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27371302
- E-Number (Finland)
- 3706015
- E-Number (Sweden)
- 3112001
- ETIM 4
- EC002498 - Accessories for low-voltage switch technology
- ETIM 5
- EC000041 - Auxiliary contact block
- IDEA Granular Category Code (IGCC)
- 4743 >> Auxiliary contact block
- Object Classification Code
- Q
Dimensions
- Product Net Depth / Length
- 26.5 mm
- Product Net Height
- 12.5 mm
- Product Net Weight
- 0.015 kg
- Product Net Width
- 45 mm
Environmental
- Ambient Air Temperature
- Operation -25 ... +60 °CStorage -50 ... +80 °C
- Resistance to Shock acc. to IEC 60068-2-27
- 11 ms Pulse 25g
- Resistance to Vibrations acc. to IEC 60068-2-6
- 5g / 3 ... 150 Hz
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
- Customs Tariff Number
- 85365080
- Minimum Order Quantity
- 1 piece
Technical
- Accessory Group
- Electrical
- Accessory Type
- Auxiliary Contact
- Connecting Capacity Auxiliary Circuit
- Flexible with Ferrule 1/2x 0.75 ... 1.5 mm²Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm²Flexible 1/2x 0.75 ... 1.5 mm²Rigid 1/2x 1.0 ... 2.5 mm²
- Degree of Protection
- IP20
- Electrical Durability
- 100000 cycle
- Mechanical Durability
- 100000 cycle
- Number of Auxiliary Contacts NC
- 1
- Number of Auxiliary Contacts NO
- 1
- Product Name
- Auxiliary Contact
- Rated Frequency (f)
- Auxiliary Circuit DCAuxiliary Circuit 50 HzAuxiliary Circuit 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- Auxiliary Circuit 6 kV
- Rated Insulation Voltage (Ui)
- 250 V
- Rated Operational Current AC-15 (Ie)
- (24 V) 3 A(120 V) 3 A(240 V) 1.5 A
- Rated Operational Current DC-13 (Ie)
- (24 V) 1 A(125 V) 0.27 A(250 V) 0.11 A
- Rated Operational Voltage
- 250 V
- Recommended Screw Driver
- M3Pozidriv 2
- Standards
- CSA 22.2 No. 14IEC/EN 60947-1IEC/EN 60947-5-1UL 508UL 60947-1UL 60947-5-1
- Suitable For
- MS116MS132MO132MS165MO165
- Suitable for Product Class
- Manual Motor Starter
- Terminal Type
- Screw Terminals
- Tightening Torque
- Auxiliary Circuit 0.8 ... 1.2 N·m
- Wire Stripping Length
- Auxiliary Circuit 8 mm
Technical UL/CSA
- Connecting Capacity Auxiliary Circuit UL/CSA
- Flexible 1/2x 16-14 AWGStranded 1/2x 16-14 AWG
- Contact Rating UL/CSA
- B300R300
- Maximum Operating Voltage UL/CSA
- Main Circuit 250 V AC
- Tightening Torque UL/CSA
- Auxiliary Circuit 7 in·lb
