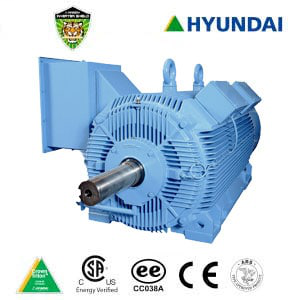

WorldWide Electric HSDE500-18-5010BB-IB
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
WorldWide Electric HSDE500-18-5010BB-IB is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ag/Farm Duty (single Phase)
- No
- Ag/Farm Duty (three phase)
- Yes
- Approx Weight (lbs)
- 4760
- Conduit Box Location
- F1
- country of Origin
- South Korea
- DE Bearing Type
- Ball
- Definite Purpose
- No
- Duty Cycle
- Continuous
- Enclosure Type
- TEFC
- Fan Cover (material)
- Rolled Steel
- FL Amps (A) - 460V
- 549.7
- FL. Eff (%)
- 96.2
- Frame Material
- Cast Iron
- Frame size
- 5010
- Frequency (hz)
- 50/60
- General Purpose
- Yes
- Harmony Code
- 8501.53.8040
- Hazardous Location (class 1 Division 2 Groups A, B, C, and D)
- Yes
- Hazardous Location (Explosion Proof)
- No
- Hazardous Location Rating
- Class 1 Division 2 Groups A, B, C, and D
- HP
- 500
- Insulation Class
- F with N Varnish
- inverter Duty
- Yes
- Inverter Rating
- 10:1 VT at Full Load/ 20:1 VT at 50% load 4:1 CT at Full Load/ 10:1 CT for 1 hour cycle
- Junction Box (material)
- Cast Iron
- Motor Phase
- 3
- Mounting Type
- Foot Mount
- NEMA Design
- B
- ODE Bearing Type
- Insulated Ball
- Overall Length (C Dim - inches)
- 75.83
- Pole
- 4
- Pump (not close coupled)
- Yes
- RPM
- 1800
- Service Factor
- 1.15
- Service factor at 50hz
- 450hp and 1.0 SF
- Severe Duty
- Yes
- Shaft Diameter (in)
- 3.875
- Temp Code (40 Deg C)
- T3 (at 45 Deg C)
- Temp Code (55 Deg C)
- T2D
- Voltage (50hz)
- 380, 400, 415
- Voltage (60hz)
- 460
- Washdown Duty
- No
