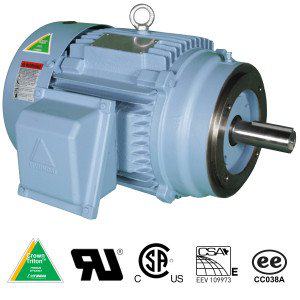

WorldWide Electric HHI40-18-324TCRD
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
WorldWide Electric HHI40-18-324TCRD is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ag/Farm Duty (single Phase)
- No
- Ag/Farm Duty (three phase)
- Yes
- Approx Weight (lbs)
- 626
- Conduit Box Location
- F1
- country of Origin
- South Korea
- DE Bearing Type
- Ball
- Definite Purpose
- No
- Duty Cycle
- Continuous
- Enclosure Type
- TEFC
- Fan Cover (material)
- Rolled Steel
- FL Amps (A) - 208V
- 107.92307692307692
- FL Amps (A) - 230V
- 97.6
- FL Amps (A) - 460V
- 48.8
- FL. Eff (%)
- 94.1
- Frame Material
- Cast Iron
- Frame size
- 324TC
- Frequency (hz)
- 50/60
- General Purpose
- Yes
- Harmony Code
- 8501.52.8040
- Hazardous Location (class 1 Division 2 Groups A, B, C, and D)
- Yes
- Hazardous Location (Explosion Proof)
- No
- Hazardous Location Rating
- Class 1 Division 2 Groups A, B, C, and D
- HP
- 40
- Insulation Class
- F with N Varnish
- inverter Duty
- Yes
- Inverter Rating
- 10:1 CT and 20:1 VT
- Junction Box (material)
- Cast Iron
- Motor Phase
- 3
- Mounting Type
- C Face Mount
- NEMA Design
- B
- ODE Bearing Type
- Ball
- Overall Length (C Dim - inches)
- 31.07
- Pole
- 4
- Pump (not close coupled)
- Yes
- RPM
- 1800
- Service Factor
- 1.15
- Service factor at 50hz
- 1
- Severe Duty
- Yes
- Shaft Diameter (in)
- 2.125
- Temp Code (40 Deg C)
- T3C
- Temp Code (55 Deg C)
- T3A
- Voltage (50hz)
- 190/380, 200/400, 208/415
- Voltage (60hz)
- 208-230/460
- Washdown Duty
