WIKA 9240179





Description

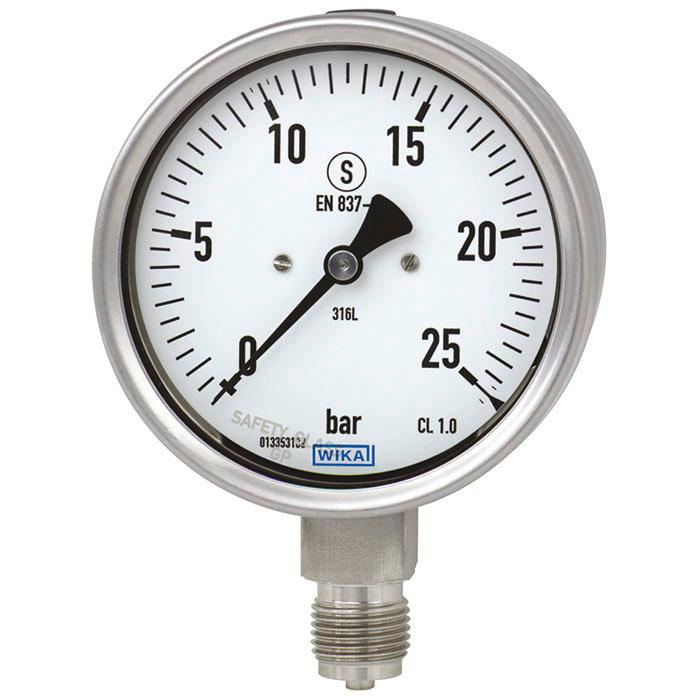

This high-quality Bourdon tube pressure gauge has been designed especially for increased safety requirements within the process industry. The use of high-quality stainless steel materials and the robust design are geared to applications in the chemical and process engineering industries. Thus the instrument is suitable for liquid and gaseous media, also in aggressive environments. Scale ranges of 0 ... 0. 6 to 0 ... 1,600 bar ensure the measuring ranges required for a wide variety of applications. WIKA manufactures and qualifies the pressure gauge in accordance with the requirements of the EN 837-1 European standard in the "S3" safety version. The safety version is made up of a non-splintering window, a solid baffle wall between measuring system and dial and a blow-out back. In the event of a failure, the operator is protected at the front side, as media or components can only be ejected via the back of the case. For harsh operating conditions (e. g. vibrations), all instruments are also available with an optional liquid filling.Bourdon tube pressure gauge, stainless steel, 0/60 psi, 1/4 NPT
WIKA 9240179 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Accuracy Class
- +/- 2/1/2% (ASME B40.100 Grade A)
- Case filling
- without
- Connector location
- lower mount
- Ingress Protection
- IP 65
- Material pressure element
- Measuring System 316 SS
- Measuring range
- gauge pressure range
- Measuring System
- Stainless Steel
- Model
- 232.30
- Nominal size
- 2.5"
- Permissible ambient temperature
- -40 ... +60 °C
- Permissible medium temperature
- + 200 °C
- Pointer
- adjustable pointer
- Pressure Gauge Standard
- US-Standard
- Process Connection
- 1/4 NPT
- Scale range
- 0/60 psi
- stop pin on dial
- at zero
- Window
- Polycarbonate
