WIKA 4213777
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

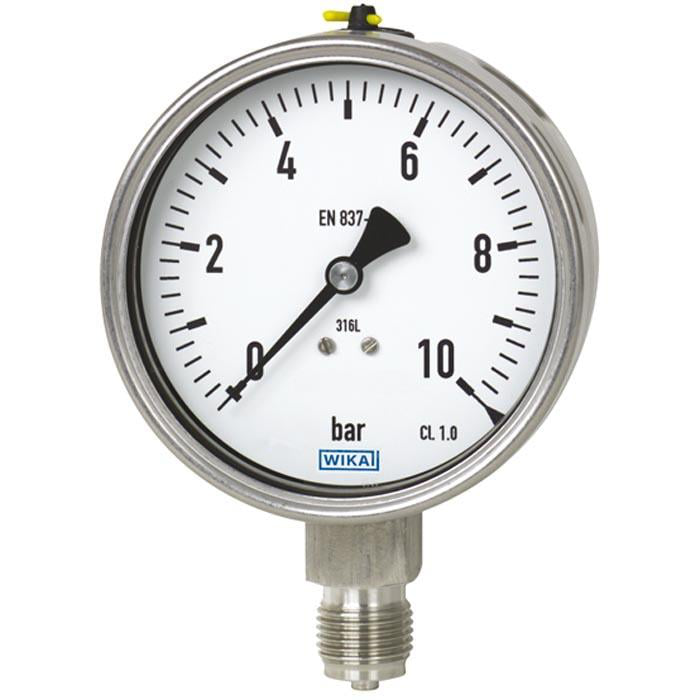

This high-quality Bourdon tube pressure gauge has been designed especially for the process industry. The use of high-quality stainless steel materials and the robust design are geared to applications in the chemical and process engineering industries. Thus the instrument is suitable for liquid and gaseous media, also in aggressive environments. Scale ranges of 0 … 0. 6 to 0 … 1,600 bar [0 ... 10 to 0 ... 20,000 psi] ensure the measuring ranges required for a wide variety of applications. WIKA manufactures and qualifies the pressure gauge in accordance with the standards EN 837-1 and ASME B40. 100. This instrument has as safety function a blow-out device with blow-out plug on the back of the case. In the event of a failure, overpressure can escape there. The model 233. 50 with liquid-filled case is suitable for high dynamic pressure loads and vibrations.Bourdon tube pressure gauge, stainless steel , 0/60 psi, 1/2 NPT
WIKA 4213777 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Accuracy Class
- +/- 1% (ASME B40.100 Grade 1A)
- Case filling
- without
- Case surface
- bare case / polished ring
- Connector location
- lower mount
- Ingress Protection
- IP 65
- Material pressure element
- Measuring System 316L
- Measuring System
- Stainless Steel
- Model
- 232.50
- Nominal size
- 6"
- Permissible ambient temperature
- -40 ... +60 °C
- Permissible medium temperature
- + 200 °C
- Pointer
- adjustable pointer
- Pressure Gauge Standard
- US-Standard
- Process Connection
- 1/2 NPT
- Scale range
- 0/60 psi
- Window
- laminated safety glass
