Description

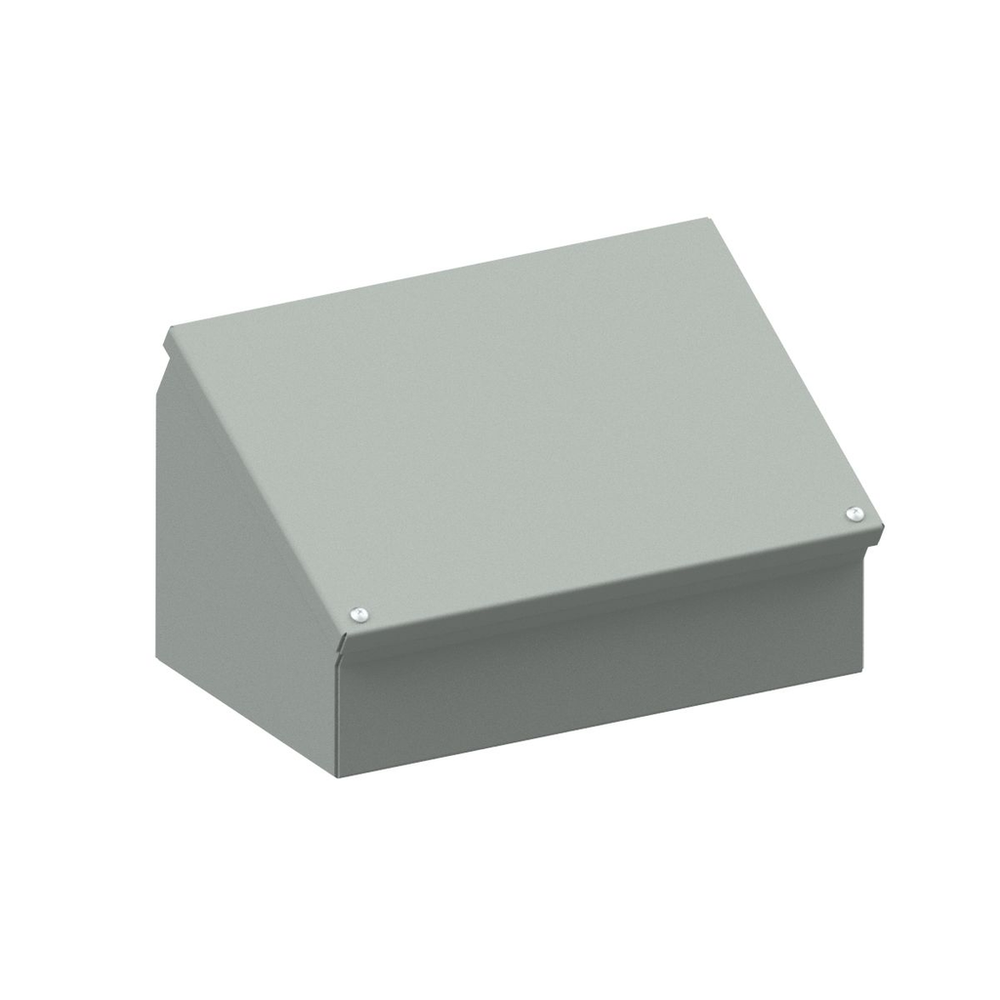

N12 Operator Interface Consolet 20X20 Carbon Steel - GrayN12 Operator Interface Consolet 20X20 Carbon Steel - Gray
Wiegmann WC20C20 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- Certified Listed
- cULus
- EU RoHS Indicator
- Yes
- Listings
- UL, CSA
Specifications
- Actual Depth
- 13.09 in
- Application
- Designed to house a variety of electronic control or instrumentation devices. Consolets provide protection from dust, dirt, oil, and water. Flexible design allows for mounting on either of two sides, creating control surfaces of 30 degrees or 60 degrees.
- ARRA Compliant
- Contact Manufacturer
- Base Unit of Measure
- EA
- BOX SIZE
- 20.000x13.090x20.000 (in)
- Buy American Compliant
- Contact Manufacturer
- Carton - Gross Weight per Pack
- 36.000 lb.
- Carton - Number of Sub Packs
- 1
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725441655
- Carton - Total Units
- 1 EA
- Class Code
- P04
- Color
- Ansi-61 Gray Smooth
- Construction
- Continuously Welded Seams
- Country of Origin
- US
- Cover Type
- Screw
- Cubic Capacity
- 5200 cu.in
- Depth
- 13 in
- Description - Invoice
- CONSOLETS,OIL-TIGHT,CS,20X20
- Each - Width
- 20.000 in
- Finish
- Polyester Powder
- Finish Type
- Polyester Powder
- Freight Class Code
- 06316009
- Harmonization Code
- 7326908688
- Height
- 20 in
- Image Actual Or Representative
- R
- Lead Time
- 21 wk
- Material
- Carbon Steel
- MSDS Flag
- No
- Nema Rating
- 12
- NEMA Rating
- 12
- Order Multiple
- 1 EA
- Returnable Indicator
- Yes
- Series
- WC-C
- Special Features
- Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Captive cover screws thread into sealed wells. Control panel is continuously hinged along bottom edge. Closed cell oil resistant neoprene gasket. Grounding provisions included.
- Standard
- cULus
- Stock Indicator
- S - Shelf Stock
- Sub Class Code
- P04P069
- Type
- Consolets
- UL Listed
- Yes
- Weight
- 36 lb.
- Width
- 20.000 in
