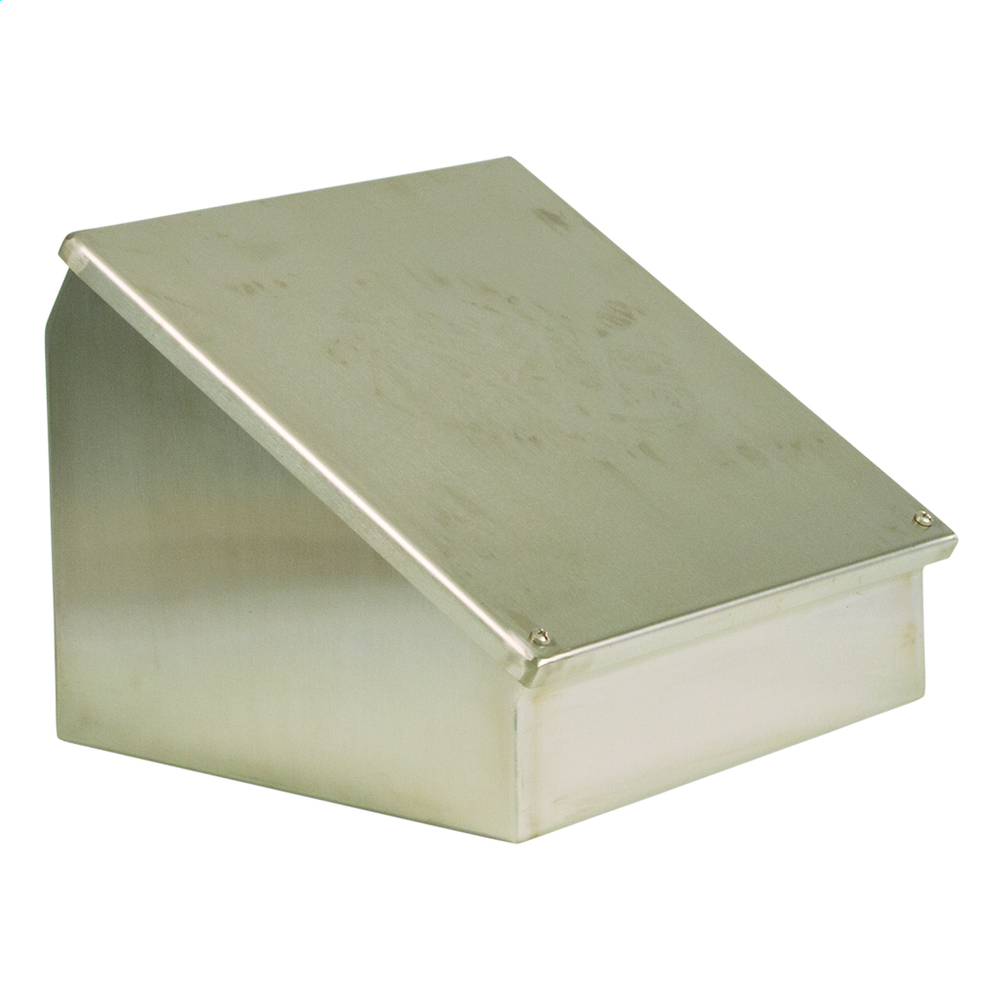

Wiegmann WC16C24SS
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
N12 Operator Interface Consolet 16X24 304 Stainles SteelN12 Operator Interface Consolet 16X24 304 Stainles Steel
Wiegmann WC16C24SS is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- Certified Listed
- cULus
- EU RoHS Indicator
- Yes
- Listings
- UL, CSA
Specifications
- Actual Depth
- 11.09 in
- Application
- Designed to house a variety of electronic control or instrumentation devices. Consolets provide protection from dust, dirt, oil, and water. Flexible design allows for mounting on either of two sides, creating control surfaces of 30 degrees or 60 degrees.
- ARRA Compliant
- Contact Manufacturer
- Base Unit of Measure
- EA
- BOX SIZE
- 16.000x11.090x24.000 (in)
- Buy American Compliant
- Contact Manufacturer
- Carton - Gross Weight per Pack
- 35.000 lb.
- Carton - Number of Sub Packs
- 1
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725849512
- Carton - Total Units
- 1
- Class Code
- P03
- Construction
- Continuously Welded Seams
- Country of Origin
- US
- Cover Type
- Screw Cover
- Cubic Capacity
- 4224 cu.in
- Depth
- 11 in
- Description - Invoice
- CONSOLETS,OIL-TIGHT,SS,16"X24"
- Each - Width
- 24.000 in
- Freight Class Code
- 06316009
- Harmonization Code
- 7326908688
- Height
- 16 in
- Image Actual Or Representative
- R
- Knockouts
- No
- Lead Time
- 21 wk
- Material
- Stainless Steel
- Mounting
- Grounding Provisions
- Mounting Type
- Grounding Provisions
- MSDS Flag
- No
- Nema Rating
- 12
- NEMA Rating
- 12
- Order Multiple
- 1 EA
- Returnable Indicator
- Yes
- Series
- WC-SS
- Special Features
- Bodies and doors fabricated from 14 gauge 304 stainless steel. Continuously welded seams ground smooth, less knockouts or holes. Captive cover screws thread into sealed wells. Control panel is continuously hinged along bottom edge. Closed cell oil resistant neoprene gasket. Grounding provisions included.
- Standard
- cULus
- Stock Indicator
- S - Shelf Stock
- Sub Class Code
- P03P050
- Type
- Console
- UL Listed
- Yes
- Weight
- 35 lb.
- Width
- 24.000 in
