Wiegmann WC1248BD
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

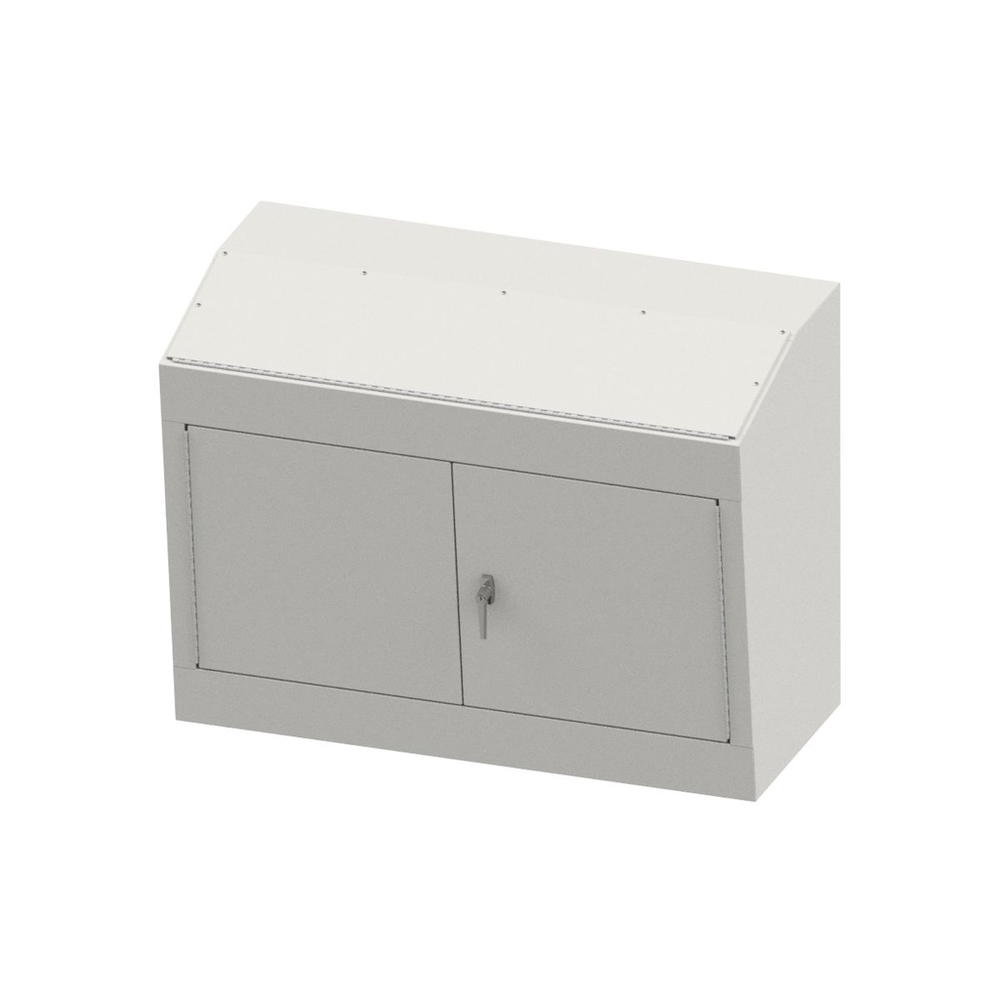

N12 Double Door Console Body 36X48X20 Carbon Steel - GrayN12 Double Door Console Body 36X48X20 Carbon Steel - Gray
Wiegmann WC1248BD is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- Certified Listed
- cULus
- EU RoHS Indicator
- Yes
- Listings
- UL, CSA
Specifications
- Actual Depth
- 20.13 in
- Actual Height
- 36.130 in
- Actual Width
- 48.13 in
- Application
- Designed to hold electrical and electronic controls and instruments. Pushbuttons, pilot lights, meters, switches, etc., can be mounted on sloping control surfaces. Interior components can be mounted on standard back panel and terminal straps. Heavy duty c
- ARRA Compliant
- Contact Manufacturer
- Base Unit of Measure
- EA
- BOX SIZE
- 36.130x20.130x48.130 (in)
- Buy American Compliant
- Contact Manufacturer
- Carton - Gross Weight per Pack
- 230.000 lb.
- Carton - Number of Sub Packs
- 1
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725443406
- Carton - Total Units
- 1 EA
- Class Code
- P02
- Color
- Ansi-61 Gray Textured
- Construction
- Continuously Welded Seams
- Country of Origin
- US
- Cover Type
- Door
- Cubic Capacity
- 34560 cu.in
- Depth
- 20 in
- Description - Invoice
- CONSOLE,OT,CS,BODY,36"X48"X20"
- Each - Width
- 48.130 in
- Finish
- Polyester Powder
- Finish Type
- Polyester Powder
- Freight Class Code
- 06111001
- Harmonization Code
- 7326908688
- Height
- 36 in
- Image Actual Or Representative
- R
- Latches Type
- 3-Point Keylocking Handle
- Lead Time
- 21 wk
- Material
- Carbon Steel
- MSDS Flag
- No
- Nema Rating
- 12
- NEMA Rating
- 12
- Number of Doors (Fixed)
- 2
- Order Multiple
- 1 EA
- Returnable Indicator
- Yes
- Series
- WC12
- Special Features
- Bodies and doors fabricated from 14 gauge steel. Seams are continuously welded and ground smooth. 3-point keylocking handle is provided on front, main door. Double overlapping doors are provided. Main hinged doors are flush. Large sloping control panels are hinged along the bottom edge. Control panels have captive screws which thread into sealed wells. Grounding provisions included. Door stops provided to hold control panel open. Print pocket is provided. Closed cell neoprene gasket is provided. Removable back panel included with console. Studs are welded to inside of console for mounting back panel.
- Standard
- cULus
- Stock Indicator
- S - Shelf Stock
- Sub Class Code
- P02P036
- Type
- Console Body
- UL Listed
- Yes
- Weight
- 230 lb.
- Width
- 48.130 in
