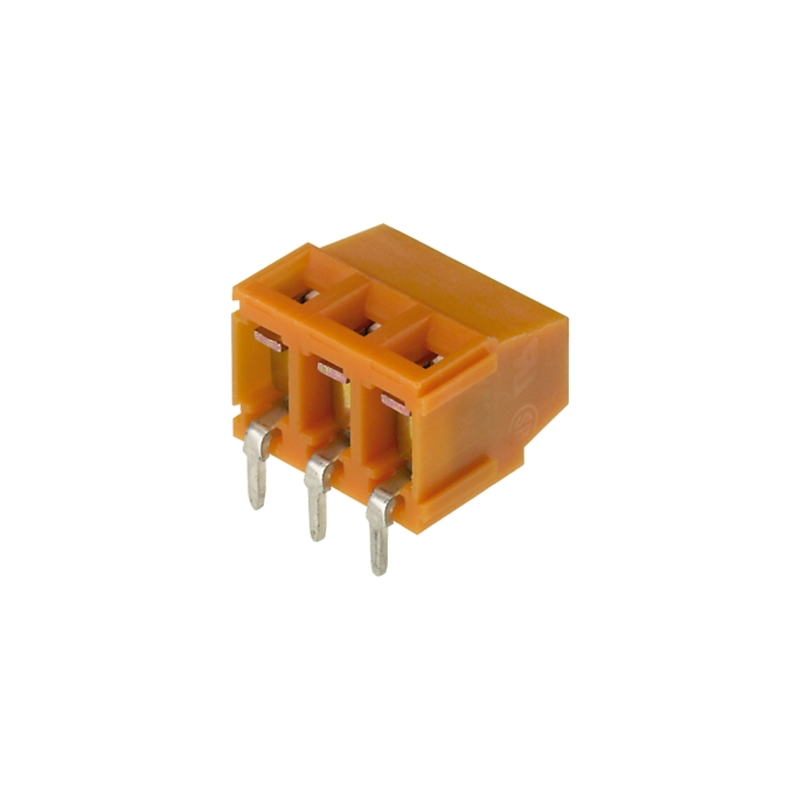

Weidmuller 9995020000

Approvals

• Approvals
  • CSA, cURus, EAC
• ROHS
  • Conform
• UL File Number Search
  • E60693

Classifications

• eClass 10.0
  • 27-44-04-01
• eClass 9.0
  • 27-44-04-01
• eClass 9.1
  • 27-44-04-01
• ETIM 6.0
  • EC002643
• ETIM 7.0
  • EC002643
• UNSPSC
  • 30-21-18-01

Conductors Suitable For Connection

• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.2 mm²
• Flexible, max. H05(07) V-K
  • 2.5 mm²
• Flexible, min. H05(07) V-K
  • 0.2 mm²
• Max. clamping range
  • 2.5 mm²
• Plug gauge in accordance with EN 60999 a x b; ø
  • 2.4 mm x 1.5 mm; 1.9mm
• Solid, max. H05(07) V-U
  • 2.5 mm²
• Solid, min. H05(07) V-U
  • 0.2 mm²
• Wire connection cross section AWG, max.
  • AWG 14
• Wire connection cross section AWG, min.
  • AWG 24
• w. plastic collar ferrule, DIN 46228 pt 4, max.
  • 1.5 mm²
• w. plastic collar ferrule, DIN 46228 pt 4, min.
  • 0.25 mm²
• w. wire end ferrule, DIN 46228 pt 1, max.
  • 1.5 mm²
• w. wire end ferrule, DIN 46228 pt 1, min.
  • 0.25 mm²

Dimensions And Weights

• Depth
  • 14.2 mm
• Depth (inches)
  • 0.559 inch
• Height
  • 13.5 mm
• Height (inches)
  • 0.531 inch
• Height of lowest version
  • 10 mm
• Net weight
  • 11.04 g
• Width
  • 46.27 mm
• Width (inches)
  • 1.822 inch

Material Data

• Coating
  • 1-3 μm Ni, 4-6 μm SN
• Colour
  • orange
• Colour chart (similar)
  • RAL 2000
• Comparative Tracking Index (CTI)
  • ≥ 600
• Contact material
  • Copper alloy
• Contact surface
  • tinned
• GWFI
  • 960 °C
• GWIT
  • 960 °C
• Insulating material
  • Wemid (PA)
• Insulating material group
  • I
• Insulation strength
  • ≥ 108 Ω
• Layer structure of solder connection
  • 1-3 µm Ni / 4-6 µm Sn matt
• Max. relative humidity during storage
  • 80 %
• Operating temperature, max.
  • 120 °C
• Operating temperature, min.
  • -50 °C
• Storage temperature, max.
  • 55 °C
• Storage temperature, min.
  • -25 °C
• Temperature range, installation, max.
  • 120 °C
• Temperature range, installation, min.
  • -25 °C
• Tinning type
  • matt
• UL 94 flammability rating
  • V-0

Notes

• IPC conformity
  • Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
• Notes
  • Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.

Packing

• Packaging
  • Box
• VPE height
  • 225 mm
• VPE length
  • 40 mm
• VPE width
  • 110 mm

Rated Data Acc. To Csa

• Certificate No. (CSA)
  • 200039-1815154
• Institute (CSA)
  • CSA
• Rated current (Use group B / CSA)
  • 18 A
• Rated current (Use group D / CSA)
  • 10 A
• Rated voltage (Use group B / CSA)
  • 300 V
• Rated voltage (Use group D / CSA)
  • 300 V
• Reference to approval values
  • Specifications are maximum values, details - see approval certificate.
• Wire cross-section, AWG, max.
  • AWG 14
• Wire cross-section, AWG, min.
  • AWG 24

Rated Data Acc. To Iec

• Rated current, max. number of poles (Tu=20°C)
  • 16 A
• Rated current, max. number of poles (Tu=40°C)
  • 14.2 A
• Rated current, min. number of poles (Tu=20°C)
  • 17.5 A
• Rated current, min. number of poles (Tu=40°C)
  • 17.5 A
• Rated impulse voltage for surge voltage class/ contamination degree III/3
  • 4 kV
• Rated impulse voltage for surge voltage class/ pollution degree II/2
  • 4 kV
• Rated impulse voltage for surge voltage class/ pollution degree III/2
  • 4 kV
• Rated voltage for surge voltage class / pollution degree II/2
  • 630 V
• Rated voltage for surge voltage class / pollution degree III/2
  • 320 V
• Rated voltage for surge voltage class / pollution degree III/3
  • 250 V
• Short-time withstand current resistance
  • 3 x 1s with 120 A
• tested acc. to standard
  • IEC 60664-1, IEC 61984

Rated Data Acc. To Ul 1059

• Certificate No. (cURus)
  • E60693
• Institute (cURus)
  • cURus
• Rated current (Use group B / UL 1059)
  • 15 A
• Rated current (Use group D / UL 1059)
  • 10 A
• Rated voltage (Use group B / UL 1059)
  • 300 V
• Rated voltage (Use group D / UL 1059)
  • 300 V
• Reference to approval values
  • Specifications are maximum values, details - see approval certificate.
• Wire cross-section, AWG, max.
  • AWG 14
• Wire cross-section, AWG, min.
  • AWG 24

System Parameters

• Clamping screw
  • M 2.5
• Conductor outlet direction
  • 180°
• Fitted by customer
  • Yes
• Insulation strength
  • ≥ 108 Ω
• L1 in inches
  • 1.6 inch
• L1 in mm
  • 40.64 mm
• Max. adjacent poles per row
  • 24
• Mounting onto the PCB
  • THT solder connection
• Number of poles
  • 9
• Number of rows
  • 1
• Number of solder pins per pole
  • 1
• Pitch in inches (P)
  • 0.2 inch
• Pitch in mm (P)
  • 5.08 mm
• Product family
  • OMNIMATE Signal - series LM
• Screwdriver blade
  • 0.6 x 3.5
• Screwdriver blade standard
  • DIN 5264
• Solder eyelet hole diameter (D)
  • 1.3 mm
• Solder eyelet hole diameter tolerance (D)
  • + 0,1 mm
• Solder pin dimensions
  • 0.95 x 0.8 mm
• Solder pin length (l)
  • 3.5 mm
• Stripping length
  • 6 mm
• Tightening torque, max.
  • 0.5 Nm
• Tightening torque, min.
  • 0.4 Nm
• Touch-safe protection acc. to DIN VDE 0470
  • IP 10
• Touch-safe protection acc. to DIN VDE 57 106
  • Safe from finger touch
• Volume resistance
  • 1.20 mΩ
• Wire connection method
  • Clamping yoke connection
