Weidmuller 9918870000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

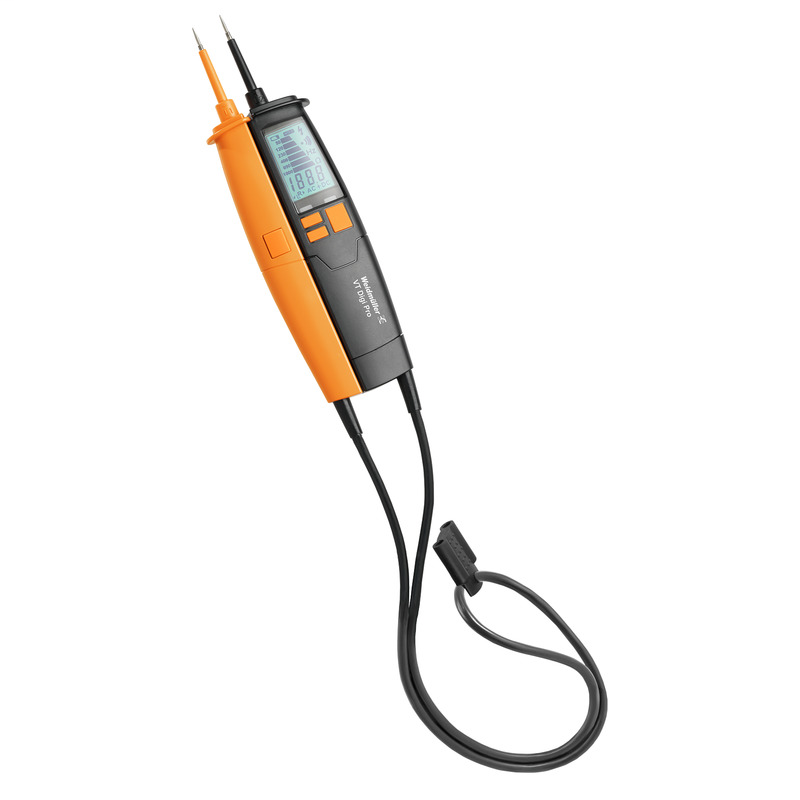

2-pole voltage tester type 1152VT DIGI PRO
Weidmuller 9918870000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-20-03-08
- eClass 9.0
- 27-20-03-08
- eClass 9.1
- 27-20-03-08
- ETIM 6.0
- EC000494
- ETIM 7.0
- EC000494
- UNSPSC
- 41-11-36-37
Dimensions And Weights
- Depth
- 67 mm
- Depth (inches)
- 2.638 inch
- Height
- 33 mm
- Height (inches)
- 1.299 inch
- Net weight
- 444 g
- Weight
- 295 g
- Width
- 264 mm
- Width (inches)
- 10.394 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Measuring And Testing Devices
- AC voltage display
- 1 - 1,000 V
- AC voltage measuring range
- 1 - 1,000 V
- Battery type
- 1.5 V type AAA battery
- Continuity test
- Yes - visual + acoustic
- DC voltage display
- 1 - 1,000 V
- DC voltage measuring range
- 1000 V
- Display
- LCD digital
- Frequency measurement
- Yes
- Frequency range, max.
- 400 Hz
- Frequency range, min.
- 16 Hz
- Input resistance, voltage
- On operating the double switch ≥ 300 kΩ
- Insulation test
- 8 kV
- Measuring range category
- CAT III 1.000V / CAT IV 600V
- Note
- Screw-on, thicker test probes
- Peak voltage resistance
- 8 kV
- Protection degree
- IP65
- Rated voltage, max.
- 1000 V AC/DC
- Rated voltage, min.
- 1 V
- RCD circuit breaker
- The selectable load enables conscious triggering of a 30 mA RCD circuit breaker
- Tested and approved according to
- IEC 61243-3:2014 (DIN EN 61243-3:2015-08)
- Working temperature, max.
- 55 °C
- Working temperature, min.
- -15 °C
