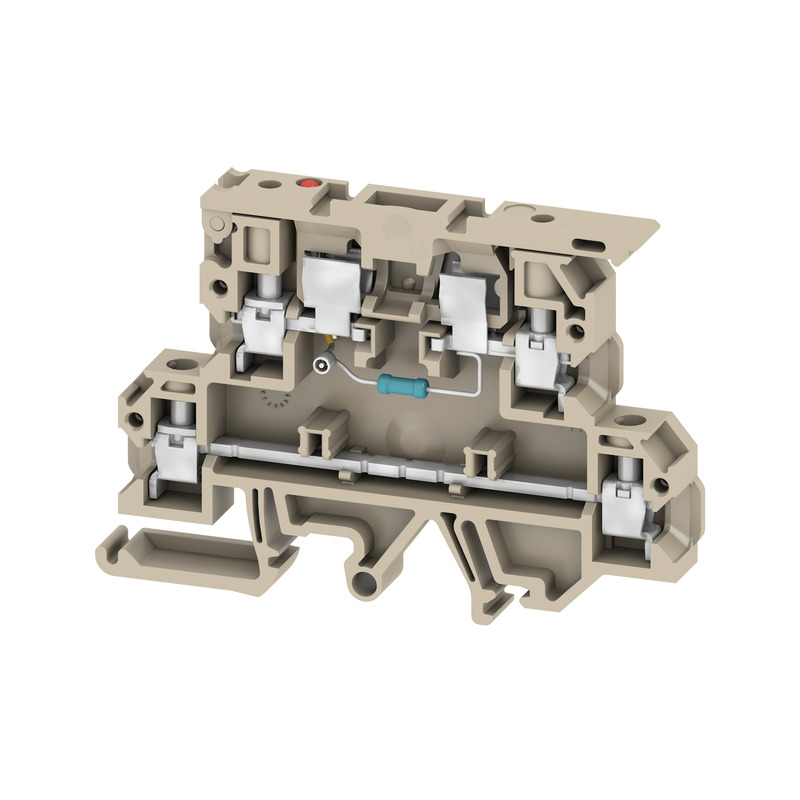

Weidmuller 9908510001

Additional Technical Data

• Open sides
  • right

Approvals

• Approvals
  • CSA, UR
• ROHS
  • Conform
• UL File Number Search
  • E60693

Classifications

• eClass 10.0
  • 27-14-11-16
• eClass 9.0
  • 27-14-11-16
• eClass 9.1
  • 27-14-11-16
• ETIM 6.0
  • EC000899
• ETIM 7.0
  • EC000899

Conductors For Clamping (Rated Connection)

• Blade size
  • 0.6 x 3.5 mm
• Clamping range, max.
  • 4 mm²
• Clamping range, min.
  • 0.22 mm²
• Clamping screw
  • M 3
• Connection cross-section, finely stranded, max.
  • 4 mm²
• Connection cross-section, finely stranded, min.
  • 0.5 mm²
• Connection cross-section, stranded, max.
  • 4 mm²
• Connection cross-section, stranded, min.
  • 1.5 mm²
• Connection direction
  • on side
• Gauge to IEC 60947-1
  • A3
• Tightening torque, max.
  • 0.8 Nm
• Tightening torque, min.
  • 0.5 Nm
• Twin wire-end ferrules, max.
  • 1.5 mm²
• Twin wire-end ferrules, min.
  • 0.5 mm²
• Type of connection
  • Screw connection
• Wire connection cross section, finely stranded, max.
  • 4 mm²
• Wire connection cross-section, finely stranded, min.
  • 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
  • 4 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
  • 0.5 mm²
• Wire connection cross-section, solid core, max.
  • 4 mm²
• Wire connection cross-section, solid core, min.
  • 0.5 mm²

Csa Rating Data

• Certificate No. (CSA)
  • 200039-70000261
• Current size B (CSA)
  • 25 A
• Current size C (CSA)
  • 25 A
• Current size D (CSA)
  • 10 A
• Voltage size B (CSA)
  • 300 V
• Voltage size C (CSA)
  • 150 V
• Voltage size D (CSA)
  • 300 V
• Wire cross section max. (CSA)
  • 12 AWG
• Wire cross section min. (CSA)
  • 26 AWG

Dimensions And Weights

• Depth
  • 54.6 mm
• Depth (inches)
  • 2.15 inch
• Height
  • 76.5 mm
• Height (inches)
  • 3.012 inch
• Net weight
  • 20.694 g
• Width
  • 8 mm
• Width (inches)
  • 0.315 inch

Fuse Terminals

• Cartridge fuse
  • G-Si. 5 x 20
• Display
  • Red LED
• Leakage current, max.
  • 0.192 mA
• Power loss for overload and short-circuit protection for a composite arrangement
  • 1.6 W at 6.3 A @ 23°C
• Power loss for overload and short-circuit protection for an individual arrangement
  • 1.6 W at 6.3 A @ 29°C
• Power loss for short-circuit protection only for a composite arrangement
  • 2.5 W at 6.3 A @ 41°C
• Power loss for short-circuit protection only for an individual arrangement
  • 4.0 W at 6.3 A @ 44°C

Material Data

• Colour
  • dark beige
• Material
  • Wemid
• UL 94 flammability rating
  • V-0

Pe Rating Data

• PEN function
  • No

Rating Data

• Pollution severity
  • 3
• Power loss in accordance with IEC 60947-7-x
  • 1.02 W
• Rated cross-section
  • 4 mm²
• Rated current
  • 6.3 A
• Rated voltage
  • 70 V
• Rated voltage to adjoining terminal
  • 500 V
• Surge voltage category
  • III
• Volume resistance according to IEC 60947-7-x
  • 1 mΩ

Safety Note

• Safety notice
  • Safety Information

System Specifications

• End cover plate required
  • Yes
• Levels cross-connected internally
  • No
• N-function
  • No
• Number of clamping points per level
  • 2
• Number of levels
  • 2
• Number of potentials
  • 2
• Number of potentials per tier
  • 1
• PE connection
  • No
• PE function
  • No
• PEN function
  • No
• Rail
  • TS 32, TS 35

Temperatures

• Storage temperature
  • 10 °C...40 °C
• Storage temperature, max.
  • 40 °C
• Storage temperature, min.
  • 10 °C

Ul Rating Data

• Certificate No. (UR)
  • E60693
• Conductor size Factory wiring max. (UR)
  • 12 AWG
• Conductor size Factory wiring min. (UR)
  • 26 AWG
• Conductor size Field wiring max. (UR)
  • 12 AWG
• Conductor size Field wiring min. (UR)
  • 22 AWG
• Current size B (UR)
  • 20 A
• Current size C (UR)
  • 20 A
• Voltage size B (UR)
  • 250 V
• Voltage size C (UR)
  • 300 V
