Weidmuller 9802730000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

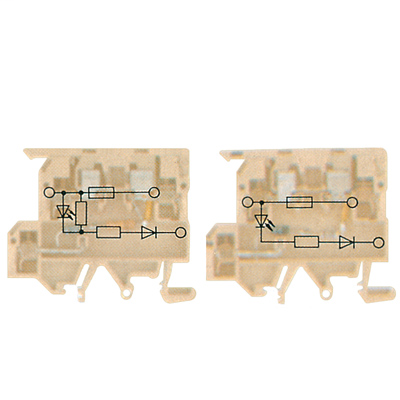

SAK Series, Fuse terminal, Rated cross-section: 4 mm², Direct mountingKDKS1LD/24 GFH DDECK FUSE TERM
Weidmuller 9802730000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Installation advice
- Direct mounting
- Type of mounting
- Snap-on
Approvals
- Approvals
- CE, EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-16
- eClass 9.0
- 27-14-11-16
- eClass 9.1
- 27-14-11-16
- ETIM 6.0
- EC000899
- ETIM 7.0
- EC000899
Conductors For Clamping (Rated Connection)
- Number of connections
- 3
Dimensions And Weights
- Depth
- 55.5 mm
- Depth (inches)
- 2.185 inch
- Height
- 62.75 mm
- Height (inches)
- 2.47 inch
- Net weight
- 23.04 g
- Width
- 8 mm
- Width (inches)
- 0.315 inch
Material Data
- Material
- PA 66
- UL 94 flammability rating
- V-2
Rating Data
- Power loss in accordance with IEC 60947-7-x
- 1.02 W
- Rated cross-section
- 4 mm²
Safety Note
- Safety notice
- Safety Information
System Specifications
- Levels cross-connected internally
- No
- Number of clamping points per level
- 2
- Number of levels
- 2
- PE connection
- No
- Rail
- TS 35, TS 32
- Version
- Screw connection, Fuse cartridge, with LED, One end without connector
Temperatures
- Continuous operating temp., max.
- 100 °C
- Continuous operating temp., min.
- -50 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
