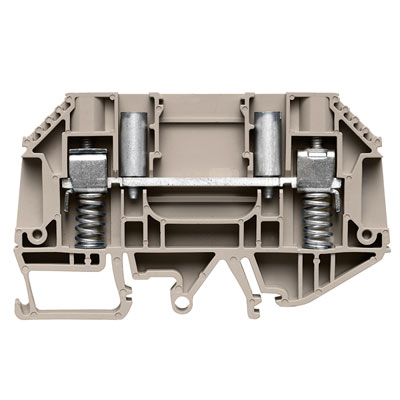

Weidmuller 9538100000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
W-Series, Feed-through terminal, Rated cross-section: 6 mm², Screw connectionWTD 6 SL/EN
Weidmuller 9538100000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Explosion-tested version
- No
- Number of similar terminals
- 1
- Open sides
- right
- Type of mounting
- Snap-on
Approvals
- Approvals
- EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-26
- eClass 9.0
- 27-14-11-26
- eClass 9.1
- 27-14-11-26
- ETIM 6.0
- EC000902
- ETIM 7.0
- EC000902
- UNSPSC
- 30-21-18-11
Conductors For Clamping (Rated Connection)
- Blade size
- 0.8 x 4.0 mm
- Clamping range, max.
- 6 mm²
- Clamping range, min.
- 0.5 mm²
- Clamping screw
- M 3.5
- Connection cross-section, stranded, max.
- 6 mm²
- Connection direction
- on side
- Gauge to IEC 60947-1
- A5
- Number of connections
- 2
- Stripping length
- 16 mm
- Tightening torque, max.
- 1.6 Nm
- Tightening torque, min.
- 0.8 Nm
- Type of connection
- Screw connection
- Wire connection cross section, finely stranded, max.
- 6 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 6 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Dimensions And Weights
- Depth
- 49.5 mm
- Depth (inches)
- 1.949 inch
- Depth including DIN rail
- 51.5 mm
- Height
- 82.7 mm
- Height (inches)
- 3.256 inch
- Net weight
- 27.2 g
- Width
- 7.9 mm
- Width (inches)
- 0.311 inch
Disconnect Terminals
- Cross-disconnect
- without
- Integral test socket
- Yes
- Slitting
- without
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Material Data
- Colour
- dark beige
- Material
- Wemid
- UL 94 flammability rating
- V-0
Rating Data
- Current at maximum wires
- 57 A
- Pollution severity
- 2
- Power loss in accordance with IEC 60947-7-x
- 1.31 W
- Rated cross-section
- 6 mm²
- Rated current
- 41 A
- Rated impulse withstand voltage
- 6 kV
- Rated voltage
- 630 V
- Standards
- IEC 60947-7-1
- Surge voltage category
- III
- Volume resistance according to IEC 60947-7-x
- 0.78 mΩ
Safety Note
- Safety notice
- Safety Information
System Specifications
- End cover plate required
- Yes
- Levels cross-connected internally
- No
- N-function
- No
- Number of clamping points per level
- 2
- Number of levels
- 1
- Number of potentials
- 1
- Number of potentials per tier
- 1
- PE connection
- No
- PE function
- No
- PEN function
- No
- Rail
- TS 32, TS 35
- Version
- Screw connection, with spring-loaded cable clamp, With sockets, One end without connector
Temperatures
- Continuous operating temp., max.
- 120 °C
- Continuous operating temp., min.
- -50 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
