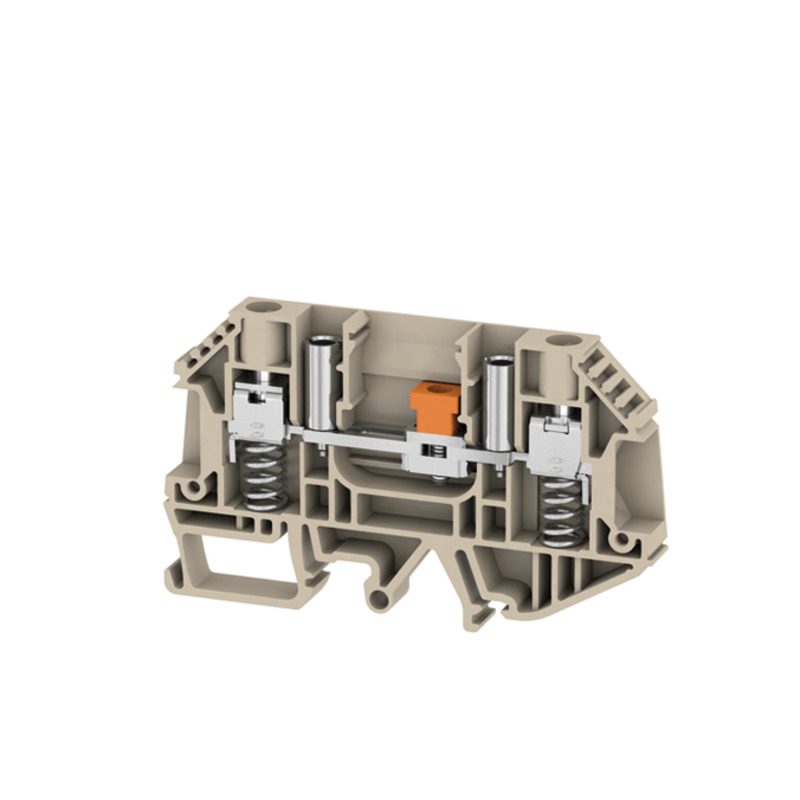

Weidmuller 9538080000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
W-Series, Test-disconnect terminal, Rated cross-section: 6 mm², Screw connectionWTL 6 SL/EN
Weidmuller 9538080000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Explosion-tested version
- No
- Open sides
- right
- Type of mounting
- Snap-on
Approvals
- Approvals
- EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-26
- eClass 9.0
- 27-14-11-26
- eClass 9.1
- 27-14-11-26
- ETIM 6.0
- EC000902
- ETIM 7.0
- EC000902
- UNSPSC
- 30-21-18-11
Conductors For Clamping (Rated Connection)
- Blade size
- 0.8 x 4.0 mm
- Clamping range, max.
- 6 mm²
- Clamping range, min.
- 0.5 mm²
- Clamping screw
- M 3.5
- Connection cross-section, stranded, max.
- 6 mm²
- Connection direction
- on side
- Gauge to IEC 60947-1
- A5
- Number of connections
- 2
- Stripping length
- 16 mm
- Tightening torque, max.
- 1.6 Nm
- Tightening torque, min.
- 0.8 Nm
- Type of connection
- Screw connection
- Wire connection cross section, finely stranded, max.
- 6 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 6 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Dimensions
- TS 32 offset
- 41.5 mm
- TS 35 offset
- 32 mm
Dimensions And Weights
- Depth
- 49.5 mm
- Depth (inches)
- 1.949 inch
- Depth including DIN rail
- 51.5 mm
- Height
- 82.7 mm
- Height (inches)
- 3.256 inch
- Net weight
- 31.14 g
- Width
- 7.9 mm
- Width (inches)
- 0.311 inch
Disconnect Terminals
- Cross-disconnect
- without
- Integral test socket
- No
- Slitting
- without
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Material Data
- Colour
- dark beige
- Material
- Wemid
- UL 94 flammability rating
- V-0
Rating Data
- Current at maximum wires
- 57 A
- Pollution severity
- 2
- Power loss in accordance with IEC 60947-7-x
- 1.31 W
- Rated cross-section
- 6 mm²
- Rated current
- 41 A
- Rated impulse withstand voltage
- 6 kV
- Rated voltage
- 630 V
- Standards
- IEC 60947-7-1
- Surge voltage category
- III
- Volume resistance according to IEC 60947-7-x
- 0.78 mΩ
Safety Note
- Safety notice
- Safety Information
System Specifications
- End cover plate required
- Yes
- Levels cross-connected internally
- No
- N-function
- No
- Number of clamping points per level
- 2
- Number of levels
- 1
- Number of potentials
- 1
- Number of potentials per tier
- 1
- PE connection
- No
- PE function
- No
- PEN function
- No
- Rail
- TS 32, TS 35
- Version
- Screw connection, Special terminal longitudinal isolator, with spring-loaded cable clamp, With sockets, One end without connector
Temperatures
- Continuous operating temp., max.
- 120 °C
- Continuous operating temp., min.
- -50 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
