Weidmuller 9535760000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

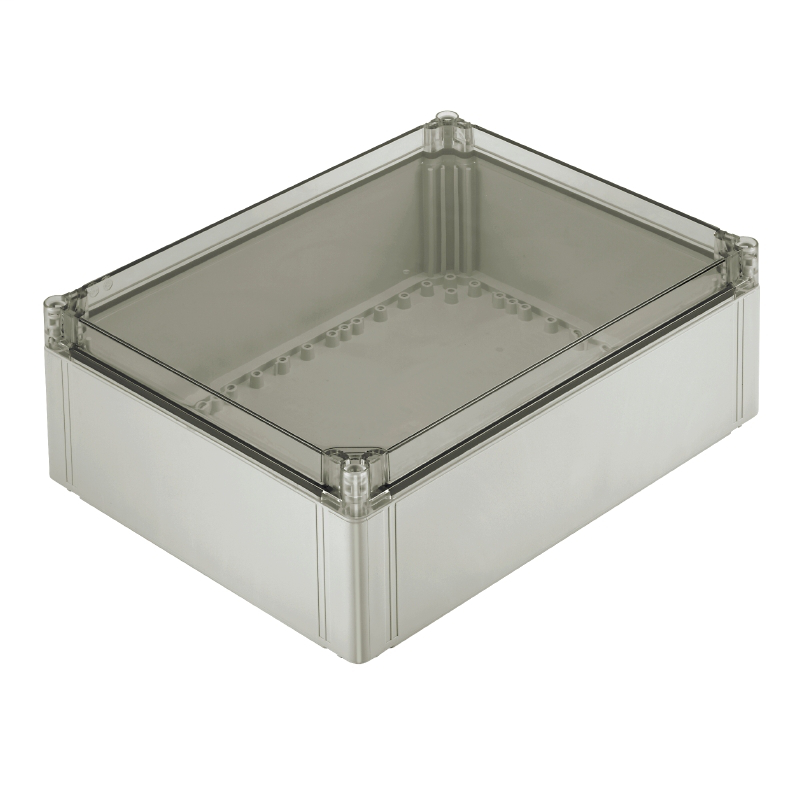

FPC (polycarbonate empty enclosure), Empty enclosure, Height: 300 mm, Width: 400 mm, Depth: 132 mm, Material: Polycarbonate, Light Grey, TransparentFPC 30/40/13 TRSP
Weidmuller 9535760000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
- ROHS
- Conform
Cable Glands, Right
- M12
- 38
- M16
- 21
- M20
- 12 ???New14???
- M25
- 8
- M32
- 3
- M40
- 3
- M50
- 2
- M63
- 2
Cable Glands, Top/Bottom
- M12
- 56 ???New14???
- M16
- 30 ???New14???
- M20
- 18
- M25
- 12 ???New14???
- M32
- 5
- M40
- 4
- M50
- 4
- M63
- 3
Classifications
- eClass 10.0
- 27-18-01-01
- eClass 9.0
- 27-18-01-01
- eClass 9.1
- 27-18-92-90
- ETIM 6.0
- EC000261
- ETIM 7.0
- EC000261
- UNSPSC
- 31-26-15-02
Dimensions And Weights
- Depth
- 132 mm
- Depth (inches)
- 5.197 inch
- Height
- 300 mm
- Height (inches)
- 11.811 inch
- Net weight
- 2,620 g
- Weight
- 2,199 g
- Width
- 400 mm
- Width (inches)
- 15.748 inch
General Information
- Areas of use
- Building systems and technology, Transportation, Packaging industry, Machine construction
- Enclosure attachment
- Holes 7.5 mm
- Integral fixing
- thanks to self-tapping screws
- Lid attachment
- 4 polyamide crosshead screws
- Material
- Polycarbonate
- Operating temperature, max.
- 130 °C
- Operating temperature, min.
- -50 °C
- Protection degree
- IP66, IP67
- Seal material
- Polyurethane
- Torque for lid screws
- 0.8 Nm
General Information On Accessories
- Material
- Polycarbonate
Horizontal Assembly
- WDU 10 / ZDU 10
- 1x30
- WDU 16 / ZDU 16
- 1x25
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 1x59
- WDU 35 / ZDU 35
- 1x19
- WDU 4 / ZDU 4
- 1x49
- WDU 6 / ZDU 6
- 1x37
Vertical Assembly
- WDU 10 / ZDU 10
- 3x20
- WDU 16 / ZDU 16
- 3x17
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 3x40
- WDU 35 / ZDU 35
- 3x12
- WDU 4 / ZDU 4
- 3x33
- WDU 6 / ZDU 6
- 3x25
