Description

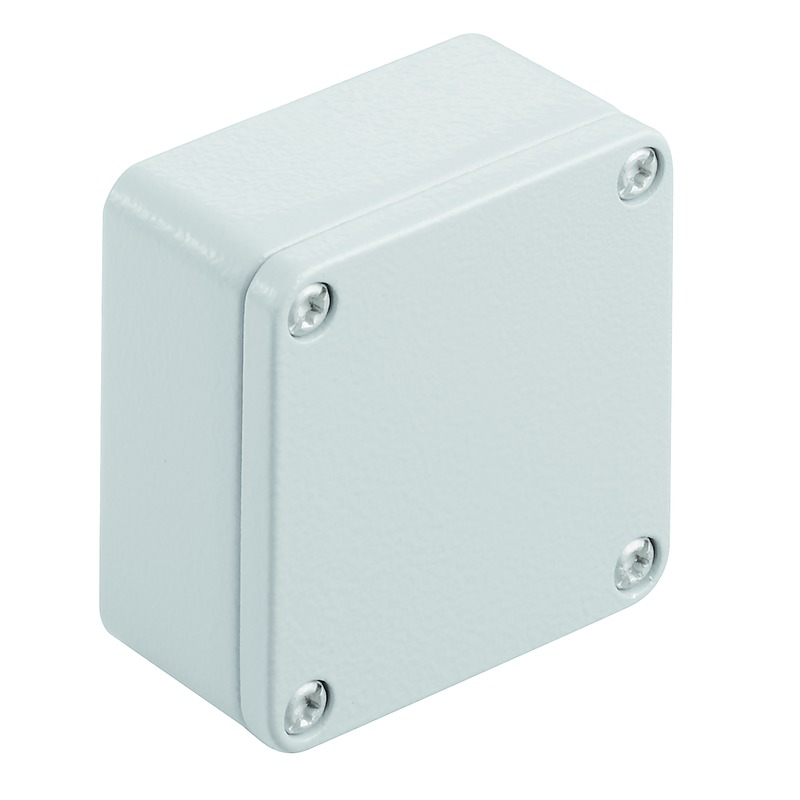

Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 64 mm, Width: 58 mm, Depth: 34 mm, Material: Aluminium AlSi12, Powder-coated, textured, Silver greyKLIPPON K01 RAL7001
Weidmuller 9529100000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, CULUS, DNV GL, EAC, MARITREG
- ROHS
- Conform
- UL File Number Search
- E197061
Cable Glands, Left
- M12
- 1
- M16
- 1
Cable Glands, Right
- M12
- 1
- M16
- 1
Cable Glands, Top/Bottom
- M12
- 1
- M16
- 1
Certificate Numbers Enclosure
- Certificate no. (cULus)
- E197061
- Certificate No. (GERMLLOYD)
- TAE00002SM
- Certificate No. (MARITREG)
- 14.40040.250
Classifications
- eClass 10.0
- 27-18-01-01
- eClass 9.0
- 27-18-01-01
- eClass 9.1
- 27-18-92-90
- ETIM 6.0
- EC000261
- ETIM 7.0
- EC000261
- UNSPSC
- 31-26-15-02
Dimensions And Weights
- Depth
- 34 mm
- Depth (inches)
- 1.339 inch
- Height
- 64 mm
- Height (inches)
- 2.52 inch
- Mounting dimension - height
- 36 mm
- Mounting dimension - width
- 58 mm
- Net weight
- 150.6 g
- Weight
- 120 g
- Width
- 58 mm
- Width (inches)
- 2.283 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Information
- Areas of use
- Process industry, Transportation, Marine engineering, Packaging industry, Harbour facilities, Machine construction
- Assembled to fit rail
- 7906080000
- Enclosure attachment
- Holes 4 mm
- Impact resistance
- 10.00 J
- Integral fixing
- Threaded holes M3
- Lid attachment
- M4 torx stainless steel screws with slot
- Material
- Aluminium AlSi12
- Material thickness
- 3.1 mm
- Material thickness of cover
- 2.5 mm
- Material thickness of enclosure
- 3.1 mm
- Note: protection class
- IP68 (t=72h, h=1m)
- Operating temperature, max.
- 80 °C
- Operating temperature, min.
- -40 °C
- Protection degree
- IP66, IP67, IP68
- Seal material
- Chloroprene
- Surface finish
- Powder-coated, textured
- Torque for lid screws
- 2.5 Nm
Horizontal Assembly
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 1x1*
- WDU 4 / ZDU 4
- 1x1*
Vertical Assembly
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 1x1*
- WDU 4 / ZDU 4
- 1x1*
