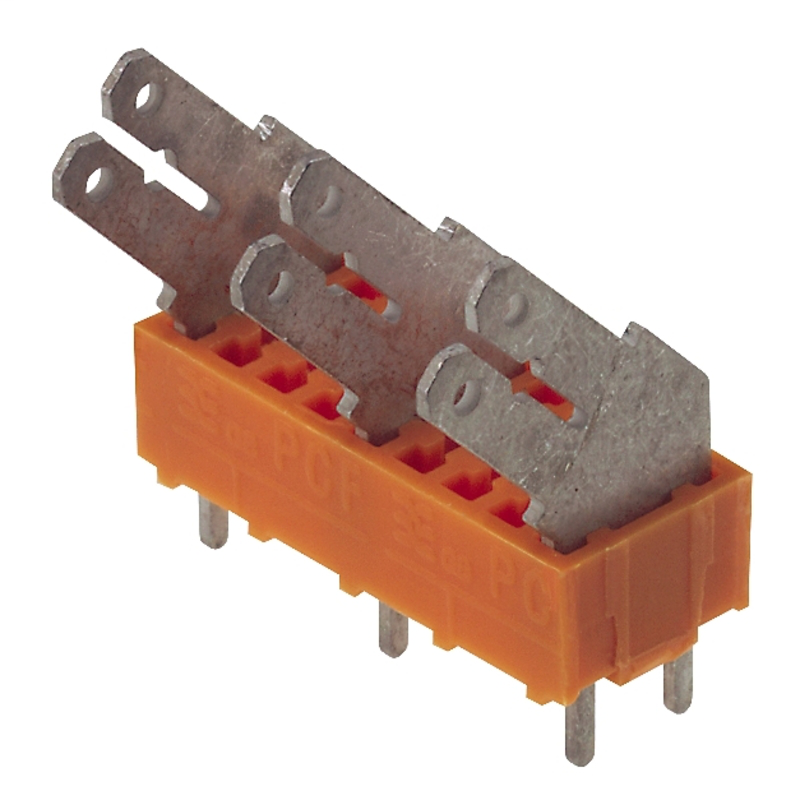

Weidmuller 9512160000

Approvals

• Approvals
  • CSA
• ROHS
  • Conform

Classifications

• eClass 10.0
  • 27-44-04-01
• eClass 9.0
  • 27-44-04-01
• eClass 9.1
  • 27-44-04-01
• ETIM 6.0
  • EC002643
• ETIM 7.0
  • EC002643
• UNSPSC
  • 30-21-18-01

Dimensions And Weights

• Depth
  • 9.8 mm
• Depth (inches)
  • 0.386 inch
• Height
  • 21.4 mm
• Height (inches)
  • 0.843 inch
• Height of lowest version
  • 17.9 mm
• Net weight
  • 11.04 g
• Width
  • 84.8 mm
• Width (inches)
  • 3.339 inch

Material Data

• Colour
  • orange
• Colour chart (similar)
  • RAL 2000
• Comparative Tracking Index (CTI)
  • ≥ 600
• Contact material
  • CuSn
• Contact surface
  • tinned
• Insulating material
  • PA
• Insulating material group
  • I
• Insulation strength
  • ≥ 108 Ω
• Layer structure of solder connection
  • 1.5-3 µm Ni / 5-7 µm Sn
• Max. relative humidity during storage
  • 80 %
• Operating temperature, max.
  • 100 °C
• Operating temperature, min.
  • -50 °C
• Storage temperature, max.
  • 55 °C
• Storage temperature, min.
  • -25 °C
• Temperature range, installation, max.
  • 100 °C
• Temperature range, installation, min.
  • -25 °C
• UL 94 flammability rating
  • V-2

Notes

• IPC conformity
  • Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Packing

• Packaging
  • Box
• VPE height
  • 165 mm
• VPE length
  • 60 mm
• VPE width
  • 110 mm

Rated Data Acc. To Csa

• Certificate No. (CSA)
  • 12400-282
• Institute (CSA)
  • CSA
• Rated current (Use group B / CSA)
  • 15 A
• Rated current (Use group C / CSA)
  • 15 A
• Rated current (Use group D / CSA)
  • 10 A
• Rated voltage (Use group B / CSA)
  • 300 V
• Rated voltage (Use group C / CSA)
  • 300 V
• Rated voltage (Use group D / CSA)
  • 300 V
• Reference to approval values
  • Specifications are maximum values, details - see approval certificate.

Rated Data Acc. To Iec

• Rated current, max. number of poles (Tu=20°C)
  • 26 A
• Rated current, max. number of poles (Tu=40°C)
  • 22 A
• Rated current, min. number of poles (Tu=20°C)
  • 24 A
• Rated current, min. number of poles (Tu=40°C)
  • 24 A
• Rated impulse voltage for surge voltage class/ contamination degree III/3
  • 6 kV
• Rated impulse voltage for surge voltage class/ pollution degree II/2
  • 6 kV
• Rated impulse voltage for surge voltage class/ pollution degree III/2
  • 6 kV
• Rated voltage for surge voltage class / pollution degree II/2
  • 1,000 V
• Rated voltage for surge voltage class / pollution degree III/2
  • 690 V
• Rated voltage for surge voltage class / pollution degree III/3
  • 690 V
• Short-time withstand current resistance
  • 3 x 1s mit 192 A
• tested acc. to standard
  • IEC 60664-1, IEC 61984

Rated Data Acc. To Ul 1059

• Rated current (Use group B / UL 1059)
  • 15 A
• Rated current (Use group C / UL 1059)
  • 15 A
• Rated current (Use group D / UL 1059)
  • 10 A
• Rated voltage (Use group B / UL 1059)
  • 300 V
• Rated voltage (Use group C / UL 1059)
  • 300 V
• Rated voltage (Use group D / UL 1059)
  • 300 V

System Parameters

• Conductor outlet direction
  • 135°
• Fitted by customer
  • No
• Insulation strength
  • ≥ 108 Ω
• L1 in inches
  • 3.15 inch
• L1 in mm
  • 80 mm
• Mounting onto the PCB
  • THT solder connection
• Number of poles
  • 9
• Number of rows
  • 1
• Number of solder pins per pole
  • 2
• Pitch in inches (P)
  • 0.394 inch
• Pitch in mm (P)
  • 10 mm
• Product family
  • PCF
• Solder eyelet hole diameter (D)
  • 1.3 mm
• Solder eyelet hole diameter tolerance (D)
  • + 0,1 mm
• Solder pin dimensions
  • 0.8 x 1.0 mm
• Solder pin length (l)
  • 3.5 mm
• Touch-safe protection acc. to DIN VDE 0470
  • IP 00
• Volume resistance
  • 1.20 mΩ
• Wire connection method
  • Flat-blade connection
