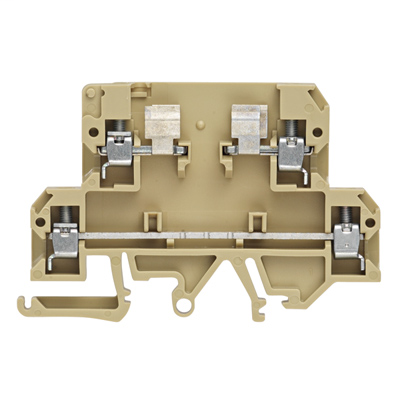

Weidmuller 9509640000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SAK Series, Fuse terminal, Rated cross-section: 4 mm², Screw connection, Direct mountingKDKS 1/EN4 O.TNHE
Weidmuller 9509640000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Explosion-tested version
- No
- Installation advice
- Direct mounting
- Number of similar terminals
- 1
- Open sides
- right
- Type of mounting
- Snap-on
Approvals
- Approvals
- CE, EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-16
- eClass 9.0
- 27-14-11-16
- eClass 9.1
- 27-14-11-16
- ETIM 6.0
- EC000899
- ETIM 7.0
- EC000899
- UNSPSC
- 30-21-18-11
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, max.
- 4 mm²
- Clamping range, min.
- 0.33 mm²
- Clamping screw
- M 3
- Connection direction
- on side
- Gauge to IEC 60947-1
- A3
- Number of connections
- 3
- Stripping length
- 9 mm
- Tightening torque, max.
- 1 Nm
- Tightening torque, min.
- 0.5 Nm
- Torque level with DMS electric screwdriver
- 2
- Type of connection
- Screw connection
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section AWG, min.
- AWG 22
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 4 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Dimensions And Weights
- Depth
- 65 mm
- Depth (inches)
- 2.559 inch
- Height
- 91 mm
- Height (inches)
- 3.583 inch
- Net weight
- 20.28 g
- Width
- 8 mm
- Width (inches)
- 0.315 inch
Fuse Terminals
- Cartridge fuse
- G-Si. 5 x 20
Material Data
- Colour
- beige / yellow
- Material
- PA 66
- UL 94 flammability rating
- V-2
Pe Rating Data
- PEN function
- No
Rating Data
- Current at maximum wires
- 6.3 A
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 1.02 W
- Rated cross-section
- 4 mm²
- Rated current
- 6.3 A
- Rated impulse withstand voltage
- 6 kV
- Rated voltage
- 500 V
- Standards
- IEC 60947-7-1 (-7-2)
- Volume resistance according to IEC 60947-7-x
- 1 mΩ
Safety Note
- Safety notice
- Safety Information
System Specifications
- End cover plate required
- Yes
- Levels cross-connected internally
- No
- N-function
- No
- Number of clamping points per level
- 2
- Number of levels
- 2
- Number of potentials
- 2
- Number of potentials per tier
- 1
- PE connection
- No
- PE function
- No
- PEN function
- No
- Rail
- TS 35
- Version
- Screw connection, Fuse isolator, One end without connector
Temperatures
- Continuous operating temp., max.
- 100 °C
- Continuous operating temp., min.
- -50 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
