Description

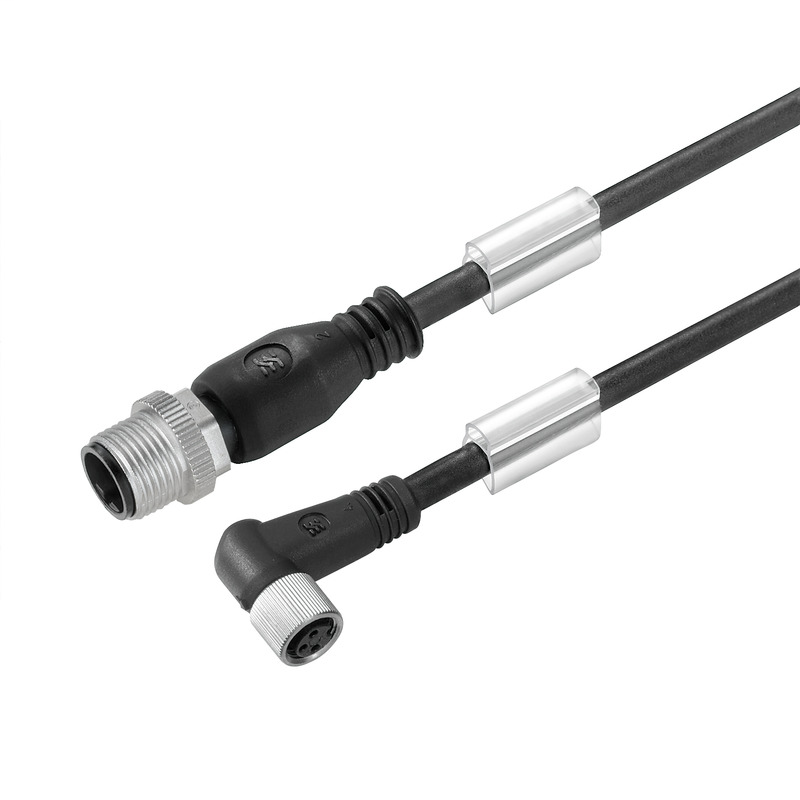

Sensor/actuator line, Connecting line, Number of poles : 3, 8.5 m, Shielded: No, LED: No, Sheath material: PUR, Halogen: NoSAIL-M12GM8W-3-8.5U
Weidmuller 9457980850 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-06-03-11
- eClass 9.0
- 27-06-03-11
- eClass 9.1
- 27-06-03-11
- ETIM 6.0
- EC001855
- ETIM 7.0
- EC001855
Dimensions And Weights
- Net weight
- 510 g
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Technical Data
- AF size
- 12 mm
- Contact surface
- Gold-plated
- Housing main material
- PUR
- Insulation strength
- 108 Ω
- LED
- No
- Plugging cycles
- ≥ 100
- Pollution severity
- 3
- Rated current
- 4 A
- Rated voltage
- 60 V
- Temperature range of housing
- -25…+80 °C
- Threaded ring material
- Diecast zinc
Technical Specifications For Cable
- Acceleration
- 5 m/s²
- Bending cycles
- 2 Mio
- Bending radius, min., moving
- 10 x cable diameter
- Bending radius, min., stationary
- 5 x cable diameter
- Cable length
- 8.5 m
- Colour coding
- brown, blue, black
- Configurable cable length
- No
- Core cross-section
- 0.25 mm²
- Core in accordance with UL AWM style
- 10493 (80 °C / 300 V)
- Halogen
- No
- Hydrolysis and microbe resistant
- Yes
- Insulation
- PP
- Number of poles
- 3
- Outer cladding in accordance with UL AWM style
- 20233/21198 (80 °C / 300 V)
- Outside diameter
- 4.1 ± 0.2 mm
- Resistance to oils
- in accordance with IEC 60811:404
- Resistance to spread of flame
- In accordance with UL1581 UL/ CUL FT1, in accordance with IEC 60332-1-2, in accordance with IEC 60332-1-3, in accordance with IEC 60332-2-2
- Resistant to welding beads
- No
- Sheathing colour
- black
- Sheath material
- PUR
- Shielded
- No
- Speed
- 5 m/s
- Suitable for cable carriers
- Yes
- Temperature range, moving
- -25...80 °C
- Temperature range, stationary
- -40...80 °C
- Torsion resistance
- 360 °/m
