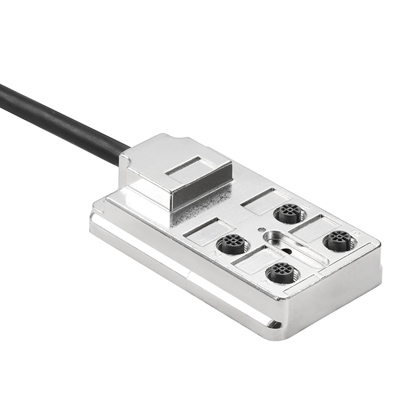

Weidmuller 9456200002
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
SAI Passive, Sensor-actuator passive distributor, M12, Fixed cable version, 10 m, NoSAI-4-FMM-4P M12 10M
Weidmuller 9456200002 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-44-01-08
- eClass 9.0
- 27-44-01-08
- eClass 9.1
- 27-44-01-08
- ETIM 6.0
- EC002585
- ETIM 7.0
- EC002585
- UNSPSC
- 30-21-18-01
Connection Data
- Distributor outlet
- Fixed cable version
- Sheathing stripping length
- 100 mm
Dimensions And Weights
- Depth
- 102 mm
- Depth (inches)
- 4.016 inch
- Height
- 26.15 mm
- Height (inches)
- 1.03 inch
- Net weight
- 1,266.67 g
- Width
- 60 mm
- Width (inches)
- 2.362 inch
Electrical Data
- Current per signal
- 2 A
- Electrical isolation available
- No
- Insulation strength
- 109 Ω
- Max. current-carrying capacity per slot
- 4 A
- Rated voltage, max.
- 30 V
- Rated voltage, min.
- 10 V
- Test voltage
- 1 kV
- Total current
- 9 A
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Technical Data
- Connection thread
- M12
- Fire behaviour
- V-0
- LED
- No
- Number of contact sockets
- 4
- Number of poles
- 4
- Plugging cycles
- ≤ 50
- Pollution severity
- 3
- Protection degree
- IP68
Material Data
- Contact carrier material
- PBT (UL 94 V0)
- Contact material
- CuZn
- Contact surface
- Gold-plated
- Hood sealing material
- Polyurethane foamed
- Housing colour
- silver
- Housing main material
- Zinc diecast
- Material of distributor
- metal
- Screw socket
- Nickel-plated CuZn
Technical Data Cable
- Bending cycles
- 2 Mio
- Bending radius, min., moving
- 10 x cable diameter
- Cable length
- 10 m
- Colour coding
- white, green, grey, yellow, blue, brown, Green/yellow
- Halogen
- No
- Number of poles
- 4
- O.D.
- 7.5 mm
- Sheathing colour
- black
- Sheath material
- PUR
- Shielded
- No
- Suitable for cable carriers
- Yes
- Wire cross section
- 16 x 0.34 mm² + 3 x 1.0 mm²
Temperatures
- Operating temperature
- -20 - 90°C
- Operating temperature, max.
- 90 °C
- Operating temperature, min.
- -20 °C
- Operating temperature range, max.
- 90 °C
- Operating temperature range, min.
- -20 °C
