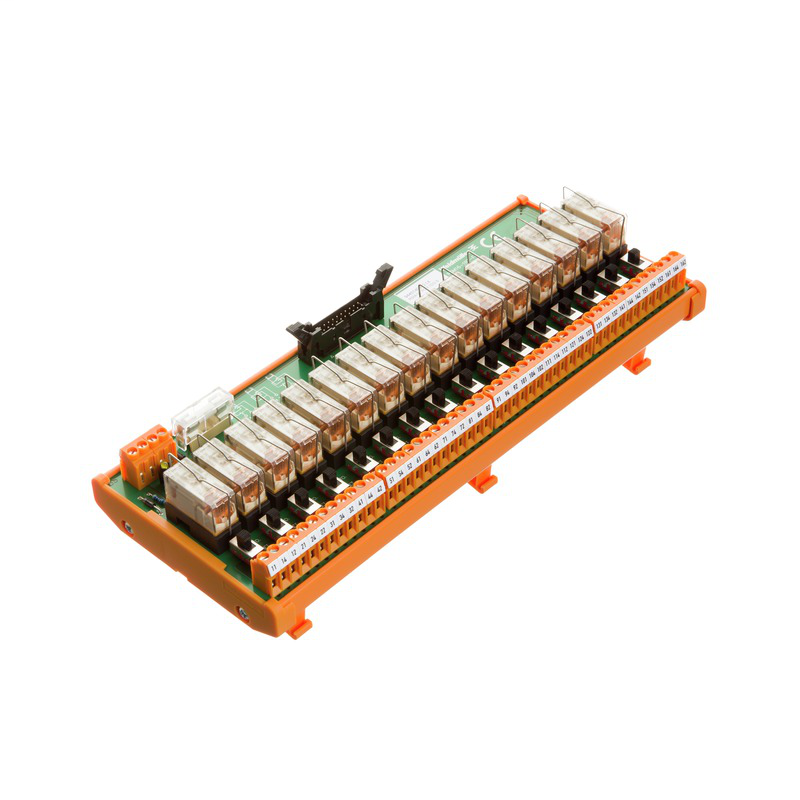

Weidmuller 9445140000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Interface, RSM, 16 with switch, RCL, Screw connectionRSM-16 FOR 1CO S
Weidmuller 9445140000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-52
- eClass 9.0
- 27-14-11-52
- eClass 9.1
- 27-24-22-16
- ETIM 6.0
- EC002780
- ETIM 7.0
- EC002780
- UNSPSC
- 30-21-18-01
Connection Data
- Connection (field side)
- LP 5.08mm
- Connection on control side
- Plug-in connector in acc. with IEC60603-13 / DIN41651
- Connection supply
- LP 5.08mm
- Connection to PLC
- HE 10 connector - 20 pole
- Number of poles (control side)
- 20-pole plug
Connection Field
- Clamping range, max.
- 6 mm²
- Clamping range, min.
- 0.13 mm²
- Flexible, max. H05(07) V-K
- 4 mm²
- Flexible, min. H05(07) V-K
- 0.5 mm²
- Flexible with sleeve, max.
- 2.5 mm²
- Flexible with sleeve, min.
- 0.5 mm²
- Max. wire cross-section, AWG
- AWG 12
- Min. wire cross-section, AWG
- AWG 26
- Sleeve with plastic collar, max.
- 2.5 mm²
- Solid, max. H05(07) V-U
- 6 mm²
- Solid, min. H05(07) V-U
- 0.5 mm²
- Stripping length
- 6 mm
- Tightening torque, max.
- 0.6 Nm
- Tightening torque, min.
- 0.5 Nm
- Type of connection
- Screw connection
Dimensions And Weights
- Height
- 75 mm
- Height (inches)
- 2.953 inch
- Length
- 263 mm
- Length (inches)
- 10.354 inch
- Net weight
- 905 g
- Width
- 109 mm
- Width (inches)
- 4.291 inch
General Data
- Fuse per relay
- No
- LED status display per relay
- green
- LED status of the supply voltage
- yellow
- Power supply fuse
- 3.15 A
Insulation Coordinates (En50178)
- According to
- DIN EN 50178
- Clearance input/input
- ≥ 0.2 mm
- Clearance input/output
- ≥ 5.5 mm
- Clearance output/output
- ≥ 1.17 mm
- Insulation test voltage
- 1.2 kVAC
- Overvoltage category input/input
- III
- Overvoltage category input/output
- III
- Overvoltage category output/output
- II
- Pollution severity level
- 2
- Pulse voltage test (1,2/50μs)
- 6 kV
- Rated input insulation voltage
- < 50 V AC
- Rated output insulation voltage
- < 250 V AC
Rating Data
- Mechanical service life
- 3 x 107 switching cycles
Ratings Data Input
- Input current
- 17 mA
- Input voltage
- 24 V DC ± 10%
- Power rating
- 0.4 VA
Ratings Data Output
- AC peak current
- 16 A
- Contact material
- AgNi 90/10
- Max. AC continuous current
- 2 A
- Minimum contact current
- 0.01 A
- Minimum contact voltage
- 10 V
- Rated voltage (text)
- ≤ 250 Vdc ≤ 250 Vac
- Relay type
- RCL
- Type of output
- Potential-free contact
Supply Connection
- Clamping range, max.
- 6 mm²
- Clamping range, min.
- 0.13 mm²
- Ferrule with plastic collar, max.
- 2.5 mm²
- Flexible, max. H05(07) V-K
- 4 mm²
- Flexible, min. H05(07) V-K
- 0.5 mm²
- Flexible with sleeve, max.
- 2.5 mm²
- Flexible with sleeve, min.
- 0.5 mm²
- Solid, max. H05(07) V-U
- 6 mm²
- Solid, min. H05(07) V-U
- 0.5 mm²
- Stripping length
- 6 mm
- Tightening torque, max.
- 0.6 Nm
- Tightening torque, min.
- 0.5 Nm
- Type of connection
- Screw connection
- Wire cross-section, max. AWG
- AWG 12
- Wire cross-section, min. AWG
- AWG 26
Temperatures
- Operating temperature
- -25...40 °C
- Operating temperature, max.
- 40 °C
- Operating temperature, min.
- -25 °C
- Storage temperature
- -40...60 °C
- Storage temperature, max.
- 60 °C
- Storage temperature, min.
- -40 °C
