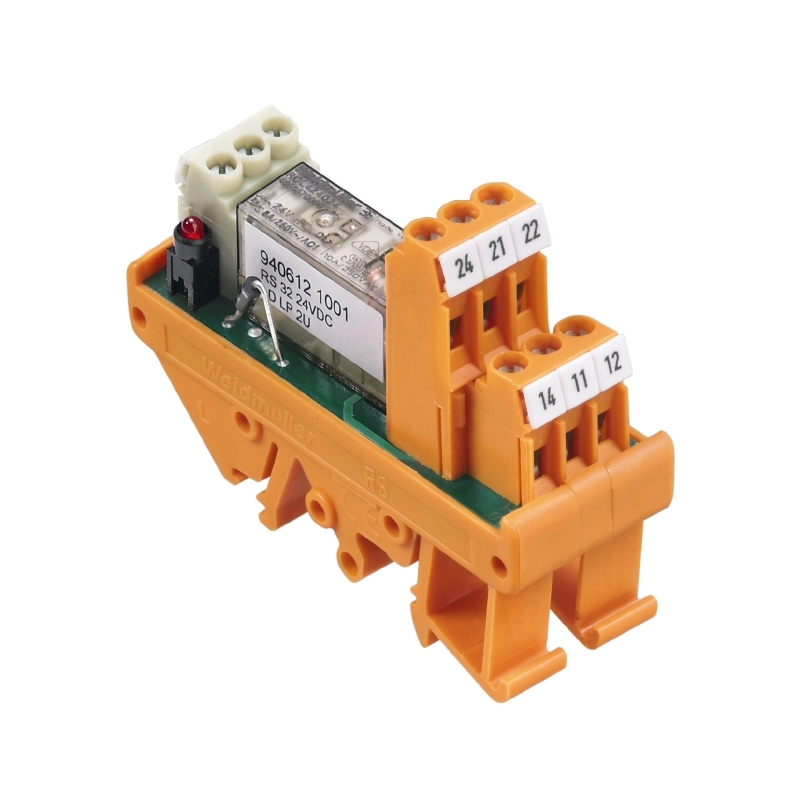

Weidmuller 9406321001
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Weidmuller 9406321001 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CSA
- MARITREG
- EAC
- CE
- ROHS
- Conform
Classifications
- eClass 5.1
- 27-37-16-01
- eClass 6.2
- 27-37-16-01
- eClass 7.1
- 27-37-16-01
- eClass 8.1
- 27-37-16-01
- eClass 9.0
- 27-37-16-01
- eClass 9.1
- 27-37-16-01
- ETIM 3.0
- EC001437
- ETIM 4.0
- EC001437
- ETIM 5.0
- EC001437
- ETIM 6.0
- EC001437
- UNSPSC
- 30-21-19-17
Connection Data
- Clamping range, rated connection
- 2.5 mm²
- Clamping range, rated connection, max.
- 4 mm²
- Clamping range, rated connection, min.
- 0.5 mm²
- Stripping length, rated connection
- 8 mm
- Wire connection method
- Screw connection
Contact Data
- Contact type
- 2 CO contact (AgNi 90/10)
- Mechanical service life
- switching cycles
- 30 x 10
Dimensions And Weights
- Depth
- 63.5 mm
- Depth (inches)
- 2.5 inch
- Height
- 70 mm
- Height (inches)
- 2.756 inch
- Net weight
- 50.7 g
- Width
- 25 mm
- Width (inches)
- 0.984 inch
Further Details Of Approvals / Standards
- Certificate No. (CSA)
- 082859-C-000
- Standards
- DIN EN 50178
General Data
- Mechanical switch position indicator
- No
- Mounting rail
- TS 32, TS 35
- Test button
- No
- Version
- soldered relay
General Ordering Data
- Alternative product
- 1123610000
- Available until
- 2017-12-31
- Delivery status
- This article will no longer be available in the future.
- GTIN (EAN)
- 4032248046171
- Order No.
- 9406321001
- Qty.
- 10 pc(s).
- Type
- RS 32 48VDC LD LP 2U
- Version
- RS-SERIES, Relay module, No. of contacts: 2 CO contact AgNi 90/10, Rated control voltage: 48 V DC ±10 %, Continuous current: 4 A, Screw connection
Input
- Power rating
- 0.6 W
- Pull-in/drop-out current, typ.
- 2 mA DC
- Pull-in/drop-out voltage, typ.
- 43 V DC
- Rated control voltage
- 48 V DC ± 10 %
- Rated current DC
- 12 mA
- Status indicator
- red LED
Insulation Coordination
- Creepage and clearance distance input – output
- > 3 mm
- Impulse withstand voltage
- 4 kV
- Pollution severity
- 2
- Protection degree
- IP20
- Rated voltage
- 250 V
- Surge voltage category
- III
Output
- AC switching capacity (resistive), max.
- 2000 VA
- Continuous current
- 4 A
- Duration of Bounce
- ≤ 4 ms
- Inrush current
- 6 A
- Max. switching frequency at rated load
- 0.1 Hz
- Max. switching voltage, AC
- 250 V
- Min. switching power
- 1 mA @ 24 V, 10 mA @ 10 V, 100 mA / 5 V DC
- Rated switching voltage
- 250 V AC
- Switch-off delay
- = 10 ms
- Switch-on delay
- < 13 ms
Temperatures
- Humidity
- 40 °C / 93 % rel. humidity, no condensation
- Operating temperature
- -25 °C...40 °C
- Storage temperature
- -40 °C...60 °C
