Weidmuller 8951810000

Approvals

• Approvals
  • CE, CSAEX, EAC, IECEXDEK, KEMAATEX
• ROHS
  • Conform

Classifications

• eClass 10.0
  • 27-13-08-03
• eClass 9.0
  • 27-13-08-03
• eClass 9.1
  • 27-13-08-07
• ETIM 6.0
  • EC000472
• ETIM 7.0
  • EC000472
• UNSPSC
  • 30-21-19-21

Connection Data

• Blade size
  • 0.6 x 3.5 mm
• Clamping range, max.
  • 4 mm²
• Clamping range, min.
  • 0.5 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.
  • 2.5 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.
  • 0.5 mm²
• Connection cross-section, stranded, max.
  • 2.5 mm²
• Connection cross-section, stranded, min.
  • 0.5 mm²
• Stripping length, rated connection
  • 7 mm
• Tightening torque, max.
  • 0.8 Nm
• Tightening torque, min.
  • 0.5 Nm
• Type of connection
  • Screw connection
• Wire connection cross section, finely stranded, max.
  • 2.5 mm²
• Wire cross-section, solid, max.
  • 4 mm²
• Wire cross-section, solid, min.
  • 0.5 mm²

Csa Protection Data

• Gas group C
  • IIB
• Gas group D
  • IIA
• Gas groups A, B
  • IIC
• Input current, max. I
  • 250 mA
• Internal capacity, max. C
  • 0 nF
• Internal inductance, max. L
  • 0 µH

Dimensions And Weights

• Depth
  • 69 mm
• Depth (inches)
  • 2.717 inch
• Height
  • 90 mm
• Height (inches)
  • 3.543 inch
• Net weight
  • 71 g
• Width
  • 17.8 mm
• Width (inches)
  • 0.701 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

Further Details Of Approvals

• GOST certificate
  • GOST-Zertifikat

General Data

• Colour
  • Light Blue
• Design
  • Terminal, miscellaneous
• Optical function display
  • No
• Protection degree
  • IP20
• Rail
  • TS 35, TS 35 x 7.5
• Segment
  • Measurement - Monitoring - Setting
• UL 94 flammability rating
  • V-0
• Version
  • Flange-mounted housing

Insulation Coordination Acc. To En 50178

• Pollution severity
  • 2
• Surge voltage category
  • III

Protection Ex - Data

• ATEX - dust labelling
  • II 1 D Ex ia IIIC T135 °C …T85 °C Da
• ATEX - gas labelling
  • II 1 G Ex ia IIC T4… T6 Ga
• Certificate No. (ATEX)
  • KEMA10ATEX0148X
• IECEx - dust labelling
  • II 1 D Ex ia IIIC T135 °C …T85 °C Da
• IECEx - gas labelling
  • II 1 G Ex ia IIC T4… T6 Ga
• Internal inductance, max. L
  • 0 µH

Rated Data Iec / En

• Dielectric strength at FG against PE
  • ≥ 500 V
• Leakage current at U
  • 0 µA
• Rated current I
  • 450 mA
• Signalling contact
  • No
• Standards
  • IEC 61643-21, IEC 62305, DIN EN 60079-0.2009, DIN EN 60079-11:2007, DIN EN 60079-26:2007, DIN EN 61241-11:2006
• Voltage type
  • AC/DC

Rated Data Ul

• UL certificate
  • UL 497b Certificate

Ratings Iecex/Atex/Cul

• ATEX certificate
  • ATEX Certificate
• Certificate No. (ATEX)
  • KEMA10ATEX0148X
• cUL certificate
  • cUL Certificate
• IEC Ex certificate
  • IECEX Zertifikat

Temperatures

• Humidity
  • 5...96 %
• Operating temperature
  • -40 °C...70 °C
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • -40 °C
• Storage temperature
  • -40 °C...80 °C
• Storage temperature, max.
  • 80 °C
• Storage temperature, min.
  • -40 °C

Tender Specification Sheets

• Long specification

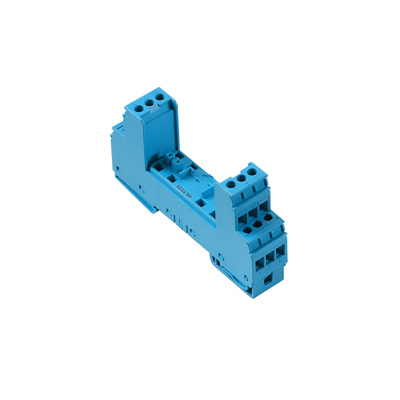

  • Base element for a single floating-ground powered paired cable. With the installation of the base element a contact is established between mounting rail and the integrated sparkover gap. Through this sparkover gap, a high impedance connection between the ground of the protective switch in the protective plug and the earth potential is made. Mechanical coding of the base element to the protected plug according to switching type and rated voltage. Suitable for ATEX applications. The base unit is coded itself by the first insertion of a protected plug. Mechanical coding of the base element to the protected plug according to switching type and rated voltage. The base unit is coded itself by the first insertion of a protected plug. Possible to mark all terminals
• Short specification
  • Base element to receive a protected plug for one floating-ground powered paired cable, integrated sparkover gap for high impedance connection between the ground of the plug's protective circuit and the earth potential. Suitable for ATEX applications.
