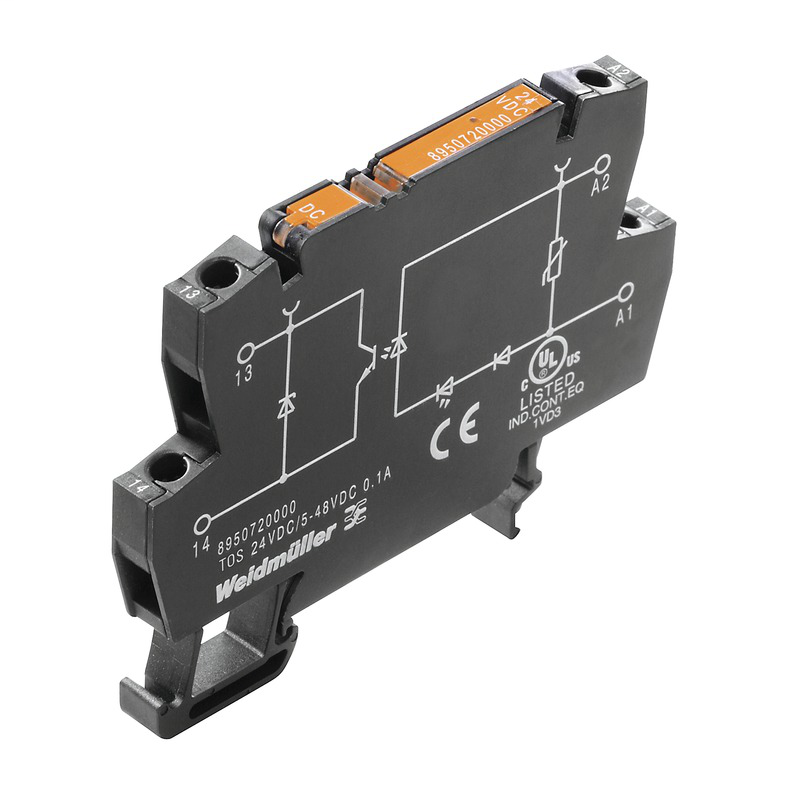

Weidmuller 8950950000

Approvals

• Approvals
  • CE, CULUS, EAC
• ROHS
  • Conform
• UL File Number Search
  • E223474

Classifications

• eClass 10.0
  • 27-37-16-04
• eClass 9.0
  • 27-37-16-04
• eClass 9.1
  • 27-37-16-04
• ETIM 6.0
  • EC001504
• ETIM 7.0
  • EC001504

Connection Data

• Blade size
  • 0.6 x 3.5 mm
• Clamping range, max.
  • 4 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping range, rated connection
  • 2.5 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.
  • 1.5 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.
  • 0.5 mm²
• Stripping length, rated connection
  • 9 mm
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.4 Nm
• Wire connection cross section AWG, max.
  • AWG 12
• Wire connection cross section AWG, min.
  • AWG 20
• Wire connection cross section, finely stranded, max.
  • 2.5 mm²
• Wire connection cross-section, finely stranded, min.
  • 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
  • 1.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
  • 0.5 mm²
• Wire connection method
  • Screw connection
• Wire cross-section, finely stranded, max. (AWG)
  • AWG 12
• Wire cross-section, finely stranded, min. (AWG)
  • AWG 20
• Wire cross-section, solid, max.
  • 4 mm²
• Wire cross-section, solid, min.
  • 0.5 mm²

Contact Data

• Contact type
  • 1 NO contact (Transistor)

Control Side

• Cut-in / dropout voltage
  • 187 V / 55 V DC
• Nominal control current
  • 1.65 mA DC
• Power rating
  • ≤ 360 mW
• Protective circuit
  • Varistor, Reverse polarity protection
• Rated control voltage
  • 220 V DC +10 % / -15 %
• Status indicator
  • Green LED

Dimensions And Weights

• Depth
  • 55 mm
• Depth (inches)
  • 2.165 inch
• Height
  • 74.4 mm
• Height (inches)
  • 2.929 inch
• Net weight
  • 20.9 g
• Width
  • 6.1 mm
• Width (inches)
  • 0.24 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

Further Details Of Approvals / Standards

• Certificate no. (cULus)
  • E223474
• Standards
  • DIN EN 50178, IEC 62314, UL508

General Data

• Colour
  • black
• Rail
  • TS 35
• UL 94 flammability rating
  • V-0

Insulation Coordination

• Clearance and creepage distances for control side - load side
  • > 3 mm
• Dielectric strength for control side - load side
  • 1.2 kVeff / 1 min.
• Impulse withstand voltage
  • 4 kV (1.2/50 µs)
• Pollution severity
  • 2
• Protection degree
  • IP20
• Rated voltage
  • 300 V
• Surge voltage category
  • III

Load Side

• Continuous current
  • 500 mA
• Leakage current
  • < 10 µA
• Load category
  • DC1
• max. switching frequency (DC control voltage)
  • 200 Hz
• Protective circuit, load side
  • Free-wheeling diode
• Rated switching current
  • 500 mA
• Rated switching voltage
  • 5...48 V DC
• Short-circuit-proof
  • No
• Switch-off delay
  • < 340 µs
• Switch-on delay
  • < 18 µs
• Voltage drop at max. load
  • < 1 V

Probability Of Failure

• MTTF
  • 2,500 Years

Ratings Iecex/Atex/Cul

• Certificate no. (cULus)
  • E223474

Temperatures

• Humidity
  • 5-95% relative humidity, Tu = 40°C, without condensation
• Operating temperature
  • -20 °C...60 °C
• Operating temperature, max.
  • 60 °C
• Operating temperature, min.
  • -20 °C
• Storage temperature
  • -40 °C...80 °C
• Storage temperature, max.
  • 80 °C
• Storage temperature, min.
  • -40 °C
