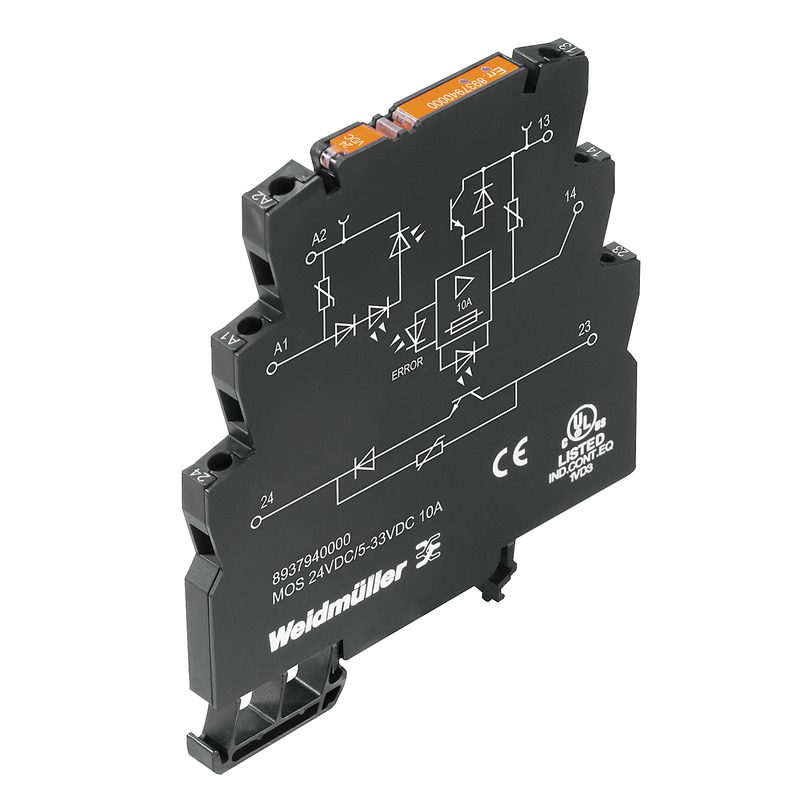

Weidmuller 8937940000

Approvals

• Approvals
  • CE, CULUS, DNV GL, EAC
• ROHS
  • Conform
• UL File Number Search
  • E141197

Classifications

• eClass 10.0
  • 27-37-16-04
• eClass 9.0
  • 27-37-16-04
• eClass 9.1
  • 27-37-16-04
• ETIM 6.0
  • EC001504
• ETIM 7.0
  • EC001504
• UNSPSC
  • 30-21-18-01

Connection Data

• Blade size
  • 0.6 x 3.5 mm
• Clamping range, max.
  • 4 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping range, rated connection
  • 2.5 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.
  • 1.5 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.
  • 0.5 mm²
• Stripping length, rated connection
  • 7 mm
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.4 Nm
• Wire connection cross section, finely stranded, max.
  • 2.5 mm²
• Wire connection cross-section, finely stranded, min.
  • 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
  • 1.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
  • 0.5 mm²
• Wire connection method
  • Screw connection
• Wire cross-section, solid, max.
  • 4 mm²
• Wire cross-section, solid, min.
  • 0.5 mm²

Contact Data

• Contact type
  • 1 NO contact (POWER MOS-FET)

Control Side

• Cut-in / dropout voltage
  • 18 V / 13 V DC
• Power rating
  • 400 mW
• Protective circuit
  • Varistor, Reverse polarity protection
• Rated control voltage
  • 24 V DC ±20 %
• Status indicator
  • Green LED

Dimensions And Weights

• Depth
  • 97.8 mm
• Depth (inches)
  • 3.85 inch
• Height
  • 88.1 mm
• Height (inches)
  • 3.468 inch
• Net weight
  • 38.81 g
• Width
  • 6.1 mm
• Width (inches)
  • 0.24 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

Feedback Output

• Continuous current
  • 50 mA
• Nominal switching voltage
  • 24 VDC ±20%
• Solid-state type
  • Bipolar transistor
• Switch-off delay
  • 5 s

Further Details Of Approvals / Standards

• Certificate no. (cULus)
  • E141197
• Certificate No. (GERMLLOYD)
  • 54853-08
• Standards
  • DIN EN 50178, GL 2003-Vl-Abs. 9, IEC 62314, UL508

General Data

• Colour
  • black
• Rail
  • TS 35
• UL 94 flammability rating
  • V-0

Insulation Coordination

• Clearance and creepage distances for control side - load side
  • > 3 mm
• Dielectric strength for control side - load side
  • 3 KVeff / 1 Min.
• Dielectric strength to mounting rail
  • 4 kVeff / 1 Min.
• Impulse withstand voltage
  • 4 kV (1.2/50 µs)
• Pollution severity
  • 2
• Protection degree
  • IP20
• Rated voltage
  • 300 V
• Surge voltage category
  • III

Load Side

• Continuous current
  • 10 A
• Leakage current
  • < 1 mA
• Load category
  • LC A
• Load side status indicator
  • LED red, short-circuit /overload at the output
• max. switching frequency (DC control voltage)
  • 50 Hz
• Min. switching current
  • 10 mA
• Protective circuit, load side
  • Current sensor, Varistor, Free-wheeling diode
• Pulse load, max. current
  • ≤ 11 A (≤ 200 µs)
• Rated switching current
  • 10 A
• Rated switching voltage
  • 5...33 V DC
• Short-circuit-proof
  • Yes (limited for 4 h / current limitation external < 200 A)
• Switch-off delay
  • typical. 700 µs
• Switch-on delay
  • typ. 250 µs
• Voltage drop at max. load
  • approx. 100 mV

Probability Of Failure

• MTTF
  • 399 Years

Product Information

• Product information
  • The cable lengths must not exceed 30 m.

Ratings Iecex/Atex/Cul

• Certificate no. (cULus)
  • E141197

Temperatures

• Humidity
  • 5 - 93% rel. humidity, Tu = 40°C, no condensation
• Operating temperature
  • -25 °C...60 °C
• Operating temperature, max.
  • 60 °C
• Operating temperature, min.
  • -25 °C
• Storage temperature
  • -40 °C...60 °C
• Storage temperature, max.
  • 60 °C
• Storage temperature, min.
  • -40 °C
