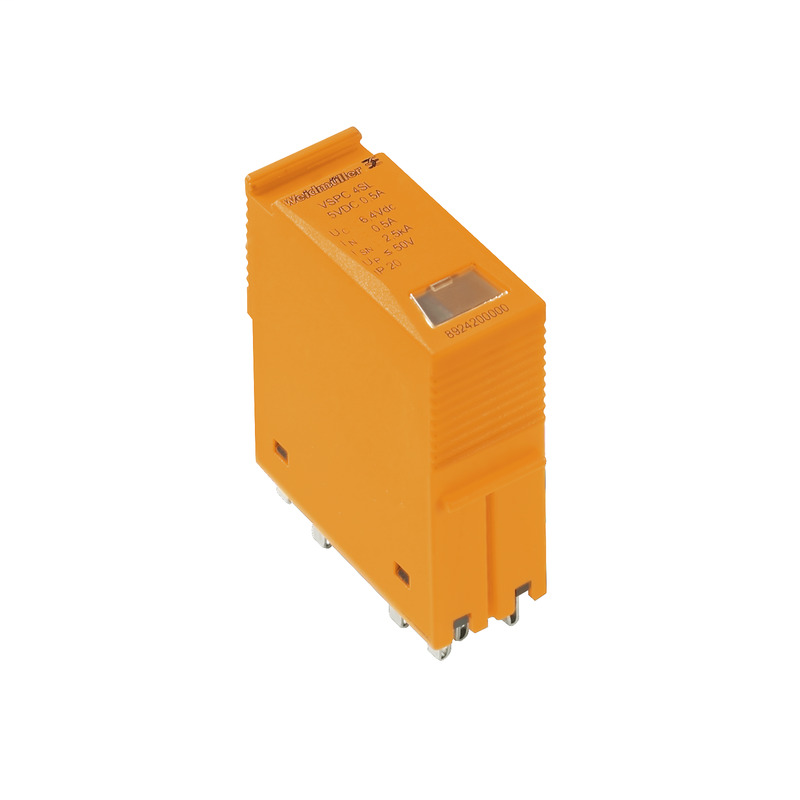

Weidmuller 8924680000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Adapter, 500 mAVSPC GROUND
Weidmuller 8924680000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CSAEX, EAC, UL
- ROHS
- Conform
- UL File Number Search
- E311081
Classifications
- eClass 10.0
- 27-13-08-07
- eClass 9.0
- 27-13-08-07
- eClass 9.1
- 27-13-08-07
- ETIM 6.0
- EC000943
- ETIM 7.0
- EC000943
- UNSPSC
- 30-21-19-21
Csa Protection Data
- Gas group C
- IIB
- Gas group D
- IIA
- Gas groups A, B
- IIC
- Input voltage, max. U
- 360 V
- Internal capacity, max. C
- 0 nF
- Internal inductance, max. L
- 0 µH
Dimensions And Weights
- Depth
- 69 mm
- Depth (inches)
- 2.717 inch
- Height
- 90 mm
- Height (inches)
- 3.543 inch
- Net weight
- 18.2 g
- Width
- 17.8 mm
- Width (inches)
- 0.701 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Colour
- orange
- Design
- Terminal, miscellaneous
- Optical function display
- No
- Protection degree
- IP20
- Segment
- Measurement - Monitoring - Setting
- UL 94 flammability rating
- V-0
- Version
- without warning function / function indicator
Insulation Coordination Acc. To En 50178
- Pollution severity
- 2
- Surge voltage category
- III
Rated Data Iec / En
- Fuse
- 0.5 A
- Max. continuous voltage, Uc (AC)
- 255 V
- Max. continuous voltage, Uc (DC)
- 250 V
- Number of poles
- 1
- Rated current I
- 500 mA
- Volume resistance
- < 0.2 Ω
Rated Data Ul
- Certificate No. (UL)
- E311081
- UL certificate
- UL 497b Certificate
Ratings Iecex/Atex/Cul
- cUL certificate
- cUL Certificate
Temperatures
- Humidity
- 5...96 %
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...80 °C
- Storage temperature, max.
- 80 °C
- Storage temperature, min.
- -40 °C
Tender Specification Sheets
- Long specification
- Earthing plugs for all VSPC BASEs. All connected cables are earthed when plugged in.
- Short specification
- Earthing plugs for all VSPC BASEs.
