Description

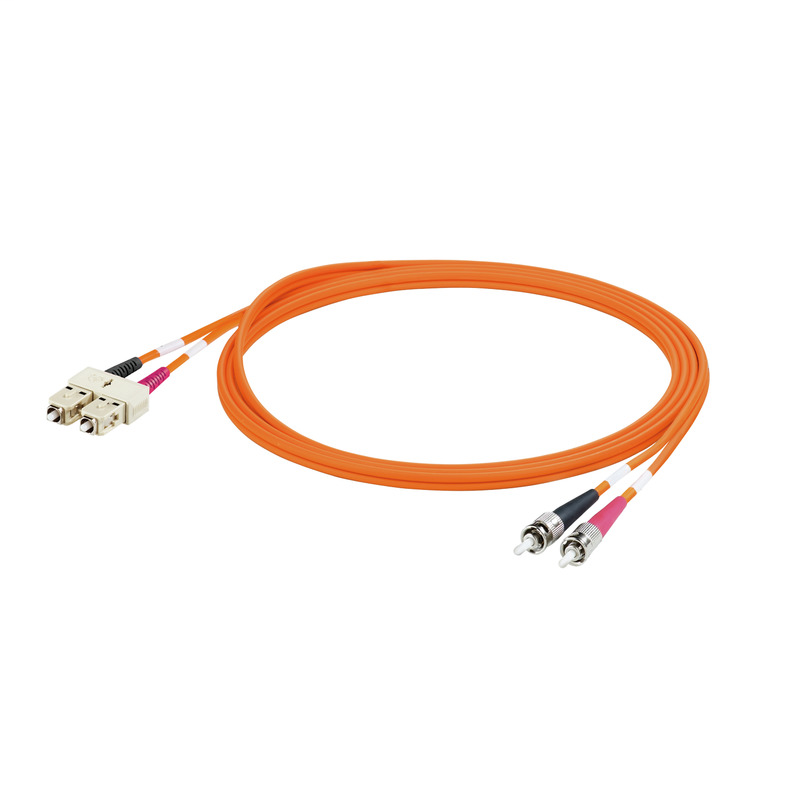

Pre-assembled patch cable, crossover, SC duplex IP 20, ST IP 20, 50 µm, PVC, 2 mIE-FM5Z2VO0002MST0SD0X
Weidmuller 8813390000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Cable Structure
- Cable layout
- ZIPCORD
- Core diameter
- 50 µm
- Material sheath
- PVC
- Sheath diameter
- 3*6 mm
- Sheathing colour
- orange
- Standard designations
- I-V(ZN)Y
Classifications
- eClass 10.0
- 27-06-10-03
- eClass 9.0
- 27-06-10-03
- eClass 9.1
- 27-06-10-03
- ETIM 6.0
- EC002607
- ETIM 7.0
- EC002607
- UNSPSC
- 30-21-18-01
Dimensions And Weights
- Length
- 2 m
- Length (inches)
- 0.079 inch
- Net weight
- 54 g
Fibre-Optic
- Attenuation
- ≤ 2.7 dB/km at 850 nm, ≤ 0.7 dB/km at 1300 nm
- Bandwidth
- ≥ 600 MHz*km at 850 nm, ≥ 1200 MHz*km at 1300 nm
- Fibre type
- GOF, Multimode, OM2
Mechanical And Material Properties Of Cable
- Min. bending radius, once only
- 30 mm
- Min. bending radius, repetitive
- 60 mm
Plug
- Connector left
- SC duplex IP 20
- Connector right
- ST IP 20
Standards
- Connector standard
- IEC 61754-2
Temperatures
- Installation temperature
- -5 °C...50 °C
- Operating temperature
- -5 °C...75 °C
- Operating temperature, max.
- 75 °C
- Operating temperature, min.
- -5 °C
- Storage temperature
- -25 °C...75 °C
- Storage temperature, max.
- 75 °C
- Storage temperature, min.
- -25 °C
