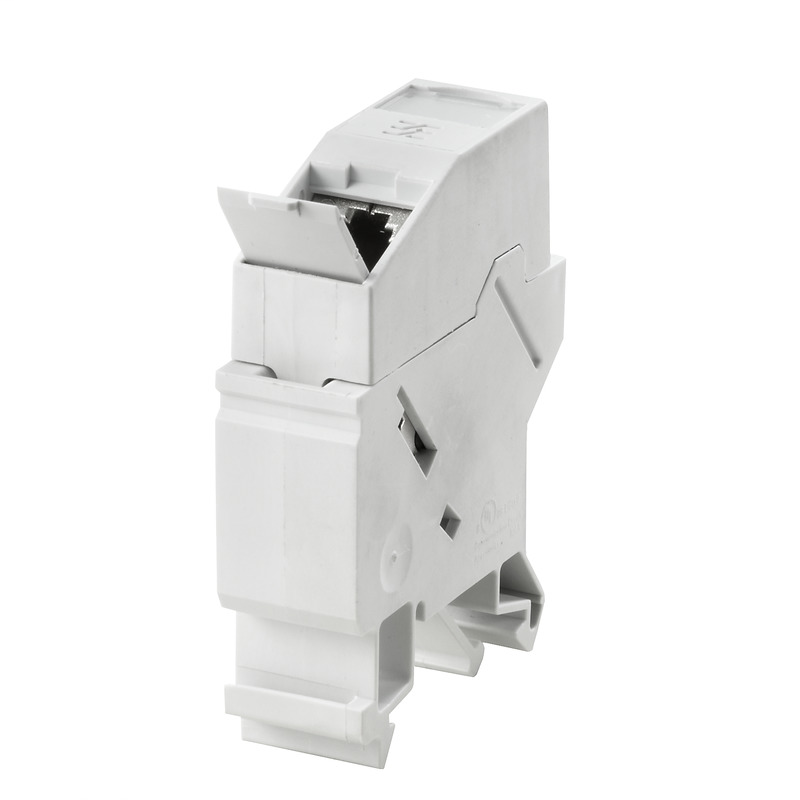

Weidmuller 8808360000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Weidmuller 8808360000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CULUS, DNV GL
- ROHS
- Conform
- UL File Number Search
- E316369
Classifications
- eClass 10.0
- 27-44-03-20
- eClass 9.0
- 27-44-03-20
- eClass 9.1
- 19-17-01-25
- ETIM 6.0
- EC000313
- ETIM 7.0
- EC000313
- UNSPSC
- 43-17-27-10
Dimensions And Weights
- Net weight
- 53 g
Electrical Properties
- Contact resistance
- ≤ 20 mΩ
- Current-carrying capacity at 50 °C
- 1 A
- Dielectric strength, contact / contact
- ≥ 1000 V DC
- Dielectric strength, contact / shield
- ≥ 1500 V DC
- Insulation strength
- 500 MΩ
- PoE / PoE+
- conforming to IEEE 802.3at
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Category
- Cat.6A / Class EA (ISO/IEC 11801 2010)
- Colour
- Light Grey
- Conductor connection cross-section, flexible (AWG)
- AWG 26...AWG 22
- Conductor connection cross-section, solid (AWG)
- AWG 24...AWG 22
- Configuration
- 1 TE pitch dimension acc. to DIN 43880. insta-compatibleInstallation flange with mounting frame
- Connection 1
- RJ45
- Connection 2
- IDC
- Connection diameter, flexible
- 0.48...0.64 mm
- Connection diameter, solid
- 0.4...0.64 mm
- Description of article
- RJ45 module
- Housing main material
- PA 66, UL 94: V-0
- Insulation cross-section, max.
- 1.6 mm
- Insulation cross-section, min.
- 0.7 mm
- Plugging cycles
- 750
- Protection degree
- IP20
- Type of mounting
- TS 35
- Wiring
- EIA/TIA T568 A, EIA/TIA T568 B, PROFINET
Standards
- Certificate no. (cULus)
- E316369
- Certificate No. (GERMLLOYD)
- 33451-06
- Connector standard
- IEC 60603-7-5
Temperatures
- Operating temperature
- -25 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -25 °C
