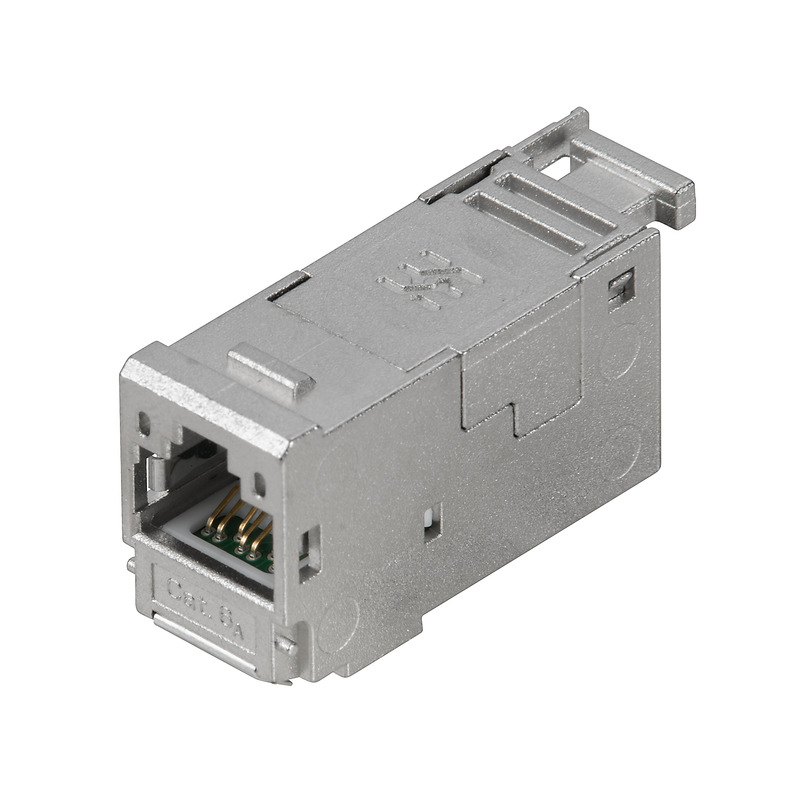

Weidmuller 8808330000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Flange insert, Cat.6A / Class EA (ISO/IEC 11801 2010)IE-XRJ45/IDC
Weidmuller 8808330000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- DNV GL
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-44-03-90
- eClass 9.0
- 27-44-03-90
- eClass 9.1
- 27-44-03-90
- ETIM 6.0
- EC001121
- ETIM 7.0
- EC001121
- UNSPSC
- 43-17-27-10
Dimensions And Weights
- Height
- 23.4 mm
- Height (inches)
- 0.921 inch
- Length
- 43.8 mm
- Length (inches)
- 1.724 inch
- Net weight
- 32 g
- Wall thickness, max.
- 1.55 mm
- Wall thickness, min.
- 1.45 mm
- Width
- 14.7 mm
- Width (inches)
- 0.579 inch
Electrical Properties
- Contact resistance
- ≤ 20 mΩ
- Dielectric strength, contact / contact
- ≥ 1000 V DC
- Insulation strength
- 500 MΩ
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Category
- Cat.6A / Class EA (ISO/IEC 11801 2010)
- Conductor connection cross-section, flexible
- 0.14...0.35 mm²
- Conductor connection cross-section, flexible (AWG)
- AWG 26...AWG 22
- Conductor connection cross-section, solid
- 0.13...0.32 mm²
- Conductor connection cross-section, solid (AWG)
- AWG 26...AWG 22
- Connection 1
- IDC
- Connection 2
- RJ45 connection
- Connection diameter, flexible
- 0.48...0.76 mm
- Connection diameter, solid
- 0.41...0.64 mm
- Housing main material
- Zinc diecast
- Insertion force
- 20 N
- Insulation cross-section, max.
- 1.8 mm
- Wire connection cross section, finely stranded, max.
- 0.355 mm²
- Wire connection cross-section, finely stranded, min.
- 0.141 mm²
- Wire cross-section, solid, max.
- 0.324 mm²
- Wire cross-section, solid, min.
- 0.128 mm²
- Wiring
- TIA-568A, TIA-568B, PROFINET
Standards
- Certificate No. (GERMLLOYD)
- 33451-06
- Connector standard
- IEC 60603-7-51
- Generic communication cable facilities
- ISO/IEC 11801
Temperatures
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
- Storage temperature, max.
- 70 °C
- Storage temperature, min.
- -40 °C
