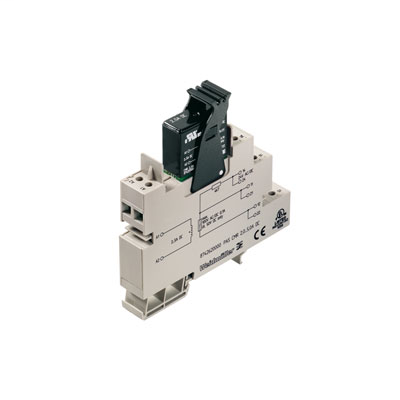

Weidmuller 8742610000

Approvals

• Approvals
  • CE, CULUS
• ROHS
  • Conform
• UL File Number Search
  • E141197

Classifications

• eClass 10.0
  • 27-21-01-22
• eClass 9.0
  • 27-21-01-22
• eClass 9.1
  • 27-21-01-22
• ETIM 6.0
  • EC002654
• ETIM 7.0
  • EC002654
• UNSPSC
  • 30-21-19-17

Connection Data

• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 2.5 mm²
• Clamping range, rated connection
  • 1.5 mm²
• Type of connection
  • Screw connection

Dimensions And Weights

• Depth
  • 95 mm
• Depth (inches)
  • 3.74 inch
• Length
  • 92 mm
• Length (inches)
  • 3.622 inch
• Net weight
  • 69.6 g
• Weight
  • 70 g
• Width
  • 15.3 mm
• Width (inches)
  • 0.602 inch

General Data

• Configuration
  • none
• Galvanic isolation
  • Without isolation
• Rail
  • TS 35

Input

• Input current
  • 0.5...2.5 A DC
• Input resistance, current
  • < 50 mΩ
• Pulse duration
  • min. 1 ms

Insulation Coordination

• Clearance & creepage distances
  • ≥ 5 mm (grout encapsulated)
• EMC standards
  • EN 55011, EN 61000-6-1, 2, 3, 4
• Galvanic isolation
  • Without isolation
• Impulse withstand voltage
  • 6 kV
• Insulation voltage
  • 4 kVeff / 1 min.
• Pollution severity
  • 2
• Rated voltage
  • 300 V
• Surge voltage category
  • III

Output (Digital)

• Contact material
  • RH/Rd (Reed contact)*
• Continuous current
  • 100 mA
• Max. switching voltage, AC
  • 100 V
• Max. switching voltage, DC
  • 100 V

Ratings Iecex/Atex/Cul

• Certificate no. (cULus)
  • E141197

Temperatures

• Humidity
  • 5-95% relative humidity, Tu = 40°C, without condensation
• Operating temperature
  • 0 °C...55 °C
• Operating temperature, max.
  • 55 °C
• Operating temperature, min.
  • 0 °C
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C

Tender Specification Sheets

• Long specification
  • Limit-value monitoring of DC currents up to 2.5 A with switching outputlimit-value monitoring component for measuring DC currents 0.5... 2.5 A withswitching output. The monitoring unit is designed so that it can be plugged onto the mounting base.Pluggable unit on base, for mounting on TS35 DIN rail Dimensions: L/W/H 92/ 15.3/ 95 mmScrew connection / Nominal cross-section 2.5 mm2Protection degree: IP 20Input                         0.5...2.5 A DC / Reed relay coilSwitch-on threshold < 500 mASwitch-off threshold      < 50 mAOutput                                             1 NO / Reed contactSwitching current max 100 mA AC/DCSwitching voltage 100 V AC / 50 V DCAmbient temperature range 0 °C...+55 °C Secure isolation                   EN 50178, 2-way isolation up to 6 kVTest voltage                               4 kVeff / 1 min. input against outputRated voltage                                          300 V AC/DC at overvoltage category III and pollution degree 2Approvals cULusType                                                            PAS CMR 0.5...2.5 A DC
• Short specification
  • Limit-value monitoring of DC currents up to 2.5 A with switching outputlimit-value monitoring component for measuring DC currents 0.5... 2.5 A withswitching output. The monitoring unit is designed so that it can be plugged onto the mounting base.
